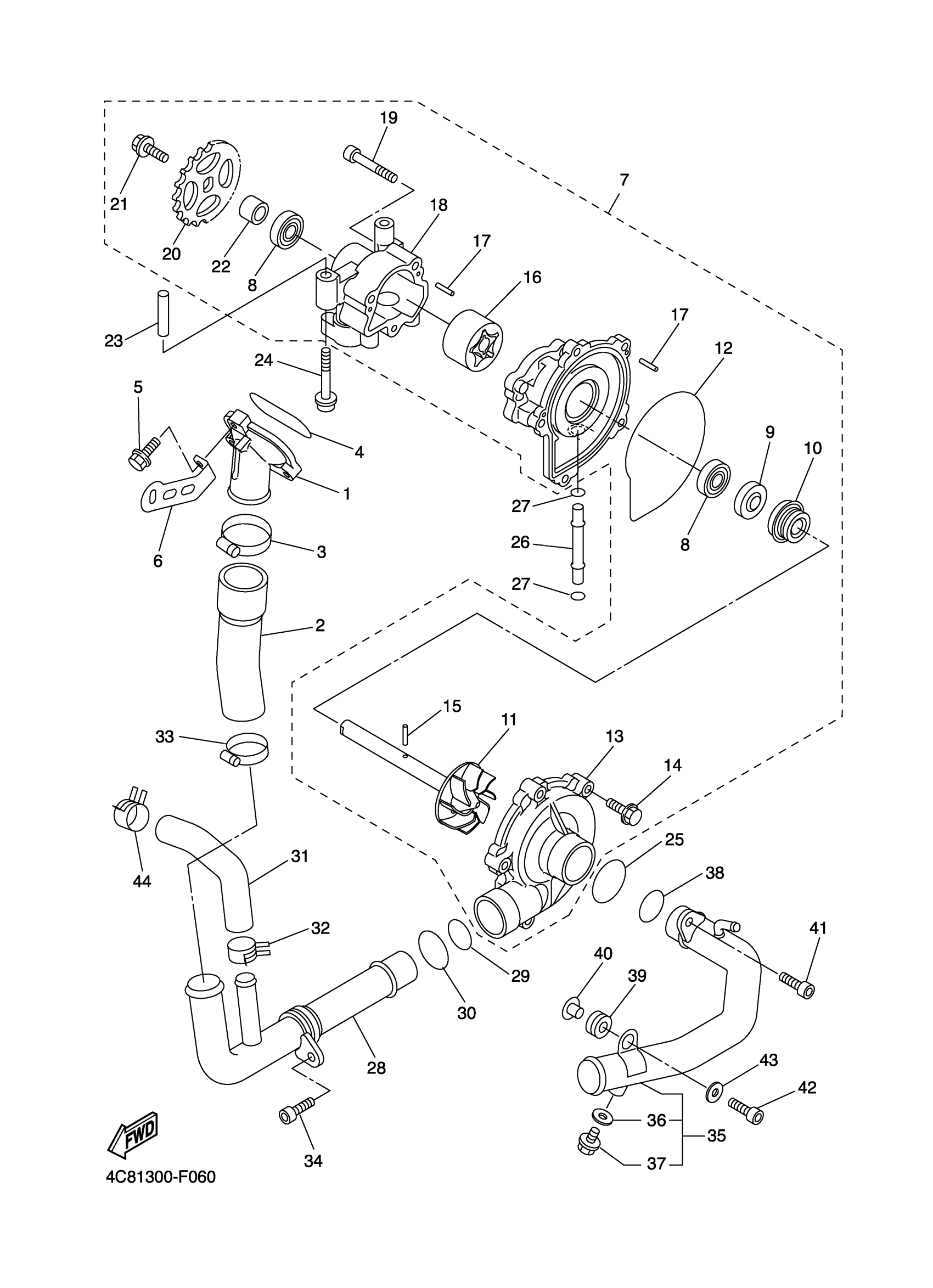

Yamaha YZFR1XR (YZFR1) 4C8B1 2008 WATER PUMP Diagram

#

Description
Price

1

JOINT 1

5VY-12469-00-00

$76.99

2

HOSE 1

5VY-12576-00-00

$28.99

3

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

4

O-RING(52H)

93210-47675-00

$6.99

5

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

6

STAY 1

5VY-12637-00-00

Unavailable

7

WATER PUMP ASSY

4C8-12420-21-00

$551.99

8

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

9

OIL SEAL

93102-12372-00

$12.49

10

SEAL, MECHANICAL

4C8-12438-00-00

$49.99

11

IMPELLER SHAFT ASSY

5VY-12450-11-00

$96.99

12

O-RING

4XV-12439-00-00

$15.49

13

COVER, HOUSING

5VY-12422-00-00

$82.99

14

BOLT, FLANGE

90105-06065-00

$3.81

15

PIN,DOWEL

93603-17070-00

$4.14

16

ROTOR ASSY 1

5VY-13310-10-00

Unavailable

17

PIN,DOWEL (603)

93603-12007-00

Unavailable

18

HOUSING, ROTOR

5VY-13336-00-00

Unavailable

19

TORNILLO ALLEN

91312-06040-00

Unavailable

20

SPROCKET, DRIVEN

5VY-13355-00-00

Unavailable

21

BOLT, FLANGE

90105-06066-00

Unavailable

22

. WASHER

5VY-12456-10-00

Unavailable

23

PIN, DOWEL

91808-30031-00

Unavailable

24

BOLT, HEXAGON SOCKET HEAD

90110-06166-00

Unavailable

25

O-RING

93210-357A2-00

Unavailable

26

PIPE 5

4XV-12485-00-00

Unavailable

27

O-RING(26H)

93210-06667-00

Unavailable

28

PIPE 1

5VY-12481-11-00

Unavailable

29

O-RING

93210-235A1-00

Unavailable

30

O-RING(1KT)

93210-27778-00

Unavailable

31

HOSE 5

5VY-12588-00-00

Unavailable

32

CLIP

90467-200A0-00

Unavailable

33

HOSE CLAMP ASSY

90450-32003-00

Unavailable

34

BOLT,SOCKET

91317-06016-00

Unavailable

35

PIPE 4

4C8-12484-00-00

Unavailable

36

GASKET 256113960000

90430-06014-00

Unavailable

37

SCREW, HEXAGON

90153-06002-00

Unavailable

38

O-RING

93210-235A1-00

Unavailable

39

GROMMET

90480-12010-00

Unavailable

40

COLLAR

90387-06112-00

Unavailable

41

BOLT,SOCKET

91317-06016-00

Unavailable

42

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

43

WASHER, PLATE

90201-06079-00

Unavailable

44

CLIP

90467-200A0-00

Unavailable
