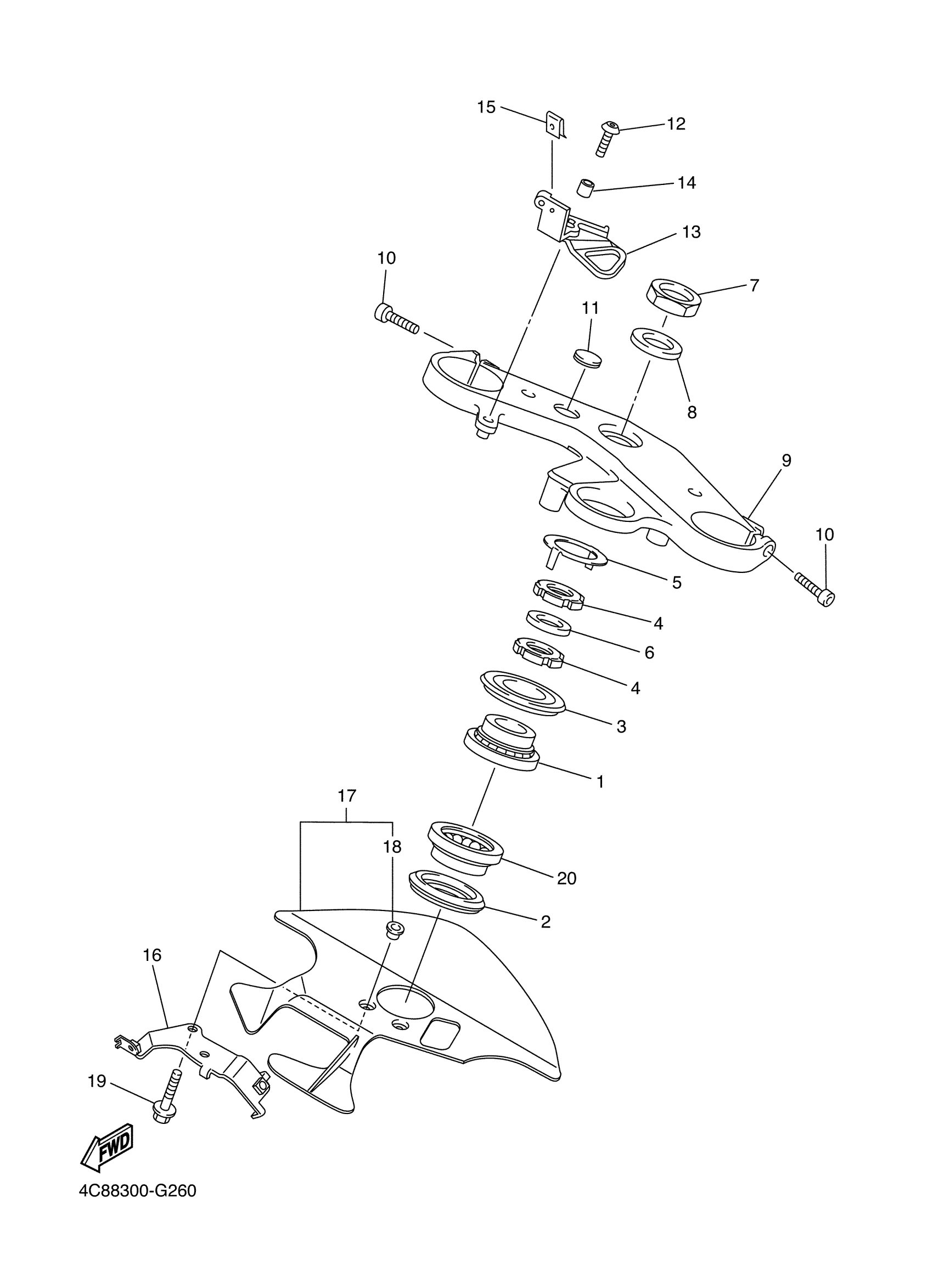

Yamaha YZFR1XR (YZFR1) 4C8B1 2008 STEERING Diagram

#

Description
Price

1

BEARING(3FV)

93399-99932-00

$51.86

2

SEAL, STEERING

3FV-23462-00-00

$20.00

3

COVER, BALL RACE 1

4XV-23415-01-00

$19.18

4

NUT

90179-30691-00

$26.23

5

WASHER, SPECIAL

4XV-23418-00-00

$14.36

6

WASHER, PLATE

90202-30235-00

$5.66

7

NUT

90170-28419-00

$32.62

8

WASHER, PLATE

90201-281U8-00

$7.91

9

CROWN, HANDLE

4C8-23435-10-00

Unavailable

10

BOLT,SOCKET

91314-08030-00

$2.14

11

EMBLEM

4XV-2341B-00-00

$21.57

12

BOLT

90111-06041-00

$5.86

13

STAY

5VY-26292-12-00

Unavailable

14

COLLAR

90387-06057-00

$5.75

15

NUT, SPRING

90183-050A0-00

$4.15

16

BRACKET, HORN

4C8-23377-00-00

Unavailable

17

STRG, COVER. ASSY

4C8-23808-00-00

Unavailable

18

SPACER (25G)

90560-06244-00

Unavailable

19

BOLT, FLANGE

90105-06109-00

Unavailable

20

BEARING

93399-99957-00

Unavailable
