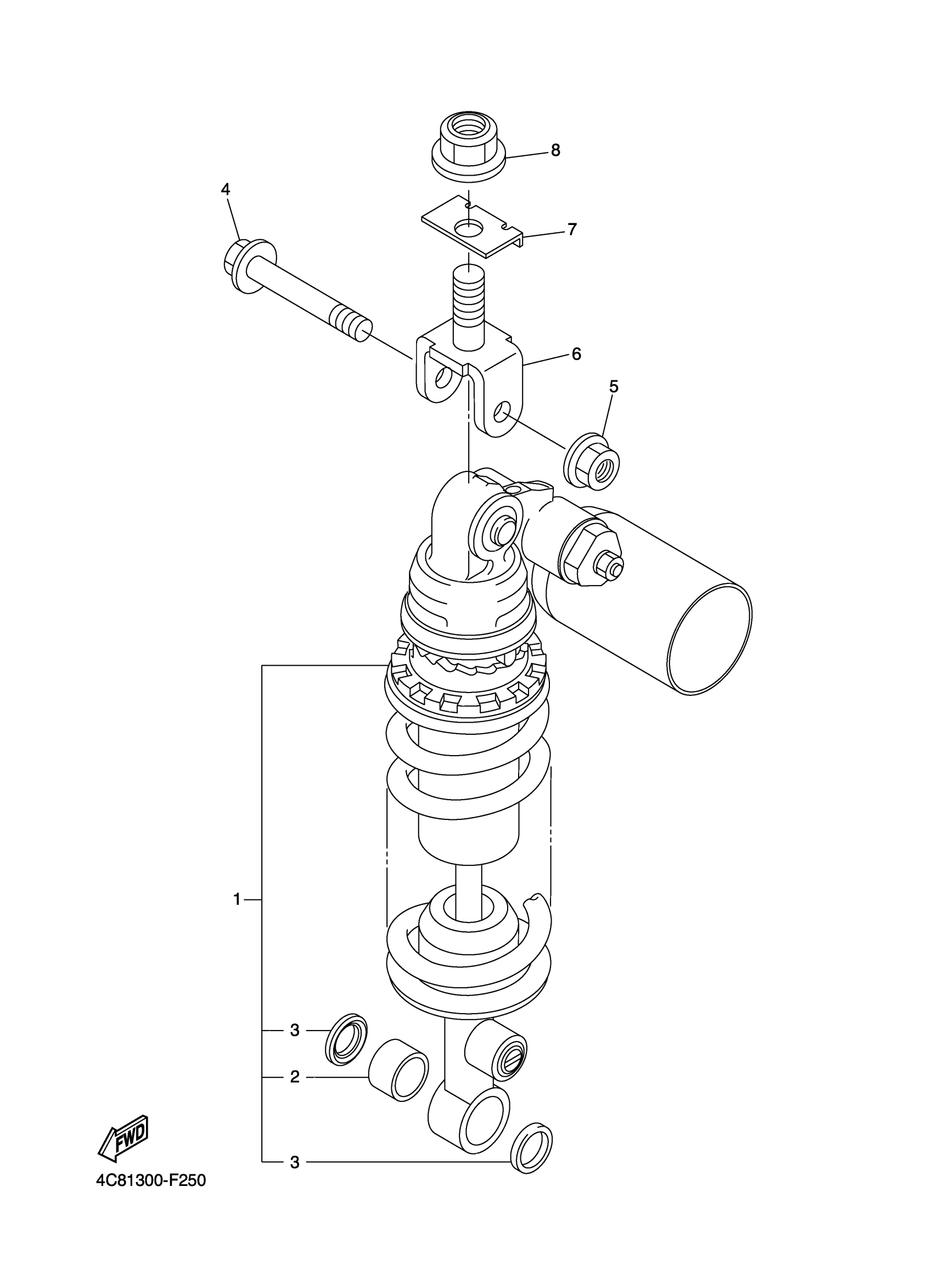

Yamaha YZFR1XR (YZFR1) 4C8B1 2008 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY, REAR

4C8-22210-11-00

Unavailable

1

SHOCK ABSORBER ASSY, REAR

4C8-22210-40-00

Unavailable

1

SHOCK ABSORBER ASSY, REAR

4C8-22210-70-00

Unavailable

2

BEARING

93315-31758-00

$32.40

3

OIL SEAL

93109-17071-00

$6.29

4

BOLT, WASHER BASED

90105-10018-00

$16.56

5

NUT, S/L FLANGE

95602-10200-00

$2.14

6

BRACKET, UPPER

4C8-22219-00-00

$52.94

7

SHIM

4C8-22127-00-00

Unavailable

8

NUT, U FLANGE

95602-14200-00

$9.25
