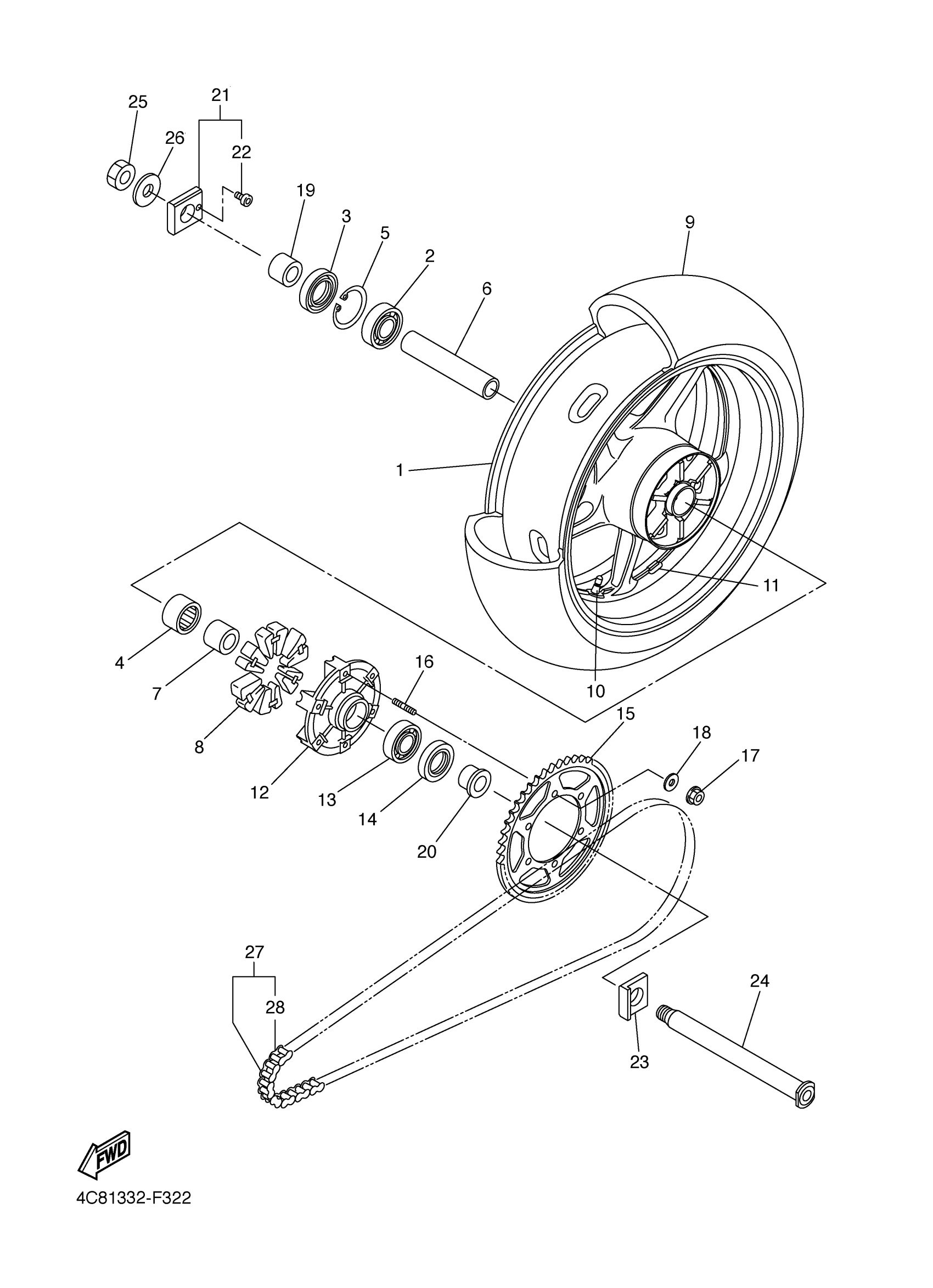

Yamaha YZFR1XR (YZFR1) 4C8B1 2008 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

5VY-25338-00-98

$880.99

1

CAST WHEEL, REAR

5VY-25338-00-P2

Unavailable

2

BEARING(3JN)

93306-20531-00

$50.99

3

OIL SEAL

93106-40013-00

$14.99

4

BEARING

93317-43580-00

$73.99

5

CIRCLIP

93420-61M07-00

Unavailable

6

SPACER, BEARING

5PW-25317-00-00

$57.99

7

COLLAR, WHEEL

4XV-25383-00-00

Unavailable

8

DAMPER

2C0-25364-00-00

$24.99

9

TIRE (190/50 ZR17 M/C 73W)

94119-17065-00

Unavailable

9

TIRE (190/50 ZR17M/C 73W PILOT)

94119-17066-00

Unavailable

10

VALVE, RIM(2GH)

93900-00030-00

$16.99

11

BALANCER, WHEEL

5MT-25398-00-00

$17.49

11

BALANCER, WHEEL

5MT-25398-10-00

$17.49

11

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

12

CLUTCH, HUB

5SL-25366-00-00

Unavailable

13

BEARING(3JN)

93306-20531-00

$50.99

14

OIL SEAL

93106-40013-00

$14.99

15

SPROCKET, DRIVEN (45T)

5VY-25445-20-00

Unavailable

16

BOLT, STUD(1TX)

90116-10485-00

Unavailable

17

NUT, SELF-LOCKING

90185-10009-00

Unavailable

18

WASHER, PLATE

90201-10021-00

Unavailable

19

COLLAR

90387-28016-00

Unavailable

20

COLLAR

90387-28019-00

Unavailable

21

PULLER, CHAIN 1

4C8-25388-00-00

Unavailable

22

BOLT

91312-05008-00

Unavailable

23

PULLER, CHAIN 2

5VY-25389-01-00

Unavailable

24

AXLE, WHEEL

4C8-25381-00-00

Unavailable

25

NUT, SELF-LOCKING

90185-24007-00

Unavailable

26

WASHER, PLATE

90201-25020-00

Unavailable

27

CHAIN (DID50VA8-118L)

94582-10118-00

Unavailable

28

JOINT, CHAIN

94682-05031-00

Unavailable

29

COLLAR

90387-28019-00

Unavailable
