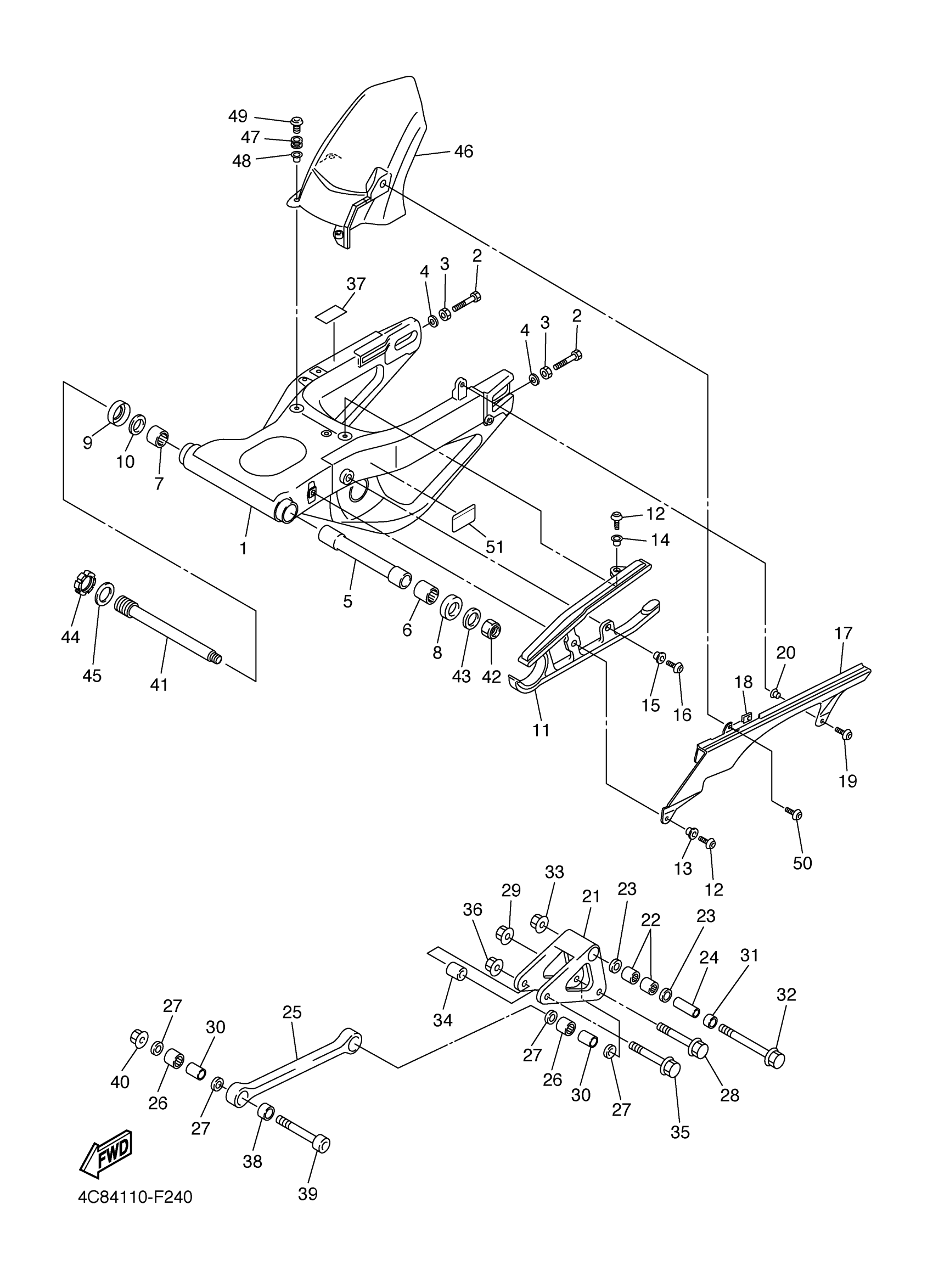

Yamaha YZFR1XR (YZFR1) 4C8B1 2008 REAR ARM Diagram
#
1
REAR ARM COMP.
4C8-22110-10-00
Unavailable
16
BOLT, BUTTON
92017-06020-00
Unavailable
17
CASE, CHAIN
5VY-22311-01-00
Unavailable
18
NUT, SPRING
90183-050A6-00
Unavailable
19
SCREW(3XV)
90149-06298-00
Unavailable
20
COLLAR (3L1)
90387-07717-00
Unavailable
21
ARM, RELAY
4C8-2217A-01-00
Unavailable
22
BEARING
93315-31758-00
Unavailable
23
OIL SEAL
93109-17071-00
Unavailable
24
COLLAR
90387-1012B-00
Unavailable
25
ARM 1
4C8-2217M-00-00
Unavailable
26
BEARING
93315-31758-00
Unavailable
27
OIL SEAL
93109-17071-00
Unavailable
28
BOLT, WASHER BASED
90105-10017-00
Unavailable
29
NUT, S/L FLANGE
95602-10200-00
Unavailable
30
COLLAR
90387-1012A-00
Unavailable
31
COLLAR
90387-1013U-00
Unavailable
32
BOLT, FLANGE
90105-10021-00
Unavailable
33
NUT, S/L FLANGE
95602-10200-00
Unavailable
34
COLLAR
90387-1012A-00
Unavailable
35
BOLT, WASHER BASED
90105-10017-00
Unavailable
36
NUT, S/L FLANGE
95602-10200-00
Unavailable
37
TAPE, 1
2C0-21566-00-00
Unavailable
38
COLLAR
90387-1013U-00
Unavailable
39
BOLT, HEXAGON SOCKET HEAD
90110-10011-00
Unavailable
40
NUT, S/L FLANGE
95602-10200-00
Unavailable
41
SHAFT, PIVOT
4C8-22141-00-00
Unavailable
42
NUT, SELF-LOCKING
90185-20008-00
Unavailable
43
WASHER, PLATE
90201-20026-00
Unavailable
44
NUT
4C8-22252-00-00
Unavailable
45
WASHER, PLATE
90201-30016-00
Unavailable
46
REAR FENDER COMP.
4C8-21650-00-00
Unavailable
47
GROMMET
90480-12005-00
Unavailable
48
COLLAR
90387-06057-00
Unavailable
49
SCREW(4DN)
90149-06302-00
Unavailable
50
BOLT
90111-05002-00
Unavailable
51
LABEL, TIRE
5VY-21668-00-00
Unavailable
