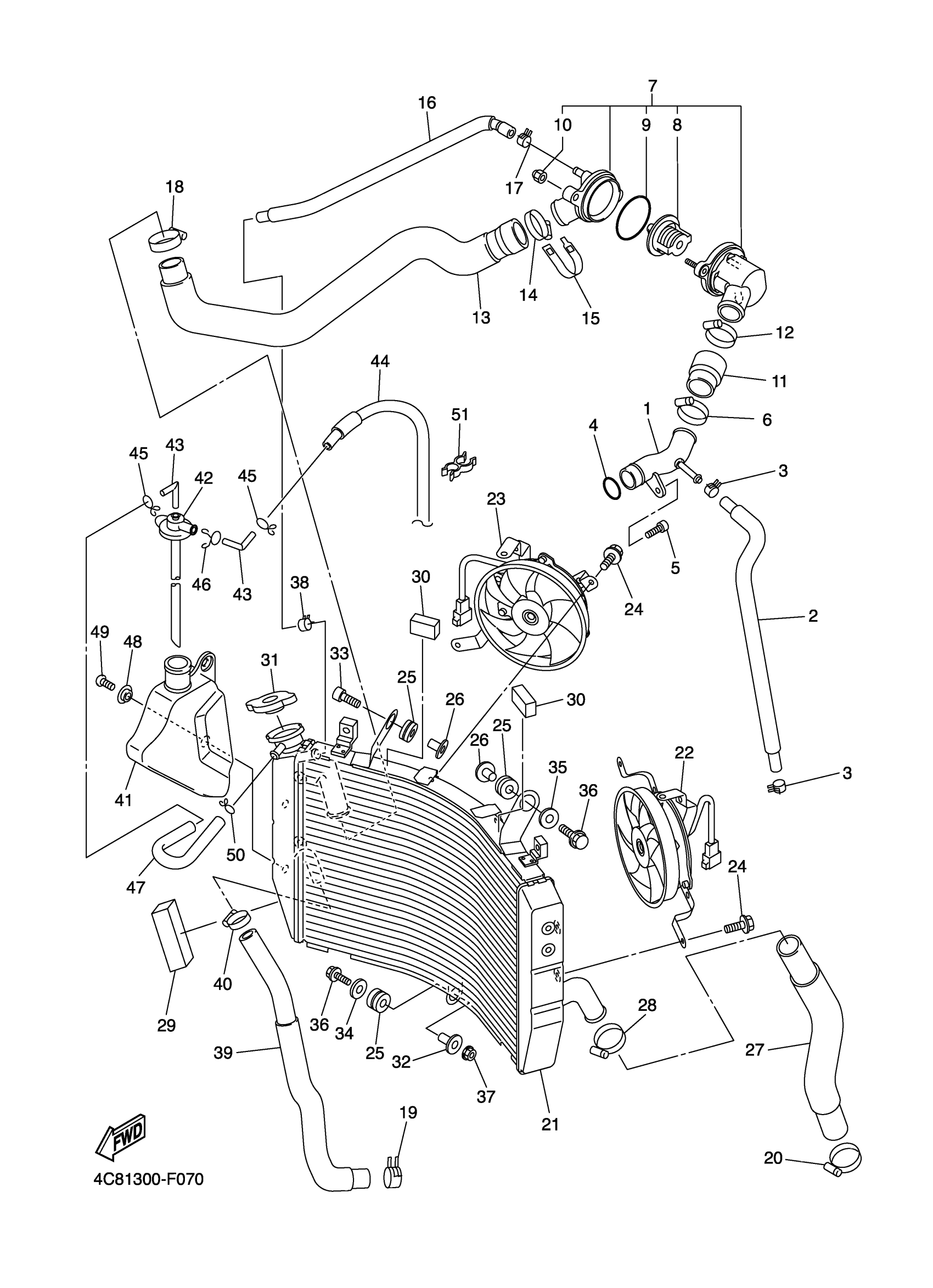

Yamaha YZFR1XR (YZFR1) 4C8B1 2008 RADIATOR HOSE Diagram

#

Description
Price

1

PIPE 5

4C8-12485-00-00

Unavailable

2

HOSE 1

4C8-1243A-00-00

Unavailable

3

CLIP(3BM)

90467-10135-00

$8.49

4

O-RING

93210-235A1-00

$7.49

5

BOLT (33M)

91312-06014-00

$5.60

6

HOSE CLAMP ASSY

90450-35001-00

$5.60

7

THERMOSTAT ASSY

5VY-12410-11-00

$114.99

8

THERMOSTAT

5LP-12411-01-00

$38.99

9

O-RING (620)

93210-49046-00

$7.49

10

NUT, CROWN

90176-06014-00

$7.49

11

HOSE 4

4C8-12579-00-00

$18.49

12

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

13

HOSE 2

4C8-12577-00-00

Unavailable

14

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

15

COVER 1

5GV-1246A-00-00

Unavailable

16

HOSE 8

4C8-12552-00-00

Unavailable

17

CLIP (7K7)

90467-11044-00

Unavailable

18

HOSE CLAMP ASSY

90450-35001-00

$5.60

19

CLIP

90467-200A0-00

Unavailable

20

HOSE CLAMP ASSY

90450-32003-00

Unavailable

21

RADIATOR ASSY

4C8-12461-00-00

Unavailable

22

BLOWER ASSY

4C8-12405-00-00

Unavailable

23

BLOWER ASSY

4C8-12405-10-00

Unavailable

24

BOLT, BLOWER HOLDING

5GJ-12675-00-00

Unavailable

25

GROMMET (29L)

90480-15363-00

Unavailable

26

COLLAR

90387-0614M-00

Unavailable

27

HOSE 7

4C8-12551-00-00

Unavailable

28

HOSE CLAMP ASSY

90450-35001-00

$5.60

29

DAMPER, AIR SHROUD 2

4C8-12659-00-00

Unavailable

30

DAMPER, AIR SHROUD 3

4C8-12668-00-00

Unavailable

31

CAP, RADIATOR

5SL-12462-01-00

Unavailable

32

COLLAR

90387-0614M-00

Unavailable

33

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

34

WASHER, PLATE(36Y)

90201-063J2-00

Unavailable

35

WASHER PLATE 248217570000

90201-06074-00

Unavailable

36

BOLT, FLANGE

95817-06030-00

Unavailable

37

NUT,SELF-LOCKING

95607-06200-00

Unavailable

38

CLIP(3BM)

90467-10135-00

$8.49

39

HOSE 6

4C8-12589-00-00

Unavailable

40

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

41

TANK, RECOVERY

4C8-21871-00-00

Unavailable

42

CAP

2C0-21875-00-00

Unavailable

43

ELBOW

26H-21828-00-00

Unavailable

44

PIPE 1

4C8-21816-00-00

Unavailable

45

CLIP 101235600

90467-08003-00

Unavailable

46

CLIP

90467-10M04-00

Unavailable

47

HOSE,3

4C8-1243F-00-00

Unavailable

48

COLLAR (8G8)

90387-06681-00

Unavailable

49

BOLT, BUTTON HEAD

92012-06014-00

Unavailable

50

CLIP (16G)

90467-08021-00

Unavailable

51

CLAMP

90464-11M24-00

Unavailable
