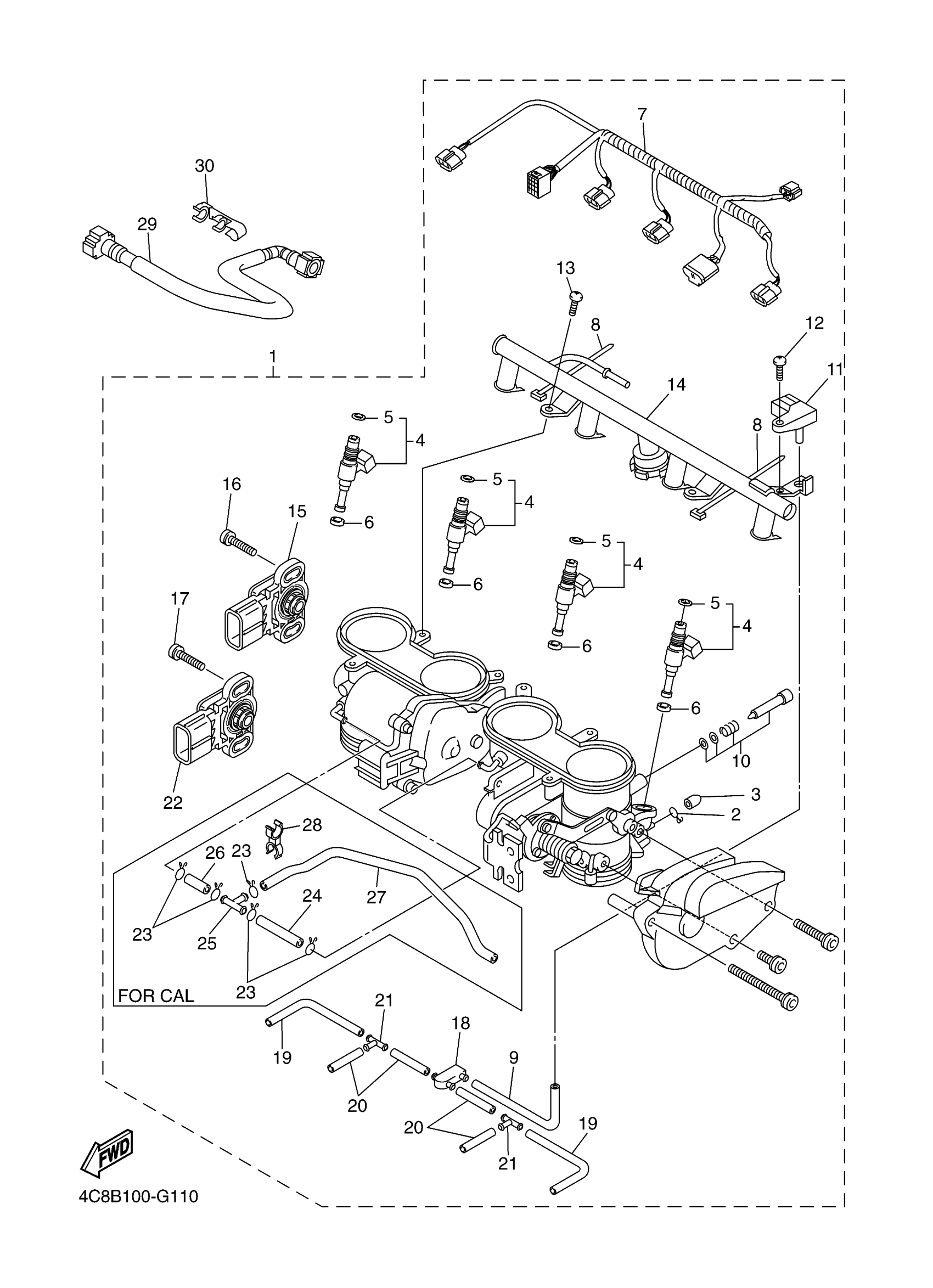

Yamaha YZFR1XR (YZFR1) 4C8B1 2008 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

4C8-13750-20-00

Unavailable

1

THROTTLE BODY ASSY

4C8-13750-30-00

Unavailable

2

CLIP, PIPE

8A7-14139-00-00

$8.99

3

CAP

895-14169-00-00

$5.49

4

INJECTOR ASSY

4C8-13761-00-00

$171.99

5

O-RING

5PS-14147-00-00

$13.49

6

GASKET, MANIFOLD

8FP-13556-00-00

$13.99

7

EXTENSION, WIRE HARNESS

4C8-82386-00-00

Unavailable

8

CLIP

4KM-14137-00-00

$5.49

9

HOSE

5JW-14987-00-00

Unavailable

10

PILOT SCREW SET

2C0-14105-00-00

$34.99

11

SENSOR, PRESSURE

1WS-82380-00-00

$193.99

12

SCREW

2C0-14216-00-00

$3.28

13

SCREW, PAN

98517-06012-00

$3.78

14

PIPE INLET ASSEMBLY

4C8-13930-00-00

Unavailable

15

THROTTLE SENSOR AS

13S-85885-01-00

Unavailable

16

SCREW

8CC-14216-10-00

Unavailable

17

SCREW

5FL-14216-00-00

Unavailable

18

NIPPLE

3XV-14251-00-00

Unavailable

19

PIPE

5FL-14349-10-00

Unavailable

20

PIPE

5JW-14396-00-00

Unavailable

21

. PIPE, JOINT 1

68V-24376-00-00

Unavailable

22

ACCELERATOR SENSOR ASSY.

13S-85884-01-00

Unavailable

23

CLIP

90467-090A2-00

Unavailable

24

. PIPE

4C8-14465-10-00

Unavailable

25

WAY (70R)

90413-08012-00

Unavailable

26

. PIPE

4C8-14466-10-00

Unavailable

27

. PIPE

4C8-1443J-00-00

Unavailable

28

CLAMP

90464-09012-00

Unavailable

29

PIPE, FUEL 1

4C8-13971-00-00

Unavailable

30

CLAMP

90464-16005-00

Unavailable
