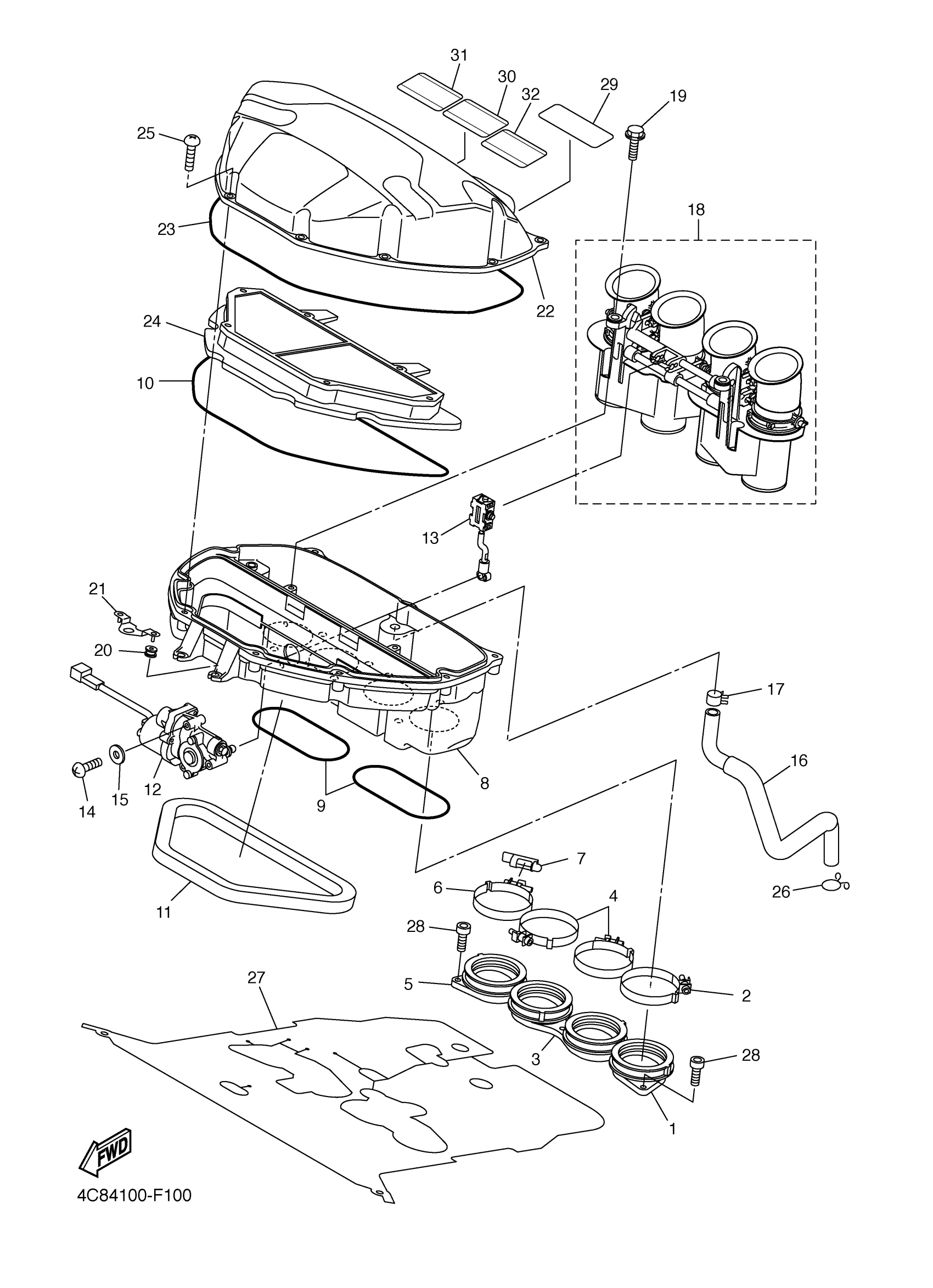

Yamaha YZFR1XR (YZFR1) 4C8B1 2008 INTAKE Diagram

#

Description
Price

1

JOINT

4C8-13595-00-00

Unavailable

2

HOSE CLAMP ASSY

90450-62004-00

Unavailable

3

JOINT, CARBURETOR 2

4C8-13596-00-00

Unavailable

4

HOSE CLAMP ASSY

90450-62004-00

Unavailable

5

JOINT, CARBURETOR 4

4C8-13598-00-00

Unavailable

6

HOSE CLAMP ASSY

90450-62004-00

Unavailable

7

COVER 1

2C0-13881-00-00

$7.99

8

CASE, AIR CLEANER 1

4C8-14411-00-00

Unavailable

9

SEAL

4C8-14462-00-00

$11.99

10

SEAL

51Y-14462-00-00

$18.49

11

SEAL

4C8-14467-00-00

Unavailable

12

GEARED MOTOR COMP.

4C8-85850-00-00

Unavailable

13

SHAFT ASSY

4C8-14490-00-00

Unavailable

14

SCREW, PAN

98507-05035-00

$8.49

15

WASHER, PLAIN (646)

92990-05600-00

$0.80

16

PIPE, BREATHER 2

4C8-15393-00-00

Unavailable

17

CLIP

90467-140A5-00

Unavailable

18

JOINT ASSY

4C8-1440B-00-00

Unavailable

19

SCREW, WITH WASHER

90159-05035-00

Unavailable

20

GROMMET (3Y2)

90480-08264-00

Unavailable

21

STAY 1

4C8-14498-00-00

Unavailable

22

CASE, AIR CLEANER 2

4C8-14421-00-00

Unavailable

23

SEAL

4C8-14452-00-00

Unavailable

24

ELEMENT, AIR CLEANER

4C8-14451-01-00

Unavailable

25

SCREW, BIND

98902-05020-00

Unavailable

26

CLIP (371)

90467-14015-00

Unavailable

27

PROTECTOR, HEAT

4C8-12682-01-00

Unavailable

28

BOLT(3MA)

91312-06016-00

Unavailable

29

PLATE, EPA (CALIFORNIA)

4C8-2176P-10-00

Unavailable

29

PLATE, EPA (NON CALIFORNIA)

4C8-2179W-10-00

Unavailable

30

PLATE, ROUTING

5VX-21684-00-00

Unavailable

31

PLATE, ROUTING 2

5PW-21686-01-00

Unavailable

32

LABEL

2C0-2178A-00-00

Unavailable
