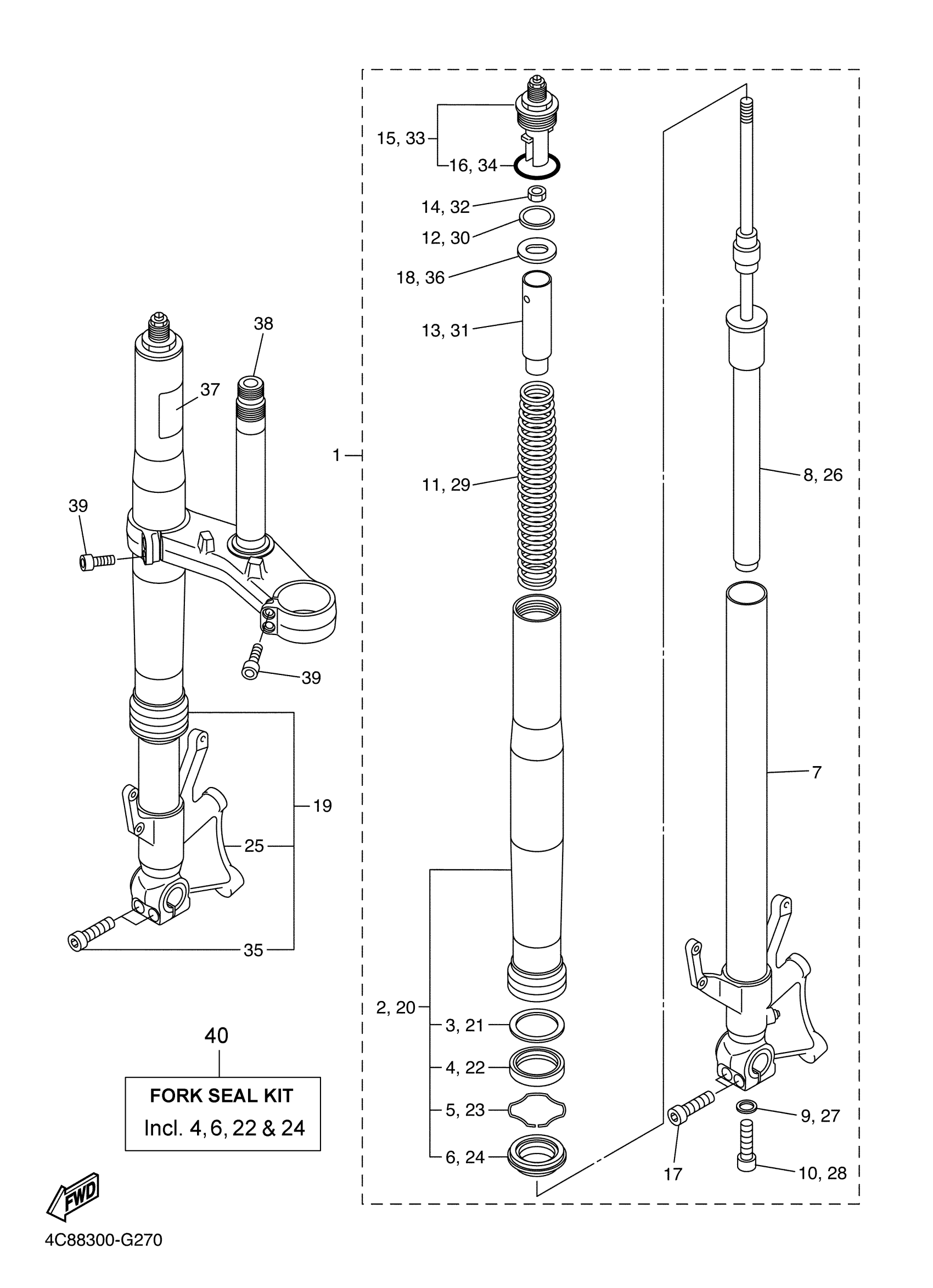

Yamaha YZFR1XR (YZFR1) 4C8B1 2008 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

4C8-23102-00-00

Unavailable

2

TUBE, OUTER (RIGHT)

4C8-23136-00-00

Unavailable

3

WASHER, OIL SEAL

5PW-23146-00-00

$18.49

4

OIL SEAL

4PU-23145-01-00

$25.99

5

RING, SNAP

4V4-23153-L0-00

$9.99

6

SEAL, DUST

4PU-23144-00-00

$24.99

7

INNER TUBE COMP.1

4C8-23110-00-00

Unavailable

8

. CYLINDER COMP, FRONT FORK

4C8-23170-00-00

Unavailable

9

GASKET

509-23158-L0-00

$16.49

10

BOLT, HEXAGON SOCKET HEAD

5UX-23181-00-00

Unavailable

11

SPRING, FRONT FORK

4C8-23141-00-00

Unavailable

12

WASHER

5VY-12277-00-00

$12.99

13

SPACER

5VY-23118-00-00

Unavailable

14

NUT

3SP-23357-L0-00

$4.78

15

. BOLT, CAP

4C8-23111-00-00

Unavailable

16

O-RING

3XJ-23147-L0-00

Unavailable

17

BOLT,SOCKET

91314-08040-00

Unavailable

18

. WASHER, SPRING UPPER

4C8-23149-00-00

Unavailable

19

FRONT FORK ASSY (R.H)

4C8-23103-00-00

Unavailable

20

TUBE, OUTER (RIGHT)

4C8-23136-00-00

Unavailable

21

WASHER, OIL SEAL

5PW-23146-00-00

$18.49

22

OIL SEAL

4PU-23145-01-00

$25.99

23

RING, SNAP

4V4-23153-L0-00

$9.99

24

SEAL, DUST

4PU-23144-00-00

$24.99

25

INNER TUBE COMP.2

4C8-23120-00-00

Unavailable

26

. CYLINDER COMP, FRONT FORK

4C8-23170-00-00

Unavailable

27

GASKET

509-23158-L0-00

$16.49

28

BOLT, HEXAGON SOCKET HEAD

5UX-23181-00-00

Unavailable

29

SPRING, FRONT FORK

4C8-23141-00-00

Unavailable

30

WASHER

5VY-12277-00-00

$12.99

31

SPACER

5VY-23118-00-00

Unavailable

32

NUT

3SP-23357-L0-00

$4.78

33

. BOLT, CAP

4C8-23111-00-00

Unavailable

34

O-RING

3XJ-23147-L0-00

Unavailable

35

BOLT,SOCKET

91314-08040-00

Unavailable

36

. WASHER, SPRING UPPER

4C8-23149-00-00

Unavailable

37

PROTECTOR

5PW-23472-00-00

Unavailable

38

UNDER BRACKET COMP.

4C8-23340-00-00

Unavailable

39

BOLT,SOCKET

91314-08030-00

Unavailable

40

FORK SEAL KIT (TWO FORKS)

4PU-W003B-00-00

Unavailable
