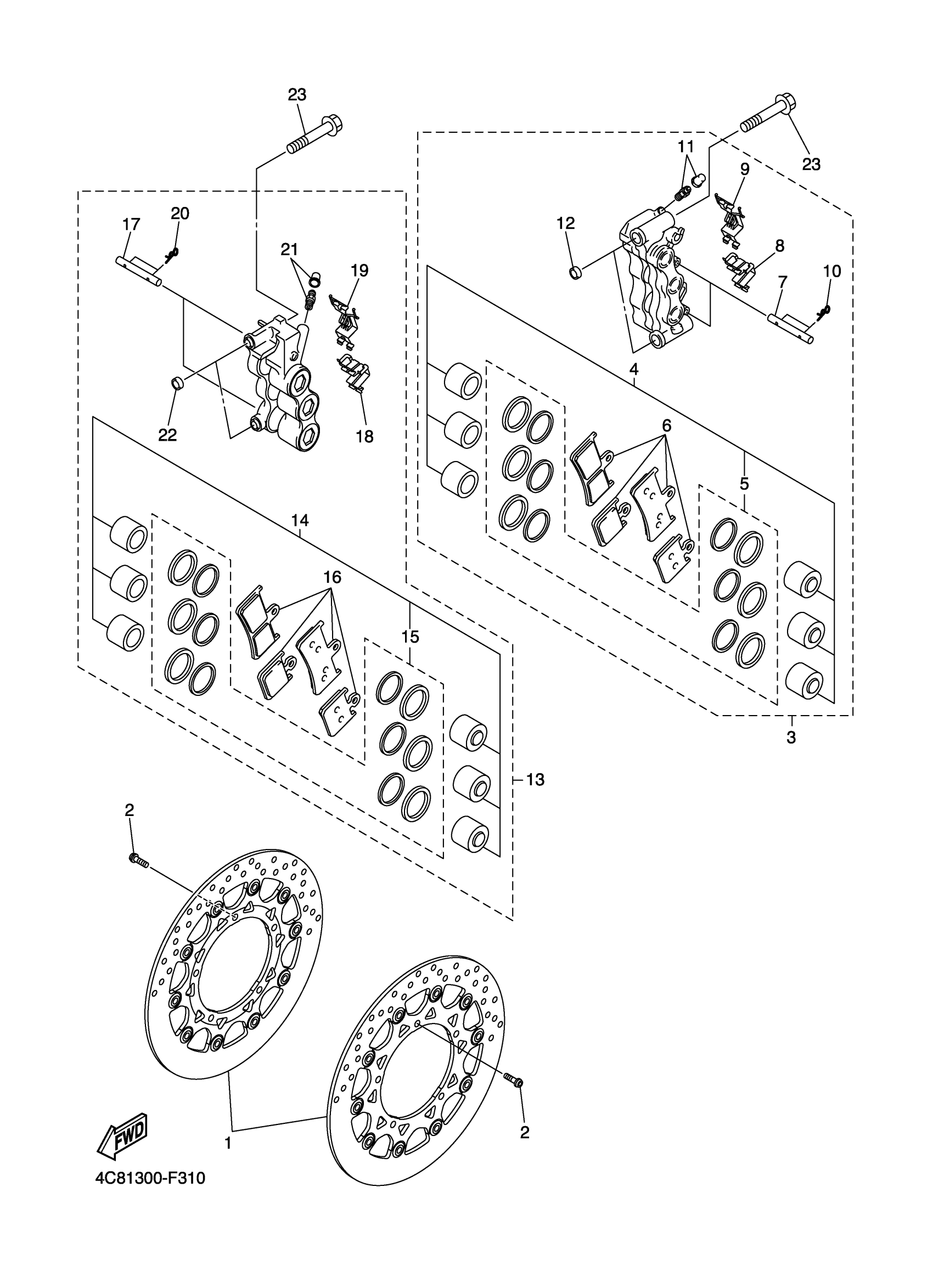

Yamaha YZFR1XR (YZFR1) 4C8B1 2008 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

4C8-2581T-00-00

Unavailable

2

SCREW

90149-06045-00

$8.49

3

CALIPER ASSY (LEFT)

4C8-2580T-10-00

Unavailable

4

PISTON ASSY, CALIPER

4C8-25802-00-00

Unavailable

5

CALIPER SEAL KIT

4C8-25803-00-00

$49.99

6

BRAKE PAD KIT

4C8-25805-00-00

$53.99

7

PIN, PAD

4SV-25924-00-00

$42.99

8

SUPPORT, PAD

4C8-25919-00-00

$7.99

9

SUPPORT, PAD

2S3-25919-10-00

Unavailable

10

CLIP, PAD PIN

3GM-25925-00-00

$11.99

11

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

12

PIN, KNOCK

5VY-2583B-00-00

Unavailable

13

CALIPER ASSY (RIGHT)

4C8-2580U-10-00

$524.99

14

PISTON ASSY, CALIPER

4C8-25802-00-00

Unavailable

15

CALIPER SEAL KIT

4C8-25803-00-00

$49.99

16

BRAKE PAD KIT

4C8-25805-00-00

$53.99

17

PIN, PAD

4SV-25924-00-00

$42.99

18

SUPPORT, PAD

4C8-25919-00-00

$7.99

19

SUPPORT, PAD

2S3-25919-10-00

Unavailable

20

CLIP, PAD PIN

3GM-25925-00-00

$11.99

21

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

22

PIN, KNOCK

5VY-2583B-00-00

Unavailable

23

BOLT, UNION

90401-10012-00

Unavailable
