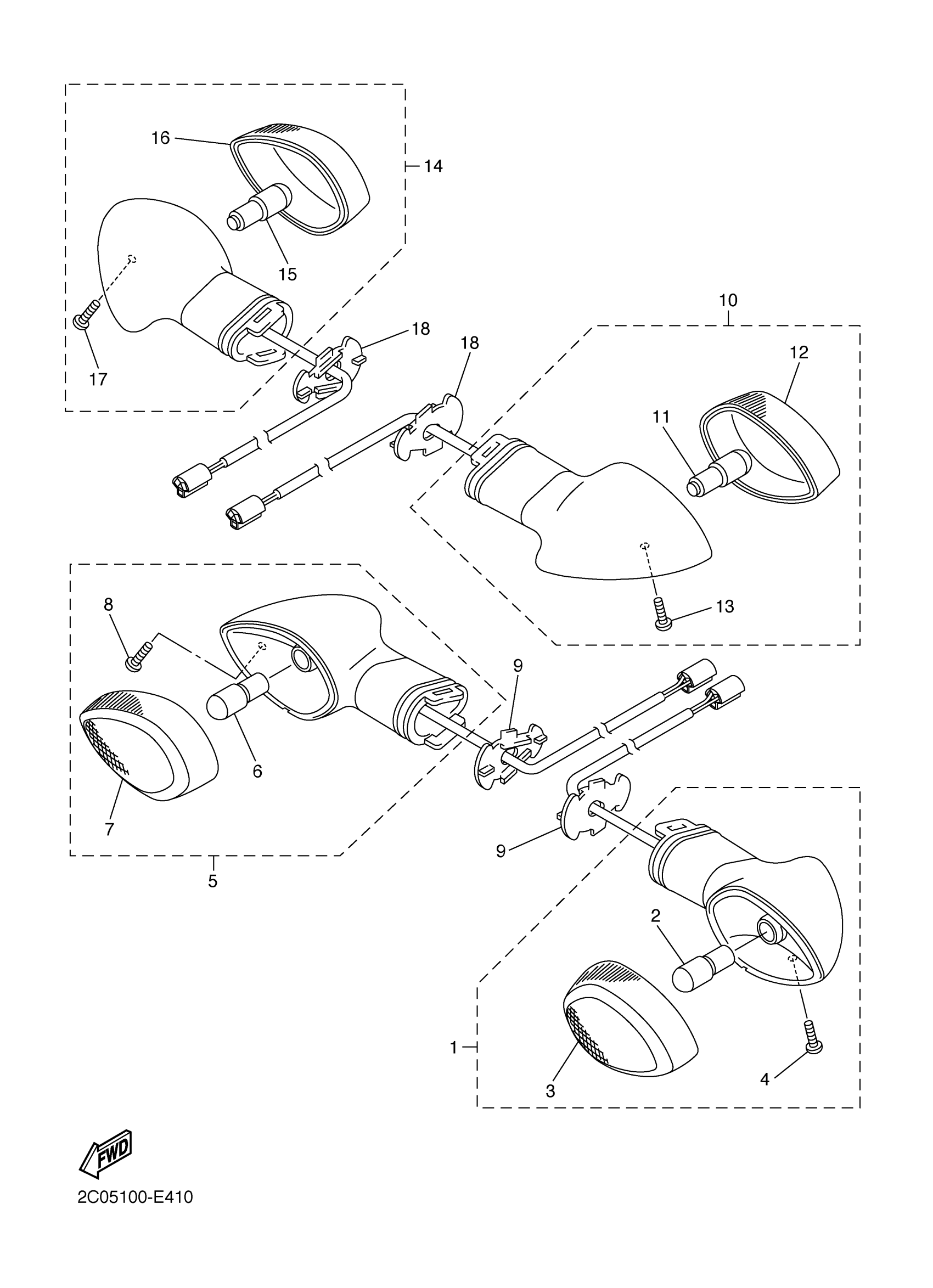

Yamaha YZFR1XR (YZFR1) 4C8B1 2008 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

2C0-83310-10-00

$110.99

2

BULB

1A2-84714-50-00

$14.49

3

LENS COMP

2C0-8333A-10-00

Unavailable

4

SCREW, TAPPING

97702-40010-00

$4.30

5

FRONT FLASHER LIGHT ASSY 2

2C0-83320-10-00

$120.99

6

BULB

1A2-84714-50-00

$14.49

7

LENS COMP

2C0-8334A-10-00

Unavailable

8

SCREW, TAPPING

97702-40010-00

$4.30

9

STAY, FLASHER 1

2D1-83318-00-00

$7.99

10

REAR FLASHER LIGHT ASSY 1

2C0-83330-10-00

Unavailable

11

BULB, FLASHER (12V-21W)

306-83311-40-00

$13.49

12

LENS COMP

2C0-8334A-10-00

Unavailable

13

SCREW, TAPPING

97702-40010-00

$4.30

14

REAR FLASHER LIGHT ASSY 2

2C0-83340-10-00

Unavailable

15

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

16

LENS COMP

2C0-8333A-10-00

Unavailable

17

SCREW, TAPPING

97702-40010-00

$4.30

18

STAY, FLASHER 1

2D1-83318-00-00

$7.99
