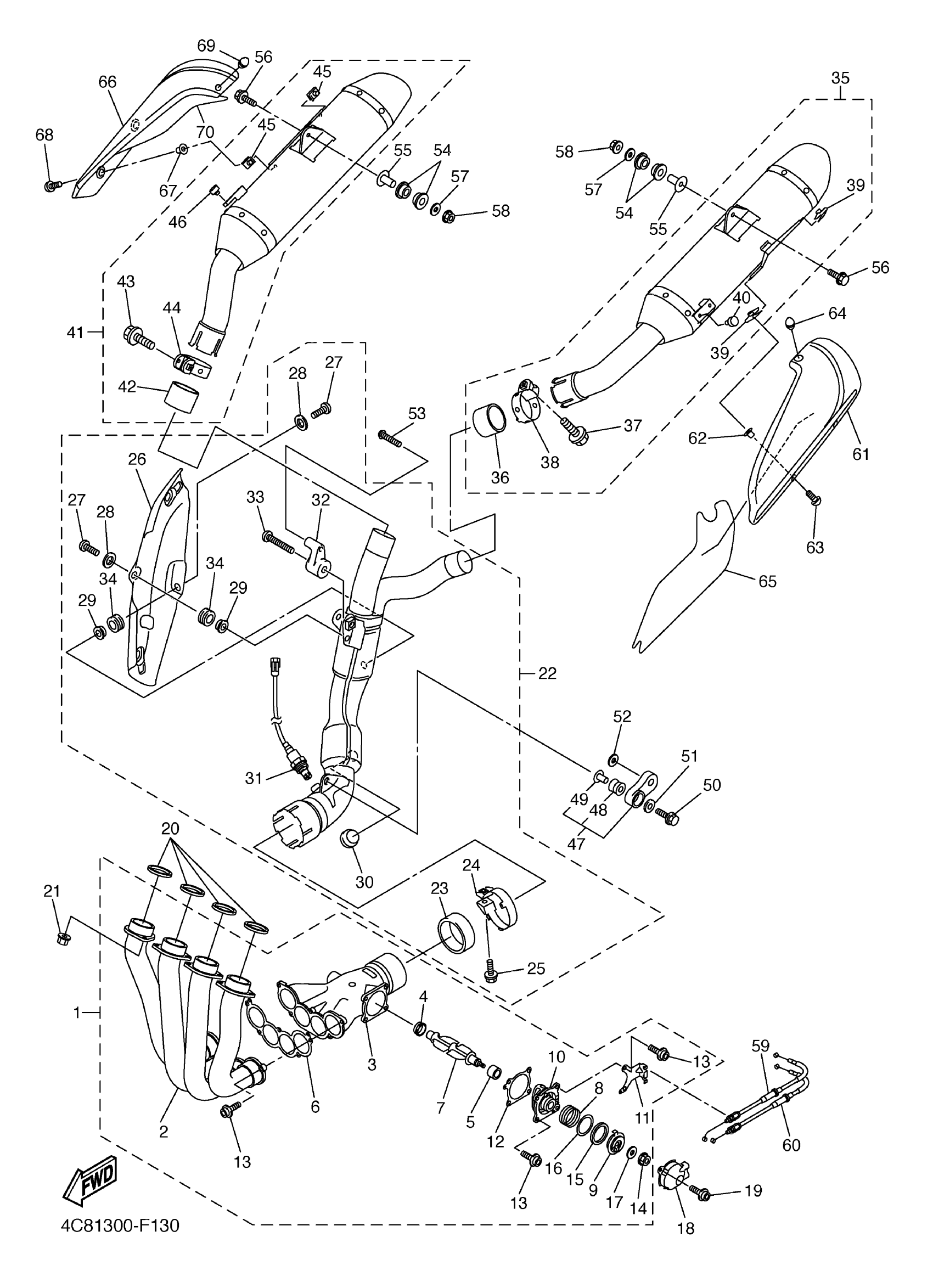

Yamaha YZFR1XR (YZFR1) 4C8B1 2008 EXHAUST Diagram
#
1
EXHAUST PIPE ASSY 1
4C8-14610-00-00
Unavailable
2
. EXHAUST PIPE COMP
4C8-14602-00-00
Unavailable
3
. JOINT, EXHAUST 1
4C8-14615-00-00
Unavailable
4
PLUG, BLIND
5VY-14816-00-00
Unavailable
5
COLLAR
5VY-14638-00-00
Unavailable
6
GASKET, EXHAUST PIPE
5VY-14623-00-00
Unavailable
7
. ARM, SHAFT (VALVE)
5VY-14821-00-00
Unavailable
8
. HOUSING
5VY-14811-00-00
Unavailable
9
. PULLEY
5VY-14865-10-00
Unavailable
11
BRACKET
5VY-14867-00-00
Unavailable
14
NUT
90179-06M28-00
Unavailable
15
COLLAR 2
5VY-14648-00-00
Unavailable
16
VALVE, PLATE
5VY-14674-00-00
Unavailable
17
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
18
PROTECTOR, EXHAUST
5VY-14826-00-00
Unavailable
20
GASKET, EXHAUST PIPE
4FM-14613-00-00
Unavailable
21
NUT (22U)
90179-08410-00
Unavailable
22
CATALYST ASSY.
4C8-14740-00-00
Unavailable
23
GASKET, SILENCER
4C8-14755-00-00
Unavailable
24
BAND, MUFFLER
4C8-14715-00-00
Unavailable
25
BOLT, FLANGE(4FM)
95814-08030-00
Unavailable
26
PROTECTOR, MUFFLER 3
4C8-14738-00-00
Unavailable
27
BOLT, BUTTON HEAD(3JP)
92014-06012-00
Unavailable
28
WASHER, PLATE
90201-06079-00
Unavailable
29
COLLAR
90387-06188-00
Unavailable
30
DAMPER, LOCATING 1
4FM-24181-00-00
Unavailable
31
. SENSOR, OXYGEN
4C8-8592A-00-00
Unavailable
32
. STAY ASSY, 1
4C8-21880-00-00
Unavailable
33
BOLT, BUTTON HEAD(4TR)
92014-08040-00
Unavailable
34
GROMMET
90480-12021-00
Unavailable
35
MUFFLER ASSY 1
4C8-14710-10-00
Unavailable
36
GASKET, MUFFLER
5VY-14714-00-00
Unavailable
37
BOLT, FLANGE
90105-08063-00
Unavailable
38
BAND, MUFFLER
5VY-14715-00-00
Unavailable
39
NUT, SPRING
90183-060A2-00
Unavailable
40
PLUG
90338-06007-00
Unavailable
41
MUFFLER ASSY 2
4C8-14720-10-00
Unavailable
42
GASKET, MUFFLER
5VY-14714-00-00
Unavailable
43
BOLT, FLANGE
90105-08063-00
Unavailable
44
BAND, MUFFLER
3D8-14715-00-00
Unavailable
45
NUT, SPRING
90183-060A2-00
Unavailable
46
PLUG
90338-06007-00
Unavailable
47
STAY ASSY, 2
4C8-21890-00-00
Unavailable
48
DAMPER, MUFFLER
5VY-14747-00-00
Unavailable
49
COLLAR
90387-08021-00
Unavailable
50
BOLT, FLANGE
95817-08040-00
Unavailable
51
WASHER, PLATE(3DM)
90201-087G2-00
Unavailable
52
WASHER, PLATE(4KM)
90201-10054-00
Unavailable
53
BOLT,HEX. SOCKET BUTTON
90111-08059-00
Unavailable
54
DAMPER, FOOTREST 2
5VY-27424-00-00
Unavailable
55
COLLAR
90387-08020-00
Unavailable
56
BOLT, FLANGE
95814-08045-00
Unavailable
57
WASHER, PLATE
90201-08034-00
Unavailable
58
NUT, U FLANGE(4KG)
95604-08200-00
Unavailable
59
CABLE, PULLEY 1
4C8-1133E-02-00
Unavailable
60
CABLE, PULLEY 2
4C8-1133F-01-00
Unavailable
61
PROTECTOR, MUFFLER 1
4C8-14718-00-P0
Unavailable
62
COLLAR(42G)
90387-062L2-00
Unavailable
63
BOLT
90111-06038-00
Unavailable
64
DAMPER, MUFFLER 2
4C8-14757-00-00
Unavailable
65
SEAT
4C8-1475P-00-00
Unavailable
66
PROTECTOR, MUFFLER 2
4C8-14728-00-P0
Unavailable
67
COLLAR(42G)
90387-062L2-00
Unavailable
68
BOLT
90111-06038-00
Unavailable
69
DAMPER, MUFFLER 2
4C8-14757-00-00
Unavailable
70
SEAT
4C8-1476P-00-00
Unavailable
