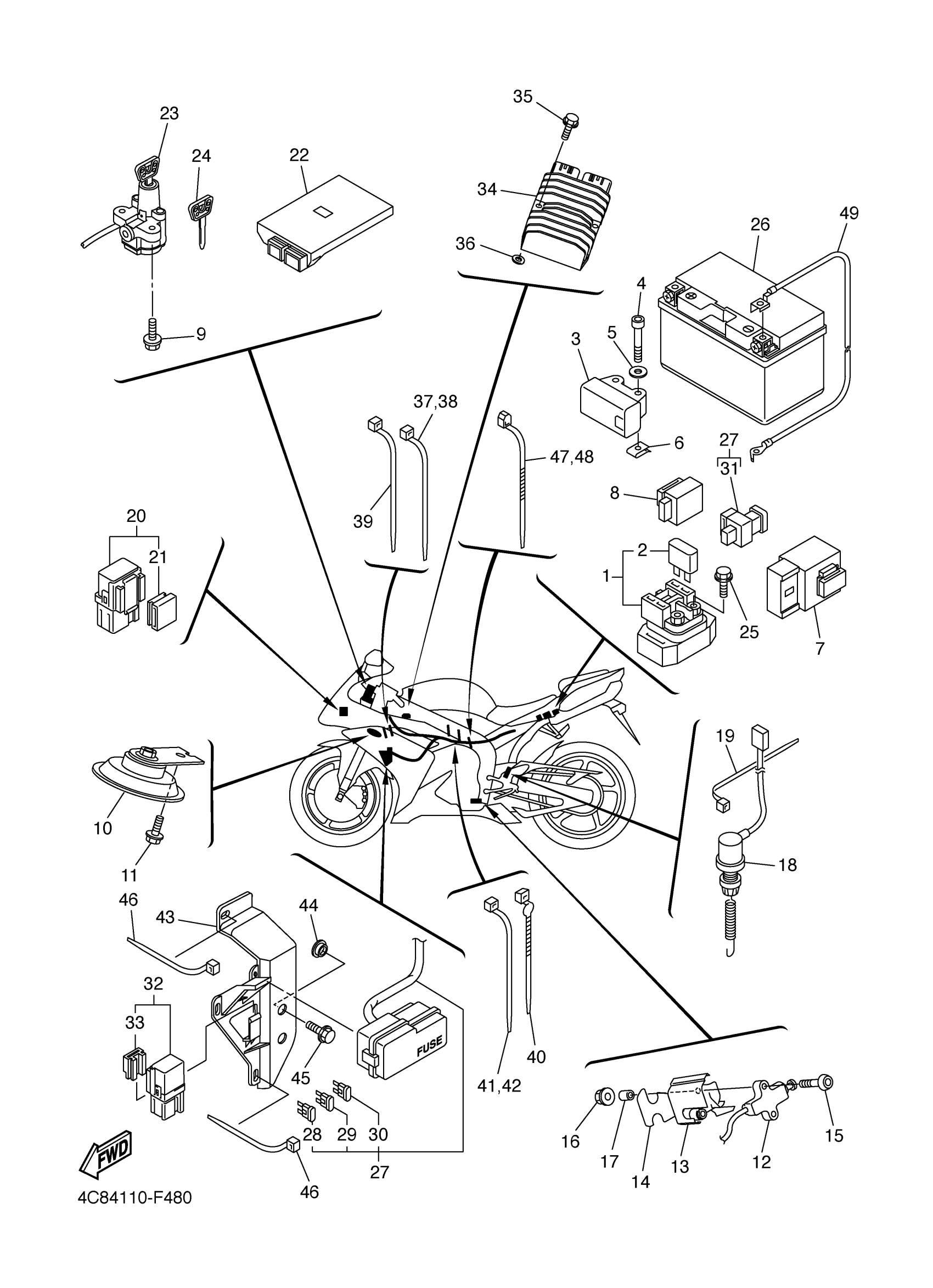

Yamaha YZFR1XR (YZFR1) 4C8B1 2008 ELECTRICAL 2 Diagram

#

Description
Price

1

STARTER RELAY ASSY (RC19-45)

1D0-81940-02-00

$97.99

2

FUSE (12V 15A)

36Y-82151-00-00

$4.94

3

SENSOR, LEAN ANGLE

5PS-82576-02-00

$88.99

4

BOLT

91312-04025-00

$7.49

5

WASHER, PLATE (8M6)

90201-047A2-00

$3.35

6

NUT, SPRING(47R)

90183-04039-00

$7.49

7

RELAY ASSY

5VK-81950-33-00

$56.99

8

FLASHER RELAY ASSY

4C8-83350-12-00

Unavailable

9

BOLT

90109-08196-00

$8.49

10

HORN

4TH-83371-00-00

$49.99

11

BOLT, FLANGE

95817-06012-00

$1.43

12

SWITCH, SIDE STAND

13S-82566-50-00

$157.99

13

COVER 2

4C8-27463-00-00

Unavailable

14

SEAT 4

4C8-2175P-00-00

Unavailable

15

BOLT, BUTTON HEAD

92017-05035-00

$5.60

16

NUT, S/L FLANGE

95607-05200-00

Unavailable

17

COLLAR

90387-05025-00

Unavailable

18

STOP SWITCH ASSY

4C8-82530-00-00

Unavailable

19

CLAMP

90465-10098-00

Unavailable

20

RELAY ASSY (5JJ-20)

5JJ-81950-20-00

Unavailable

21

HOLDER, RELAY

5JJ-81952-00-00

Unavailable

22

ENGINE CONTROL UNIT ASSY

4C8-8591A-60-00

Unavailable

23

MAIN SWITCH STEERING LOCK

4C8-82501-10-00

Unavailable

24

BLANK KEY

4BH-82511-09-00

Unavailable

25

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

26

BATTERY YTZ10S

YTZ-10S00-00-00

Unavailable

27

WIRE HARNESS ASSY

4C8-82590-41-00

Unavailable

28

FUSE (25A-BL)

5JJ-82151-70-00

Unavailable

29

FUSE (15A)

67F-82151-50-00

Unavailable

30

FUSE (7.5A-BL)

5JJ-82151-00-00

Unavailable

31

FUSE (50A)

5JW-82151-10-00

Unavailable

32

RELAY ASSY (5EA-02)

5EA-81950-20-00

Unavailable

33

HOLDER,RELAY

5EA-81952-00-00

Unavailable

34

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

Unavailable

35

BOLT, FLANGE

95822-06025-00

Unavailable

36

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

37

CLAMP(4FM)

90464-15195-00

Unavailable

38

CLAMP(4FM)

90464-15195-00

Unavailable

39

CLAMP

90464-13077-00

Unavailable

40

CLAMP

90465-10098-00

Unavailable

41

BAND

1UA-82591-00-00

Unavailable

42

BAND

1UA-82591-00-00

Unavailable

43

STAY, FUSE BOX

4C8-82171-00-00

Unavailable

44

COLLAR

90387-06040-00

Unavailable

45

BOLT, WITH WASHER(55K)

90119-06114-00

Unavailable

46

CLAMP

90464-13077-00

Unavailable

47

CLAMP(4FM)

90464-15195-00

Unavailable

48

CLAMP(4FM)

90464-15195-00

Unavailable

49

WIRE, MINUS LEAD

4C8-82116-00-00

Unavailable
