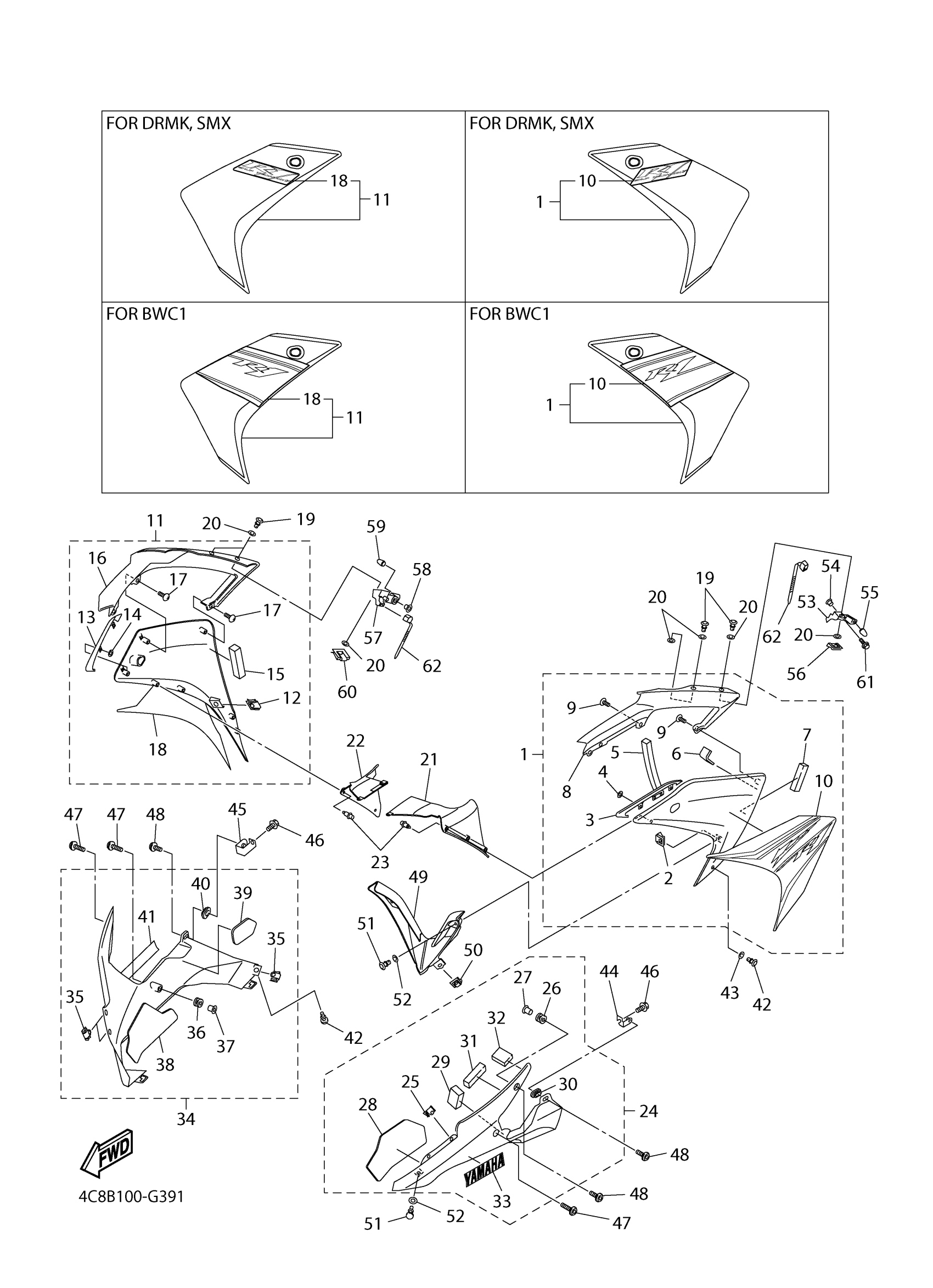

Yamaha YZFR1XR (YZFR1) 4C8B1 2008 COWLING 2 Diagram
#
1
PANEL ASSEMBLY 1 (DEEP PURPLISH BLUE METALLIC C)
4C8-Y283U-90-P0
Unavailable
1
PANEL ASSEMBLY 1
4C8-Y283U-A0-P3
Unavailable
1
PANEL ASSEMBLY 1
4C8-Y283U-B0-P5
Unavailable
3
. COVER 1
4C8-28219-00-00
Unavailable
5
DAMPER 3
4C8-28425-00-00
Unavailable
6
. DAMPER 4
4C8-28435-00-00
Unavailable
7
. DAMPER 1
4C8-28217-00-00
Unavailable
8
. COVER 7 (DEEP PURPLISH BLUE METALLIC C)
4C8-2117V-00-P0
Unavailable
8
. COVER 7 (BLACK METALLIC X)
4C8-2117V-00-P1
Unavailable
8
. COVER 7 (DEEP RED METALLIC K)
4C8-2117V-00-P3
Unavailable
10
EMBLEM 1
4C8-2834C-00-00
Unavailable
10
EMBLEM 1
4C8-2834C-10-00
Unavailable
10
. GRAPHIC 1 (DEEP PURPLISH BLUE METALLIC C)
4C8-28391-60-00
Unavailable
11
PANEL ASSEMBLY 2
4C8-Y283V-90-P0
Unavailable
11
PANEL ASSEMBLY 2
4C8-Y283V-A0-P3
Unavailable
11
PANEL ASSEMBLY 2 (DEEP RED METALLIC K)
4C8-Y283V-B0-P5
Unavailable
13
COVER 2
4C8-28229-00-00
Unavailable
15
DAMPER 8
4C8-2847N-00-00
Unavailable
16
. COVER 8 (DEEP PURPLISH BLUE METALLIC C)
4C8-2117W-00-P0
Unavailable
16
. COVER 8 (BLACK METALLIC X)
4C8-2117W-00-P1
Unavailable
16
. COVER 8 (DEEP RED METALLIC K)
4C8-2117W-00-P3
Unavailable
18
EMBLEM 1
4C8-2834C-00-00
Unavailable
18
EMBLEM 1
4C8-2834C-10-00
Unavailable
18
. GRAPHIC 2 (DEEP PURPLISH BLUE METALLIC C)
4C8-28392-60-00
Unavailable
19
HEAD
5PW-28386-00-00
Unavailable
20
WASHER, SPECIAL 1
2TK-21757-00-00
Unavailable
21
PANEL, INNER 1
4C8-2836K-00-00
Unavailable
22
PANEL, INNER 2
4C8-2836L-00-00
Unavailable
23
RIVET
90269-06008-00
Unavailable
24
COVER ASSY, UNDER
4C8-Y2808-80-P1
Unavailable
24
COVER ASSY, UNDER
4C8-Y2808-90-P1
Unavailable
24
COVER ASSY, UNDER
4C8-Y2808-90-P3
Unavailable
26
GROMMET(4FM)
90480-12596-00
Unavailable
27
COLLAR
90387-06159-00
Unavailable
28
. SEAT 3
4C8-2848L-00-00
Unavailable
29
DAMPER 5
4C8-2837J-00-00
Unavailable
30
COLLAR
5TA-21749-00-00
Unavailable
31
DAMPER 1
4C8-28415-00-00
Unavailable
32
DAMPER 2
4C8-28416-00-00
Unavailable
33
. EMBLEM, YAMAHA (DEEP RED METALLIC K)
4C8-2153A-00-00
Unavailable
33
EMBLEM, YAMAHA
4C8-2153E-70-00
Unavailable
33
EMBLEM, YAMAHA
4C8-2153E-80-00
Unavailable
34
COVER ASSY 2, UNDER
4C8-W2809-80-P1
Unavailable
34
COVER ASSY 2, UNDER
4C8-Y2809-90-P1
Unavailable
34
COVER ASSY 2, UNDER (DEEP RED METALLIC K)
4C8-Y2809-90-P3
Unavailable
36
GROMMET(4FM)
90480-12596-00
Unavailable
37
COLLAR
90387-06159-00
Unavailable
38
. SEAT 4
4C8-2848M-00-00
Unavailable
39
. SEAT 6
4C8-2848P-00-00
Unavailable
40
COLLAR
5TA-21749-00-00
Unavailable
41
. EMBLEM, YAMAHA (DEEP RED METALLIC K)
4C8-2153A-00-00
Unavailable
41
EMBLEM, YAMAHA
4C8-2153E-70-00
Unavailable
41
EMBLEM, YAMAHA
4C8-2153E-80-00
Unavailable
42
HEAD
5PW-28386-00-00
Unavailable
43
WASHER, SPECIAL 1
2TK-21757-00-00
Unavailable
44
BRACKET 1
4C8-2836A-00-00
Unavailable
45
BRACKET 2
4C8-2836E-00-00
Unavailable
46
BOLT
90109-06056-00
Unavailable
47
BOLT
90111-06030-00
Unavailable
48
SCREW
90149-06105-00
Unavailable
49
PANEL, INNER 3
4C8-2836M-00-00
Unavailable
51
HEAD
5PW-28386-00-00
Unavailable
52
WASHER, SPECIAL 1
2TK-21757-00-00
Unavailable
53
BRACKET 3
4C8-2836F-01-00
Unavailable
54
COLLAR (8G8)
90387-06681-00
Unavailable
55
DAMPER 2
2MG-21639-00-00
Unavailable
57
BRACKET 4
4C8-2836G-01-00
Unavailable
58
COLLAR (8G8)
90387-06681-00
Unavailable
59
DAMPER 2
2MG-21639-00-00
Unavailable
61
BOLT, WITH WASHER
90119-06226-00
Unavailable
62
CLAMP
90464-13077-00
Unavailable
