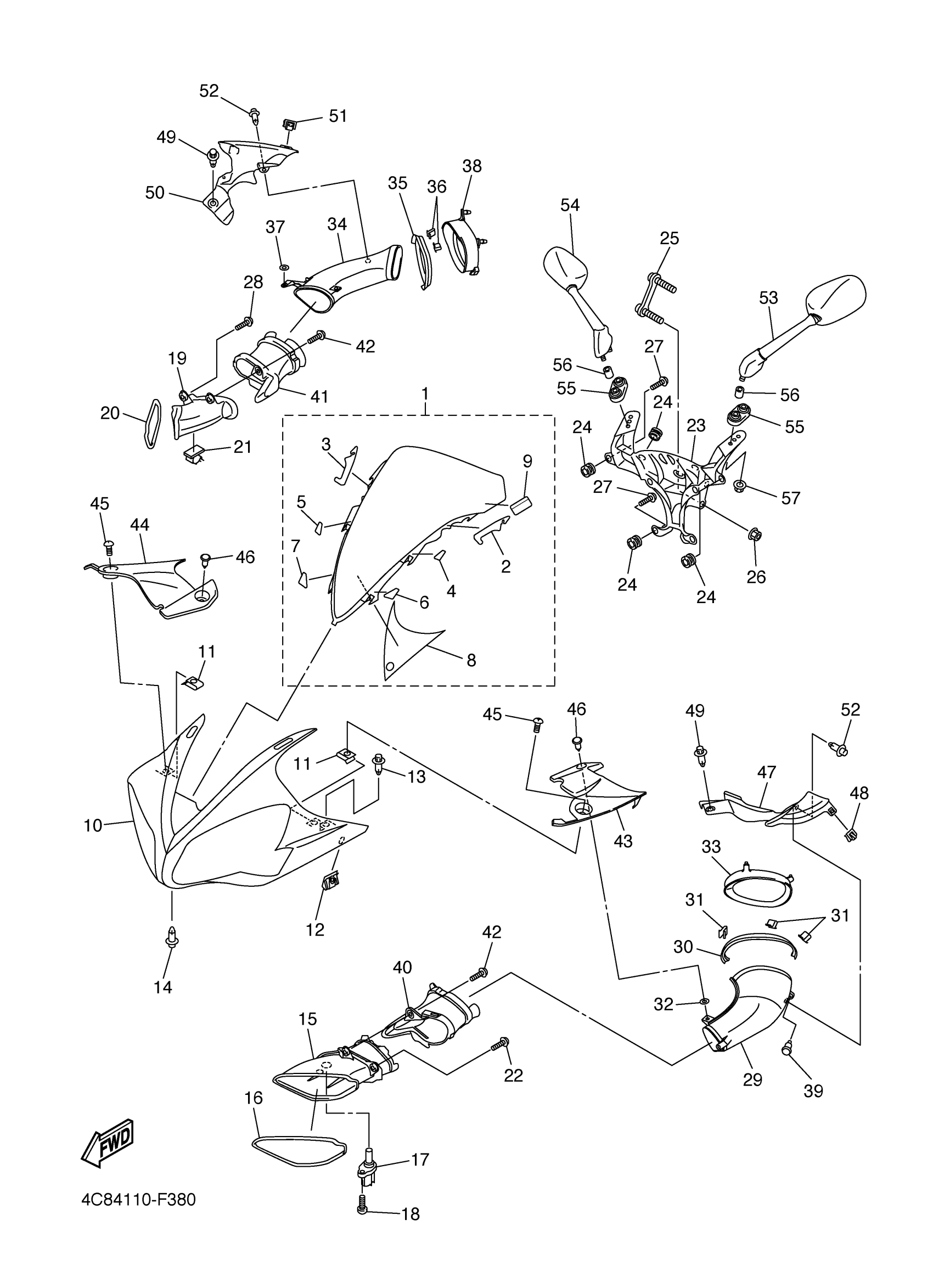

Yamaha YZFR1XR (YZFR1) 4C8B1 2008 COWLING 1 Diagram
#
1
WINDSHIELD
4C8-Y2881-10-00
Unavailable
2
. SEAL 1
4C8-28428-00-00
Unavailable
3
. SEAL 2
4C8-28429-00-00
Unavailable
4
. SEAL 3
4C8-2844E-00-00
Unavailable
5
. SEAL 4
4C8-2846F-00-00
Unavailable
6
SEAL 5
4C8-2847F-00-00
Unavailable
7
. SEAL 6
4C8-2848F-00-00
Unavailable
8
GRAPHIC 18
4C8-2832P-00-00
Unavailable
9
LABEL, CAUTION
5JW-2835Y-00-00
Unavailable
10
BODY, FRONT UPPER 1
4C8-2835G-01-P0
Unavailable
10
BODY, FRONT UPPER 1
4C8-2835G-01-P1
Unavailable
15
GRILL, AIR INTAKE 1
4C8-2837N-00-00
Unavailable
16
MOLE 1
4C8-28345-00-00
Unavailable
17
SENSOR, AIR TEMPERATURE
8FP-85886-00-00
Unavailable
18
SCREW, PAN TAP.2
97707-50516-00
Unavailable
19
GRILL, AIR INTAKE 2
4C8-2837R-00-00
Unavailable
20
MOLE 2
4C8-28346-00-00
Unavailable
21
CLAMP(3YL)
90464-25160-00
Unavailable
22
SCREW, ROUND TAPPING
90160-05007-00
Unavailable
23
STAY 1
4C8-28356-00-00
Unavailable
24
DAMPER
4XV-83513-00-00
Unavailable
25
PLATE
4C8-28336-00-00
Unavailable
26
NUT, SELF-LOCKING
90185-08169-00
Unavailable
27
SCREW, ROUND TAPPING
90160-05006-00
Unavailable
28
SCREW, ROUND TAPPING
90160-05007-00
Unavailable
29
DUCT 1
4C8-2838N-00-P1
Unavailable
29
DUCT 1
4C8-2838N-00-P3
Unavailable
30
DAMPER 3
4C8-2834E-01-00
Unavailable
31
GUIDE
1FK-2171H-00-00
Unavailable
32
PROTECTOR 1
5VY-2834V-00-00
Unavailable
33
DAMPER
4C8-28371-01-00
Unavailable
34
DUCT 2
4C8-2838R-00-P1
Unavailable
34
DUCT 2
4C8-2838R-00-P3
Unavailable
35
DAMPER
4C8-2834F-01-00
Unavailable
36
GUIDE
1FK-2171H-00-00
Unavailable
37
PROTECTOR 1
5VY-2834V-00-00
Unavailable
38
DAMPER
4C8-28372-01-00
Unavailable
39
RIVET
90269-07007-00
Unavailable
40
DUCT 3
4C8-2838T-01-00
Unavailable
41
DUCT 4
4C8-2838U-01-00
Unavailable
42
SCREW, ROUND TAPPING
90160-05007-00
Unavailable
43
PANEL, CONSOLE 1
4C8-2837L-00-00
Unavailable
44
PANEL, CONSOLE 2
4C8-2837M-00-00
Unavailable
45
SCREW, BINDING (10V)
90154-05013-00
Unavailable
47
GRILL, AIR OUTLET 1
4C8-2837V-00-00
Unavailable
49
RIVET
90269-06001-00
Unavailable
50
GRILL, AIR OUTLET 2
4C8-2837W-00-00
Unavailable
52
RIVET
90269-06001-00
Unavailable
53
REAR VIEW MIRROR ASSY (LEFT)
4C8-26280-00-00
Unavailable
54
REAR VIEW MIRROR ASSY (RIGHT)
4C8-26290-00-00
Unavailable
55
PLATE, MIRROR FITTING 1
4C8-26298-00-00
Unavailable
56
COLLAR(J45)
90387-064T3-00
Unavailable
57
NUT, CROWN(1FN)
90176-06055-00
Unavailable
