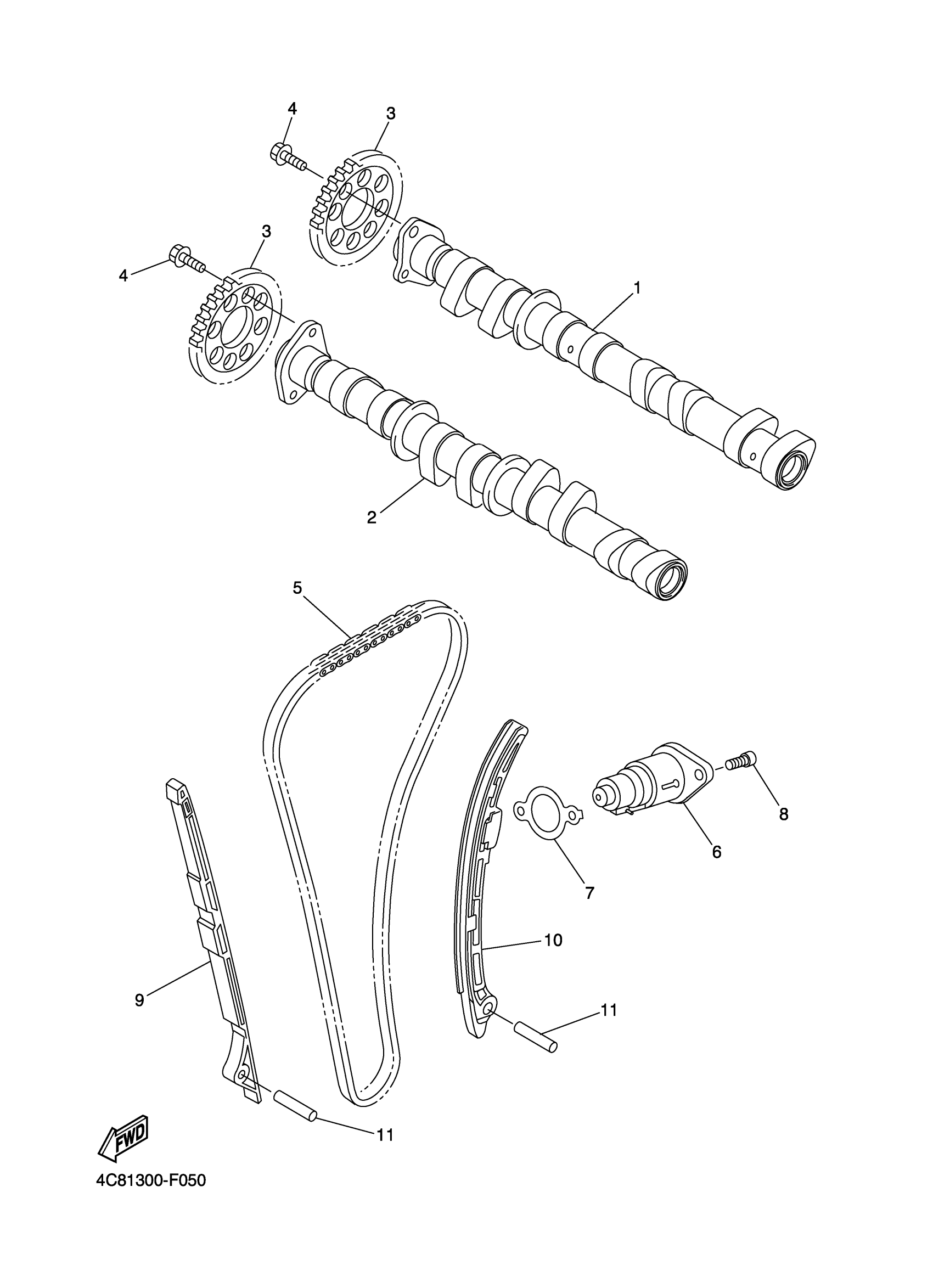

Yamaha YZFR1XR (YZFR1) 4C8B1 2008 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

4C8-12170-00-00

Unavailable

2

CAMSHAFT ASSY 2

4C8-12180-00-00

Unavailable

3

SPROCKET, CAM CHAIN

14B-12176-00-00

$83.10

4

BOLT, FLANGE

90105-07006-00

$5.84

5

CHAIN

94591-60124-00

$37.03

6

TENSIONER ASSY, CAM CHAIN

4C8-12210-01-00

Unavailable

7

GASKET, TENSIONER CASE

2D1-12213-00-00

Unavailable

8

BOLT, HEXAGON SOCKET HEAD

90110-06106-00

$5.90

9

DAMPER, CHAIN 1

4C8-12251-00-00

$40.75

10

DAMPER, CHAIN 2

4C8-12252-00-00

$139.07

11

PIN, DOWEL

93607-44002-00

$3.95
