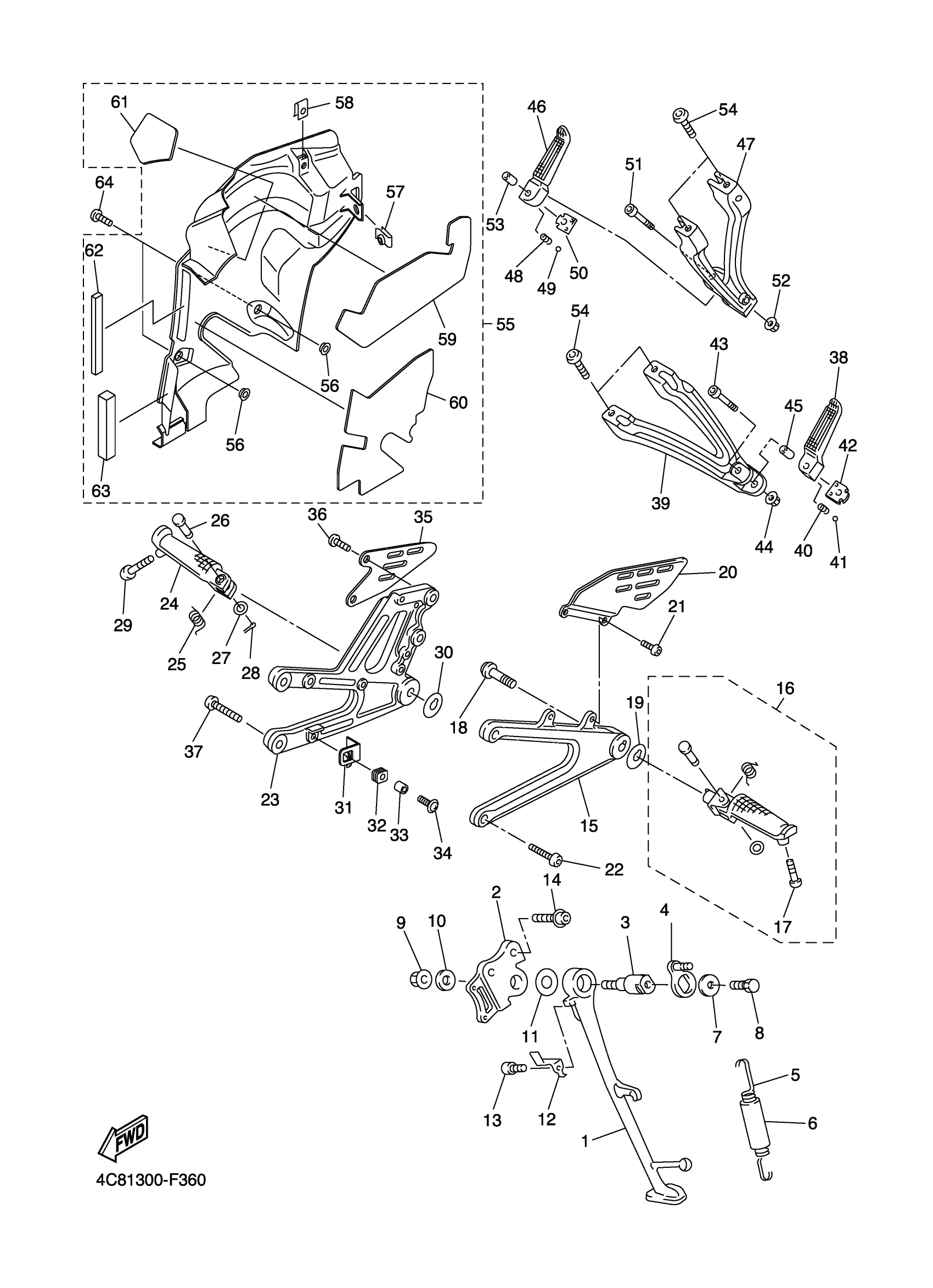

Yamaha YZFR1WC (YZFR1 CA) 4C85 2007 STAND FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

5VY-27311-01-00

Unavailable

2

BRACKET, SIDE STAND

5JJ-27321-00-00

Unavailable

3

GUIDE, SIDE STAND

4NX-27351-00-00

Unavailable

4

HOOK, SIDE STAND

5PW-27352-00-00

Unavailable

5

SPRING, TENSION

90506-18008-00

$15.99

6

HOSE (L60)

90445-19002-00

$7.49

7

WASHER, PLATE(8AT)

90201-081R9-00

$9.49

8

BOLT, HEXAGON

97017-08020-00

$9.49

9

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

10

WASHER, PLATE(47X)

90201-101J1-00

$8.49

11

WASHER, PLATE (22F)

90201-146F9-00

$7.49

12

LINK, SIDE STAND

5JJ-27315-00-00

$9.99

13

BOLT,SOCKET

91317-06012-00

$8.49

14

BOLT, HEXAGON SOCKET HEAD

90110-10026-00

$11.49

15

BRACKET 2

5VY-27442-02-00

$109.99

16

FRONT FOOTREST ASSY (LEFT)

5VY-27410-00-00

Unavailable

17

BOLT

90109-08075-00

Unavailable

18

BOLT,HEX. SOCKET BUTTON

90111-10017-00

Unavailable

19

WASHER, CLAW

90214-10002-00

Unavailable

20

PLATE 1

4C8-27445-00-00

Unavailable

21

BOLT, BUTTON HEAD(3JP)

92014-06012-00

Unavailable

22

BOLT

90109-085G6-00

Unavailable

23

BRACKET 3

4C8-27443-00-00

Unavailable

24

FOOTREST

5JJ-27461-00-00

Unavailable

25

SPRING, TORSION

90508-18135-00

Unavailable

26

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

27

WASHER, PLATE (7R4)

90201-080E2-00

Unavailable

28

PIN, COTTER

91490-25020-00

Unavailable

29

BOLT

90109-08075-00

Unavailable

30

WASHER 6154275100

90201-08103-00

Unavailable

31

STAY, STOP SWITCH

4C8-2144G-00-00

Unavailable

32

GROMMET(4SV)

90480-12607-00

Unavailable

33

COLLAR 8121444900

90387-06023-00

Unavailable

34

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

Unavailable

35

PLATE 2

4C8-27446-00-00

Unavailable

36

BOLT, BUTTON HEAD

92012-06014-00

Unavailable

37

BOLT

90109-085G6-00

Unavailable

38

FOOTREST, REAR 1

5JJ-27431-10-00

Unavailable

39

BRACKET 4

5VY-2741L-01-00

Unavailable

40

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

41

BALL

93501-04011-00

Unavailable

42

WASHER, SPECIAL

5JJ-27437-01-00

Unavailable

43

BOLT, SOCKET

91314-06035-00

Unavailable

44

NUT, U FLANGE

95604-06200-00

Unavailable

45

COLLAR (8H9)

90387-06697-00

Unavailable

46

FOOTREST, REAR 2

5JJ-27441-10-00

Unavailable

47

BRACKET 5

5VY-2742L-01-00

Unavailable

48

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

49

BALL

93501-04011-00

Unavailable

50

WASHER, SPECIAL

5JJ-27437-01-00

Unavailable

51

BOLT, SOCKET

91314-06035-00

Unavailable

52

NUT, U FLANGE

95604-06200-00

Unavailable

53

COLLAR (8H9)

90387-06697-00

Unavailable

54

BOLT,SOCKET

91314-08020-00

Unavailable

55

PROTECTOR ASSY

4C8-27490-01-00

Unavailable

56

COLLAR(4JX)

90387-0603J-00

Unavailable

57

NUT, SPRING

90183-051A0-00

Unavailable

58

NUT, SPRING

90183-050A6-00

Unavailable

59

. SEAT 3

4C8-2749A-00-00

Unavailable

60

. SEAT 4

4C8-2749B-00-00

Unavailable

61

. SEAT 6

4C8-2749D-00-00

Unavailable

62

. DAMPER 2

4C8-21486-00-00

Unavailable

63

. DAMPER

4C8-21488-00-00

Unavailable

64

BOLT, BUTTON HEAD

92012-06012-00

Unavailable
