Description

Price

1

SINGLE SEAT ASSY

4C8-24710-00-00

Unavailable

2

COVER, SINGLE SEAT

4C8-24711-00-00

Unavailable

3

BOLT, HEXAGON SOCKET HEAD

90110-06258-00

$9.49

4

TANDEM SEAT ASSY

4C8-24750-01-00

$143.99

5

. COVER, TANDEM SEAT

4C8-24751-00-00

Unavailable

6

DAMPER, SEAT

5SL-24723-00-00

$6.99

7

SEAT LOCK ASSY

5VY-24780-01-00

Unavailable

8

PLATE

5VY-24792-00-00

Unavailable

9

BOLT, BUTTON HEAD

92017-06025-00

$9.49

10

SPACER 2

5VY-24729-00-00

Unavailable

11

CABLE, SEAT LOCK

5VY-2478E-00-00

$19.99

12

ROTOR SET

5VY-W2470-00-00

Unavailable

13

STAY, LOCK

5VY-2117K-01-00

$7.99

14

SPRING, LOCK 2

5VY-2176V-00-00

$11.99

15

COLLAR

90387-06066-00

$8.49

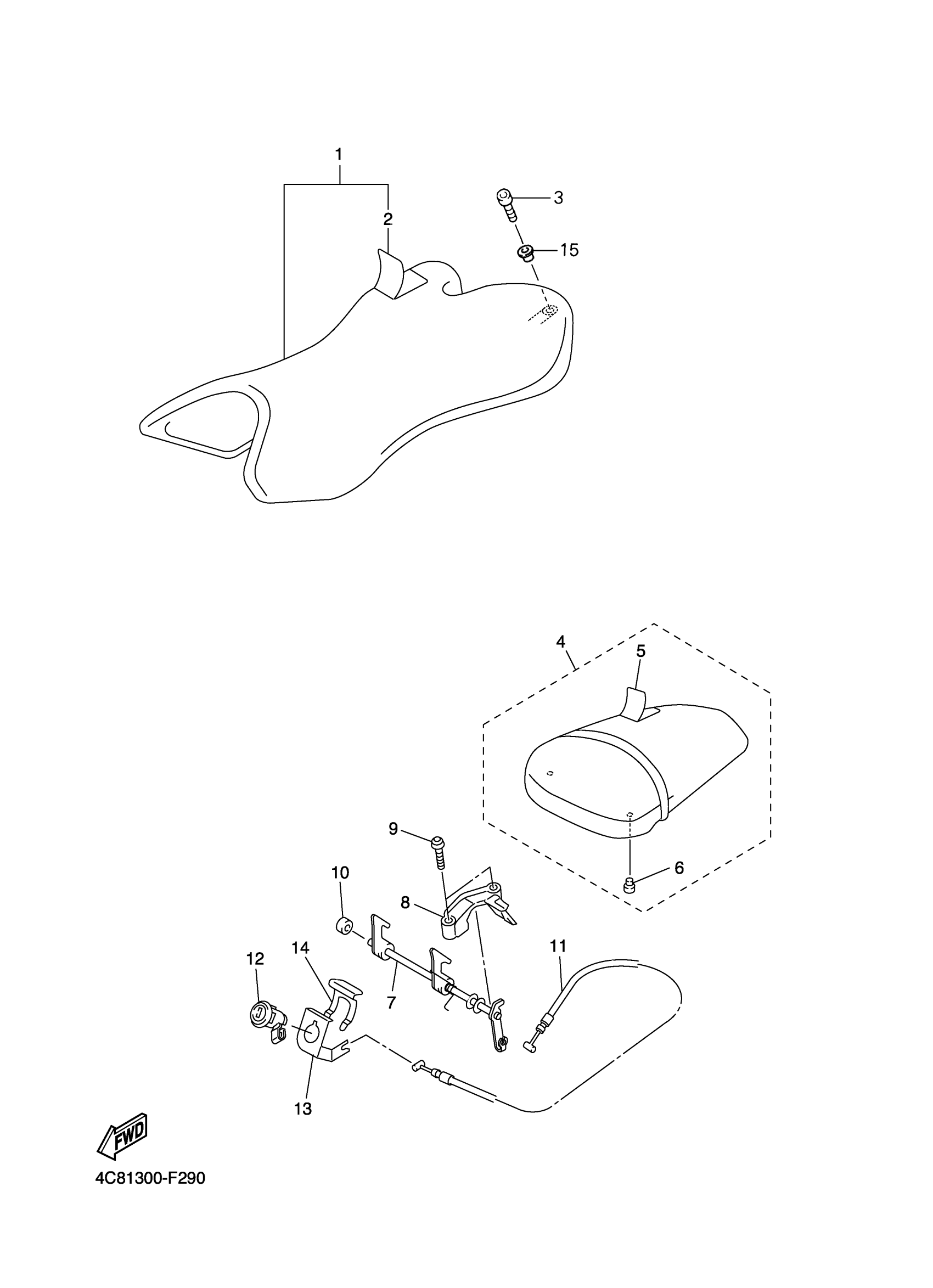

Yamaha YZFR1WC (YZFR1 CA) 4C85 2007 SEAT Diagram

SINGLE SEAT ASSY

COVER, SINGLE SEAT

BOLT, HEXAGON SOCKET HEAD

TANDEM SEAT ASSY

. COVER, TANDEM SEAT

DAMPER, SEAT

SEAT LOCK ASSY

PLATE

BOLT, BUTTON HEAD

SPACER 2

CABLE, SEAT LOCK

ROTOR SET

STAY, LOCK

SPRING, LOCK 2

COLLAR
