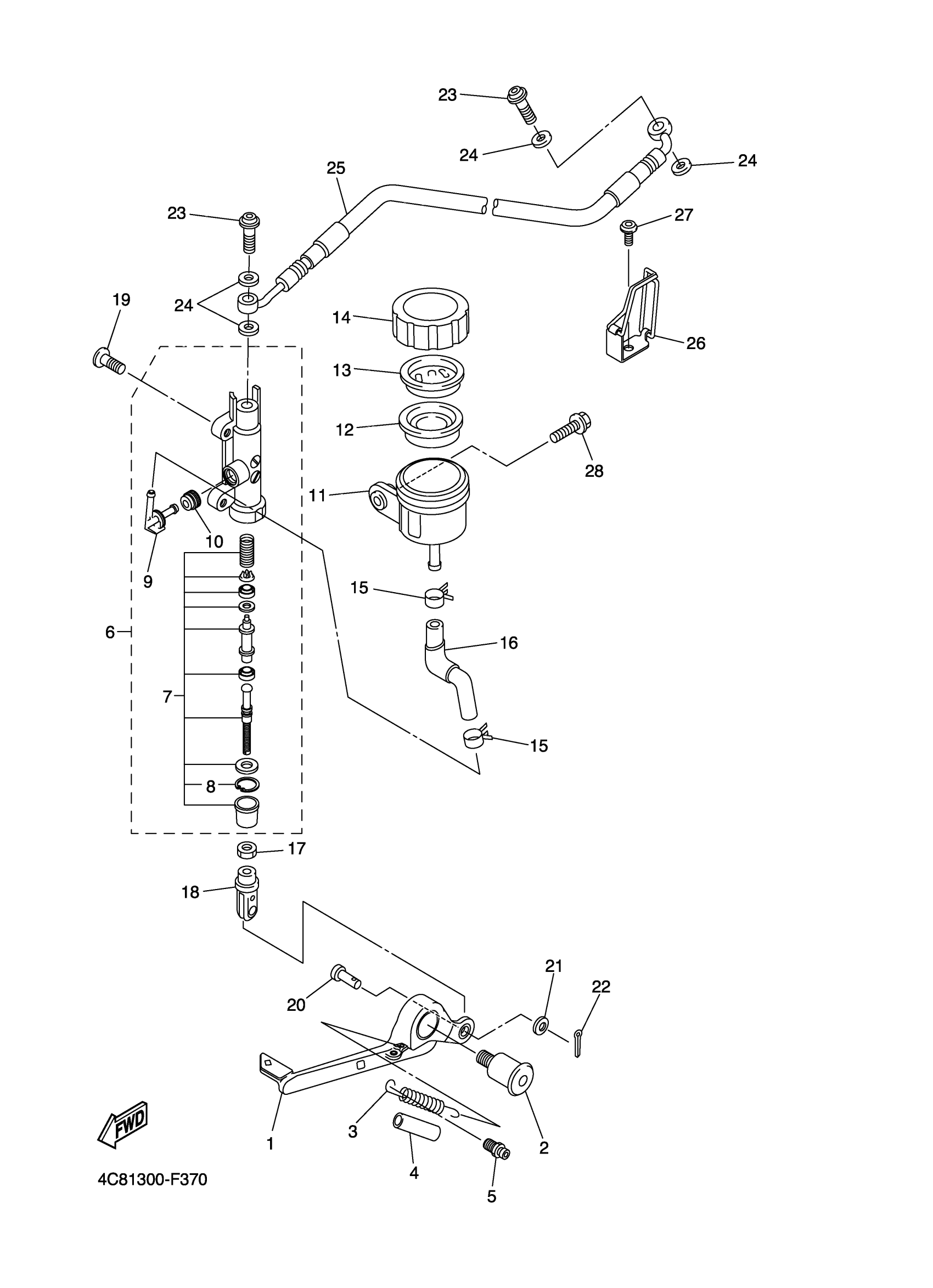

Yamaha YZFR1WC (YZFR1 CA) 4C85 2007 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

4C8-27211-00-00

$126.99

2

BOLT

4C8-27434-10-00

Unavailable

3

SPRING, TENSION (2X3)

90506-20193-00

$14.99

4

HOSE

90446-15386-00

$7.49

5

PIN, PEDAL CRANK

4C8-27813-09-00

Unavailable

6

RR. MASTER CYLINDER ASSY.

4C8-2583V-00-00

$155.99

7

CYLINDER KIT, MASTER

5VX-W0042-60-00

Unavailable

8

CIRCLIP, MASTER CYLINDER

3LN-2585G-00-00

$4.63

9

JOINT

2D1-2582A-01-00

$5.49

10

O-RING

4BP-2585F-01-00

Unavailable

11

TANK, RESERVOIR

2D1-25894-00-00

$7.99

12

DIAPHRAGM, RESERVOIR

5SL-25854-00-00

$20.99

13

BUSH,DIAPHRAGM

5SL-25855-00-00

$7.99

14

CAP, RESERVOIR

5SL-25852-00-00

$27.99

15

CLIP

90467-120A3-00

$7.49

16

HOSE, RESERVOIR

4C8-25895-00-00

Unavailable

17

NUT, HEXAGON SMALL

95317-08700-00

Unavailable

18

JOINT

5SL-27222-00-00

Unavailable

19

BOLT,HEX. SOCKET BUTTON

90111-08038-00

Unavailable

20

PIN, CLEVIS (5X6)

91701-06018-00

Unavailable

21

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

22

PIN, COTTER

91490-16020-00

Unavailable

23

BOLT, UNION

90401-10172-00

Unavailable

24

GASKET

90430-10005-00

Unavailable

25

HOSE, BRAKE

4C8-25874-00-00

Unavailable

26

HOLDER, BRAKE HOSE 5

4C8-2588F-00-00

Unavailable

27

BOLT

90111-06038-00

Unavailable

28

BOLT, W/WASHER (3V2)

90119-05020-00

Unavailable
