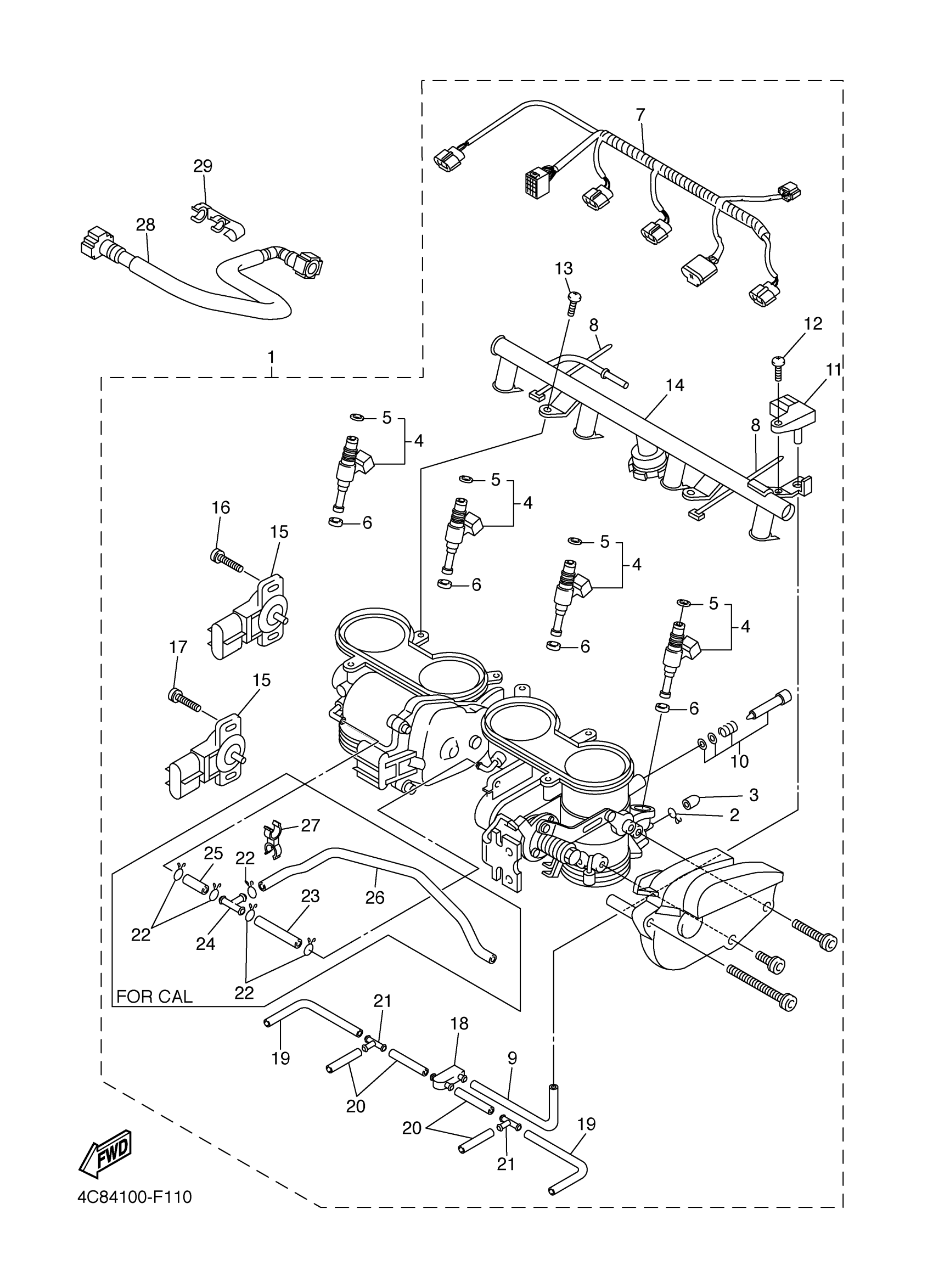

Yamaha YZFR1WC (YZFR1 CA) 4C85 2007 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

4C8-13750-00-00

Unavailable

1

THROTTLE BODY ASSY

4C8-13750-10-00

Unavailable

2

CLIP, PIPE

8A7-14139-00-00

$6.34

3

CAP

895-14169-00-00

$3.73

4

INJECTOR ASSY

4C8-13761-00-00

$137.82

5

O-RING

5PS-14147-00-00

$8.68

6

GASKET, MANIFOLD

8FP-13556-00-00

$11.48

7

EXTENSION, WIRE HARNESS

4C8-82386-00-00

Unavailable

8

CLIP

4KM-14137-00-00

$5.18

9

HOSE

5JW-14987-00-00

Unavailable

10

PILOT SCREW SET

2C0-14105-00-00

$30.09

11

SENSOR, PRESSURE

1WS-82380-00-00

$159.59

12

SCREW

2C0-14216-00-00

$2.98

13

SCREW, PAN

98517-06012-00

$2.93

14

PIPE INLET ASSEMBLY

4C8-13930-00-00

Unavailable

15

THROTTLE SENSOR ASSY

2C0-85885-00-00

Unavailable

16

SCREW

8CC-14216-10-00

Unavailable

17

SCREW

5FL-14216-00-00

Unavailable

18

NIPPLE

3XV-14251-00-00

Unavailable

19

PIPE

5FL-14349-10-00

Unavailable

20

PIPE

5JW-14396-00-00

Unavailable

21

. PIPE, JOINT 1

68V-24376-00-00

$13.59

22

CLIP

90467-090A2-00

Unavailable

23

. PIPE

4C8-14465-00-00

Unavailable

24

WAY (70R)

90413-08012-00

Unavailable

25

. PIPE

4C8-14466-00-00

Unavailable

26

. PIPE

4C8-1443J-00-00

Unavailable

27

CLAMP

90464-09012-00

Unavailable

28

PIPE, FUEL 1

4C8-13971-00-00

Unavailable

29

CLAMP

90464-16005-00

Unavailable
