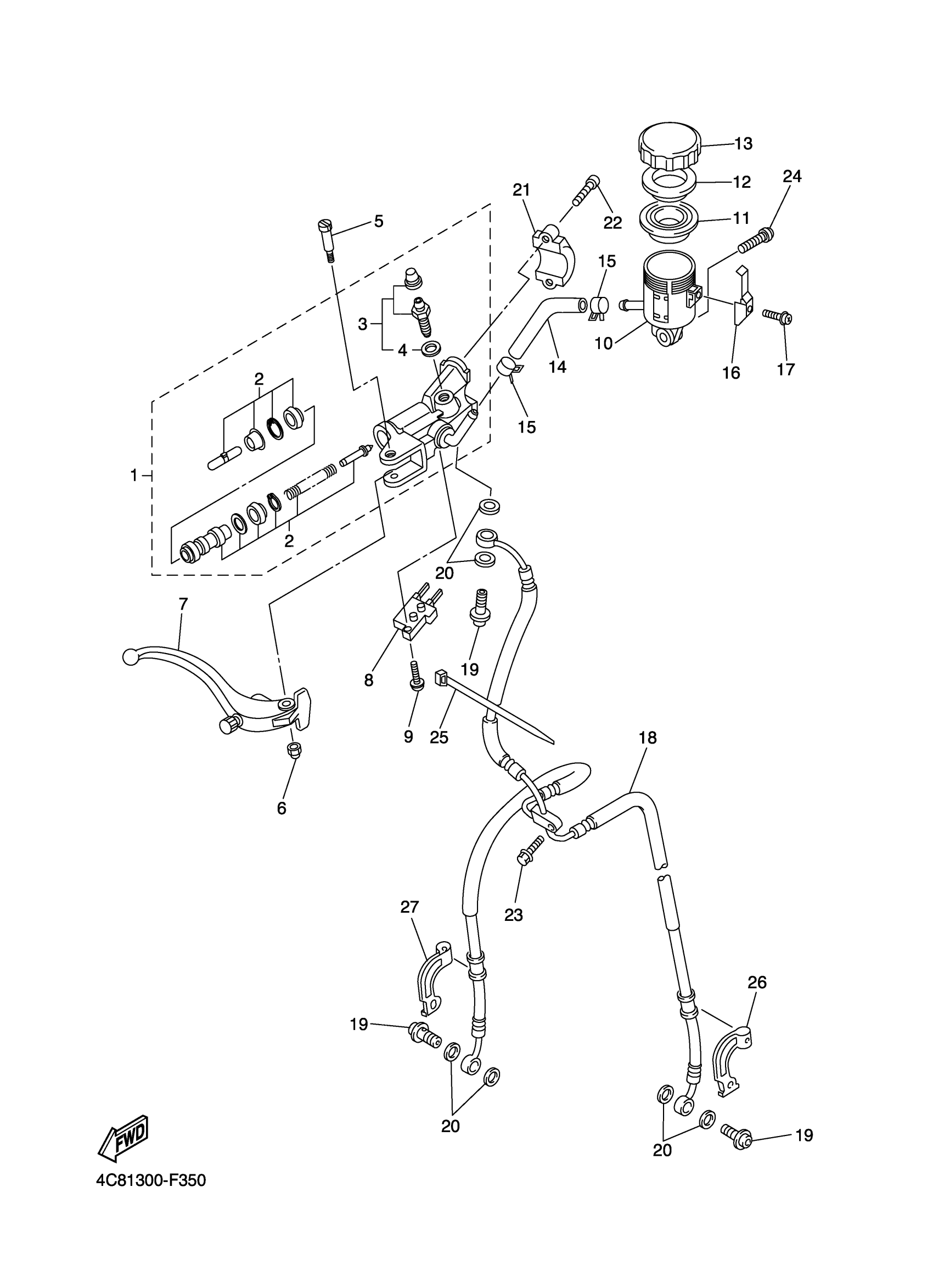

Yamaha YZFR1WC (YZFR1 CA) 4C85 2007 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

5SL-W2587-00-00

$377.99

2

CYLINDER KIT, MASTER

2S3-W0041-00-00

$85.99

3

BLEED SCREW KIT

5VY-W0048-00-00

$18.49

4

SEAL 1

5VY-25975-00-00

$2.29

5

BOLT, LEVER

5VY-2589F-01-00

Unavailable

6

NUT, COVER

5VS-2586F-00-00

$6.99

7

LEVER 2

5SL-83922-10-00

$53.99

8

FRONT STOP SWITCH ASSY

4HM-83980-00-00

$41.99

9

SCREW,SET

5VS-2585H-00-00

$7.99

10

TANK, RESERVOIR

5SL-25894-20-00

$38.99

11

DIAPHRAGM, RESERVOIR

5VY-25854-00-00

$32.99

12

BUSH,DIAPHRAGM

5VY-25855-00-00

$5.49

13

CAP, RESERVOIR

5VY-25852-00-00

$18.49

14

HOSE, RESERVOIR

5VY-25895-10-00

$23.99

15

CLIP

90467-120A3-00

$7.49

16

HOLDER

5VY-2589G-00-00

Unavailable

17

SCREW

5VY-2589H-00-00

Unavailable

18

HOSE, BRAKE 1

4C8-25872-00-00

Unavailable

19

BOLT, UNION

90401-10172-00

Unavailable

20

GASKET

90430-10005-00

Unavailable

21

BRACKET, MASTER CYLINDER

5VS-25867-00-00

Unavailable

22

BOLT

5VS-26332-00-00

Unavailable

23

BOLT, FLANGE

90105-06041-00

Unavailable

24

BOLT,HEX. SOCKET BUTTON

90111-05026-00

Unavailable

25

BAND

3MA-82591-00-00

Unavailable

26

HOLDER, BRAKE HOSE 1

5VY-25875-00-00

Unavailable

27

HOLDER, BRAKE HOSE 2

5VY-25876-00-00

Unavailable
