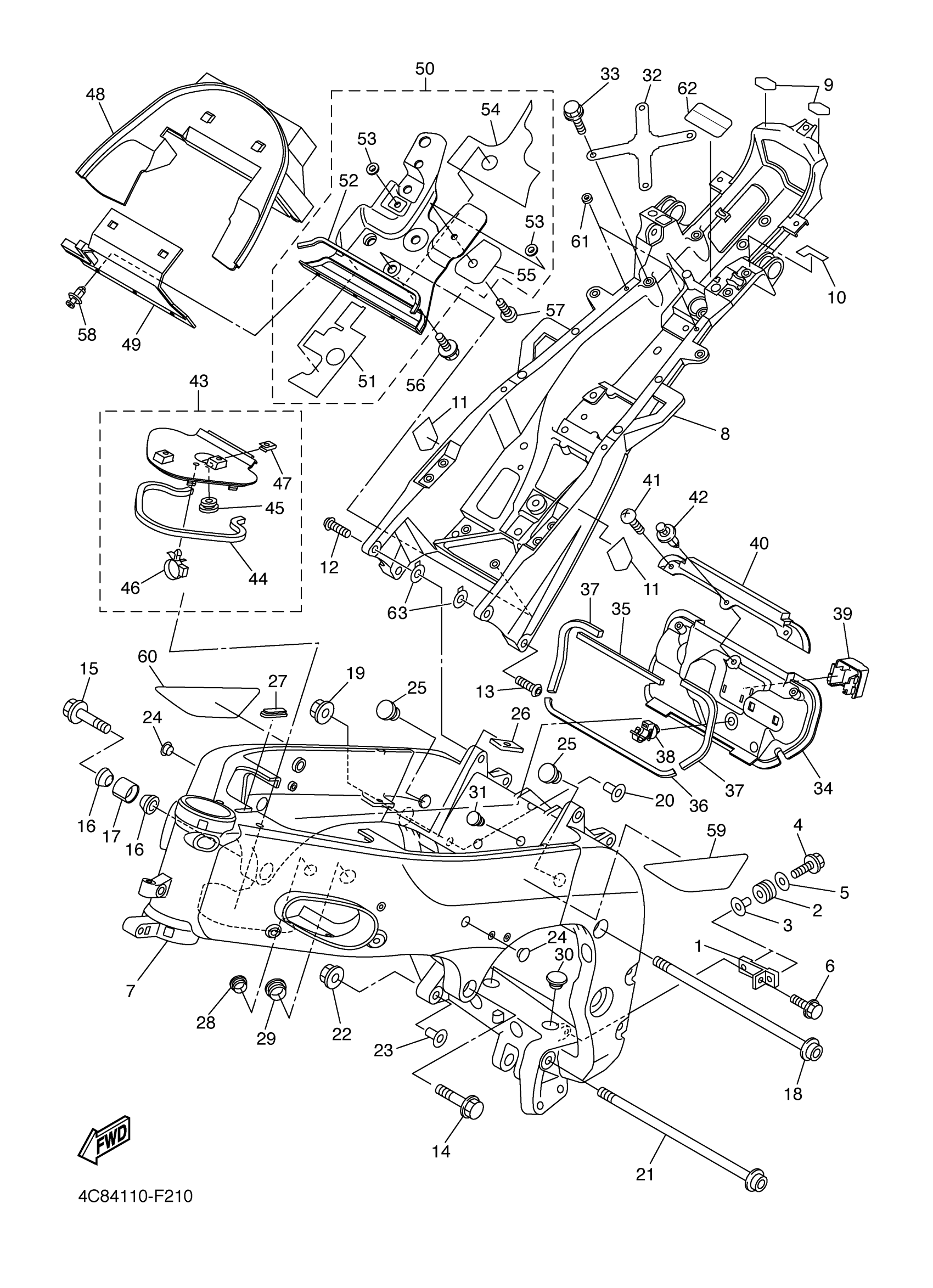

Yamaha YZFR1WC (YZFR1 CA) 4C85 2007 FRAME Diagram
#
1
BRACKET 7
4C8-2116J-00-00
Unavailable
2
GROMMET
90480-14005-00
Unavailable
5
WASHER, PLATE
90201-06M31-00
Unavailable
7
FRAME COMP.
4C8-21110-01-00
Unavailable
7
FRAME COMP.
4C8-21110-11-00
Unavailable
8
REAR FRAME COMP.
4C8-21190-00-00
Unavailable
9
SEAL
5VY-21268-00-00
Unavailable
10
SEAL
5VY-21269-00-00
Unavailable
11
SEAL, 1
4C8-2111D-00-00
Unavailable
16
BOSS, ENGINE MOUNT
4B1-21414-00-00
Unavailable
17
BOSS, ENGINE MOUNT
4B1-21424-00-00
Unavailable
18
BOLT, HEXAGON SOCKET HEAD
90110-10005-00
Unavailable
19
NUT
90179-10696-00
Unavailable
20
BOLT, ENGINE ADJUSTING
4C8-21495-00-00
Unavailable
21
BOLT, HEXAGON SOCKET HEAD
90110-10005-00
Unavailable
22
NUT
90179-10696-00
Unavailable
23
BOLT, ENGINE ADJUSTING
4C8-21495-00-00
Unavailable
24
PLUG
90338-15004-00
Unavailable
25
PLUG
90338-23004-00
Unavailable
26
DAMPER, LOCATING 2
2C0-24182-00-00
Unavailable
27
GROMMET
4C8-21773-00-00
Unavailable
28
PLUG
90338-14007-00
Unavailable
29
PLUG
90338-17004-00
Unavailable
30
PLUG
90338-23004-00
Unavailable
31
PLUG
90338-08008-00
Unavailable
32
BRACKET
5VY-21131-00-00
Unavailable
33
BOLT, FLANGE
95817-06016-00
Unavailable
34
COVER 2
4C8-2117M-00-00
Unavailable
35
DAMPER
4C8-2174X-00-00
Unavailable
36
DAMPER
4C8-21746-00-00
Unavailable
37
DAMPER
4C8-2139X-00-00
Unavailable
38
CLAMP
90464-10008-00
Unavailable
39
HOUSING, CONNECTEUR 1
2C0-8258J-00-00
Unavailable
40
PLATE
4C8-21183-00-00
Unavailable
41
SCREW, TAPPING
90167-05080-00
Unavailable
42
RIVET
90269-06081-00
Unavailable
43
COVER ASSY 1
4C8-2110M-10-00
Unavailable
44
DAMPER
4C8-2174Y-00-00
Unavailable
45
. GROMMET
90480-01333-00
Unavailable
46
CLAMP
90464-16006-00
Unavailable
47
NUT, SPRING(4ES)
90183-06069-00
Unavailable
48
COVER ASSY 2
4C8-2110N-00-00
Unavailable
49
COVER ASSY 4
4C8-2110L-00-00
Unavailable
50
COVER ASSY 3
4C8-2110P-00-00
Unavailable
51
. SEAT 1
4C8-2112B-00-00
Unavailable
52
. DAMPER
4C8-2113B-00-00
Unavailable
53
COLLAR(3XA)
90387-053Y7-00
Unavailable
54
. SHEET, 2
4C8-2113C-00-00
Unavailable
55
. SHEET, 3
4C8-2113D-00-00
Unavailable
56
BOLT
90109-06043-00
Unavailable
57
BOLT
90111-05002-00
Unavailable
58
RIVET
90269-06012-00
Unavailable
59
SEAT, KNEE GRIP 1
4C8-24121-00-00
Unavailable
60
SEAT, KNEE GRIP 2
4C8-24122-00-00
Unavailable
61
DAMPER
5SL-84753-00-00
Unavailable
62
LABEL, CAUTION
3TB-24877-A1-00
Unavailable
63
WASHER, SPECIAL 1
4C8-21615-09-00
Unavailable
