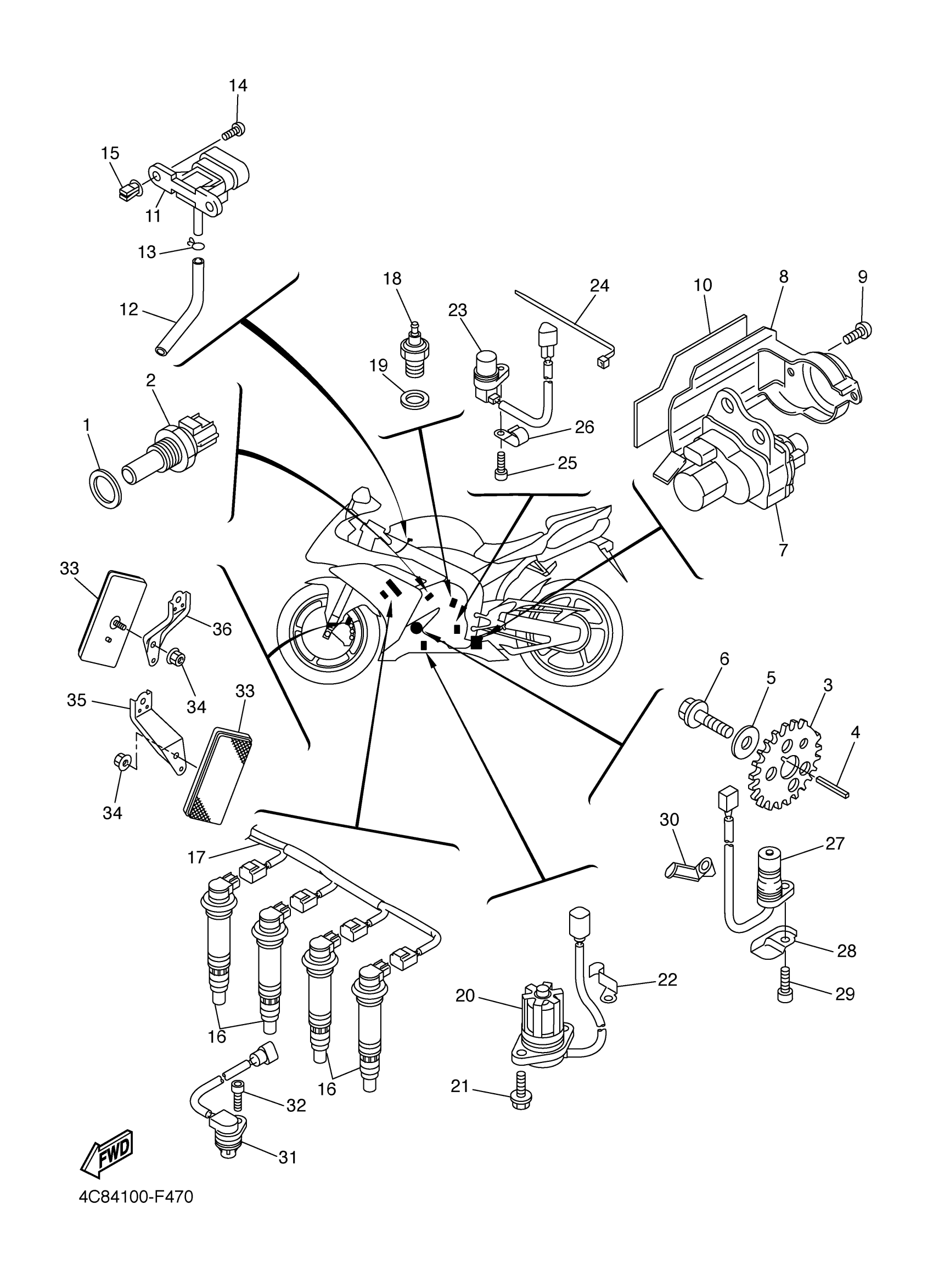

Yamaha YZFR1WC (YZFR1 CA) 4C85 2007 ELECTRICAL 1 Diagram

#

Description
Price

1

WASHER, PLATE

90201-12790-00

$9.49

2

THERMOSENSOR ASSY

8CC-85790-01-00

$95.99

3

ROTOR

2D1-81673-00-00

Unavailable

4

KEY, STRAIGHT

90282-03001-00

$11.49

5

WASHER, PLATE

90201-10039-00

$7.49

6

BOLT (30X)

90105-10290-00

Unavailable

7

SERVO MOTOR ASSY

5VY-85820-11-00

Unavailable

8

COVER, SERVO MOTOR

4C8-85829-01-00

Unavailable

9

SCREW, PANHEAD TAPPING (682)

97780-50514-00

Unavailable

10

SEAT 5

4C8-1479P-00-00

Unavailable

11

SENSOR, PRESSURE

1C7-82380-00-00

$184.99

12

HOSE

90445-08028-00

$8.49

13

CLIP (16G)

90467-08021-00

$8.49

14

SCREW, TAPPING(JA3)

97707-60520-00

$8.49

15

PLUG(4BP)

90338-08226-00

$2.17

16

IGNITION COIL ASSY

4C8-82310-00-00

Unavailable

17

WIRE, SUB LEAD

4C8-82309-00-00

Unavailable

18

NEUTRAL SWITCH ASSY

3GB-82540-01-00

Unavailable

19

GASKET (1KH,1.0T)

90430-10148-00

Unavailable

20

OIL LEVEL GAUGE ASSY

5VY-85720-00-00

Unavailable

21

BOLT, FLANGE

95022-06016-00

Unavailable

22

CLAMP

90465-08053-00

Unavailable

23

SENSOR, SPEED

4XV-83755-04-00

Unavailable

24

CLAMP

90464-51001-00

Unavailable

25

BOLT,SOCKET

91317-06016-00

Unavailable

26

CLAMP

90462-08057-00

Unavailable

27

PICK-UP ASSY

5VY-81670-02-00

Unavailable

28

PLATE, CLUTCH COVER

4C8-15589-00-00

Unavailable

29

BOLT,SOCKET

91317-06016-00

Unavailable

30

CLAMP

90465-08054-00

Unavailable

31

SENSOR, CAM POSITION

5VY-85896-02-00

Unavailable

32

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

33

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

34

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

35

BRACKET, REFLECTOR 1

5VY-85112-00-00

Unavailable

36

BRACKET, REFLECTOR 2

5VY-85122-00-00

Unavailable
