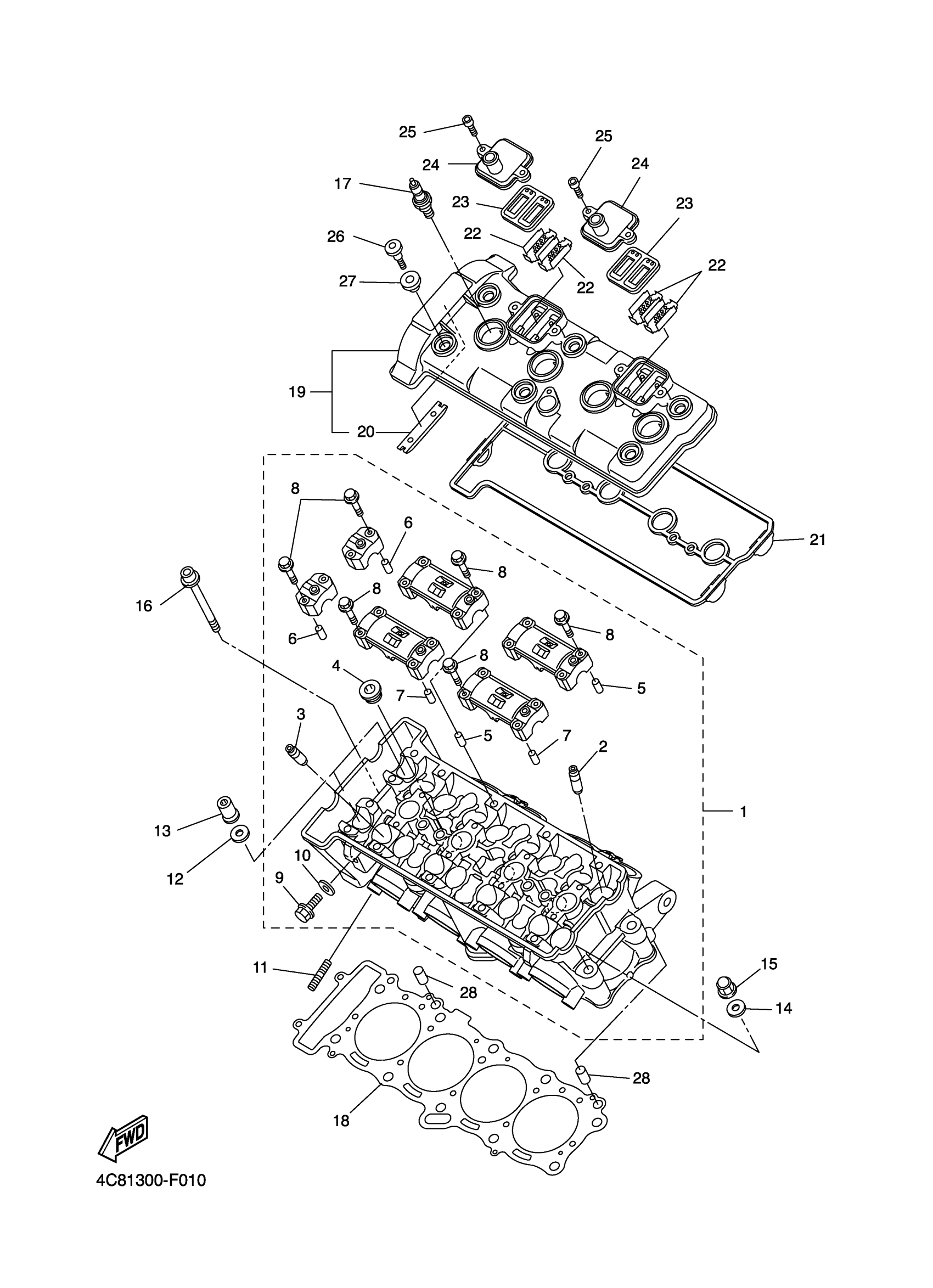

Yamaha YZFR1WC (YZFR1 CA) 4C85 2007 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

4C8-11101-00-00

Unavailable

2

GUIDE, VALVE 1

4C8-11133-10-00

$62.99

3

GUIDE, VALVE 2

4C8-11134-10-00

$45.99

4

PLUG, STRAIGHT SCREW

90340-18002-00

$10.49

5

PIN, DOWEL(3XW)

91808-16023-00

$8.49

6

PIN, DOWEL(3XW)

91808-16023-00

$8.49

7

PIN, DOWEL(3XW)

91808-16023-00

$8.49

8

BOLT, WASHER BASED

90105-06027-00

$7.49

9

BOLT, FLANGE(2UJ)

95024-06012-00

$4.41

10

GASKET 256113960000

90430-06014-00

Unavailable

11

BOLT, STUD

95612-08625-00

$7.49

12

WASHER, PLATE

90201-10050-00

$7.49

13

NUT (26H)

90179-10414-00

$11.49

14

WASHER, PLATE

90201-10050-00

$7.49

15

NUT, CROWN(2GG)

90176-10075-00

$8.49

16

BOLT, HEXAGON SOCKET HEAD

90110-06212-00

Unavailable

17

CR9EK NGK SPLUG 10PK

CR9-EK000-00-00

Unavailable

18

GASKET, CYLINDER HEAD 1

4C8-11181-00-00

Unavailable

19

COVER, CYLINDER HEAD 1

4C8-11191-00-00

Unavailable

20

GUIDE, STOPPER 2

5BE-12241-01-00

Unavailable

21

GASKET, HEAD COVER 1

4C8-11193-00-00

Unavailable

22

PLATE

5VY-1482K-00-00

Unavailable

23

REED VALVE ASSY

5SL-14890-10-00

Unavailable

24

CAP, CASE

5VY-14899-01-00

Unavailable

25

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

26

BOLT(4BP)

90109-066F0-00

Unavailable

27

RUBBER, MOUNT 1

5VY-1111G-00-00

Unavailable

28

PIN, DOWEL(3VD)

99530-10114-00

Unavailable
