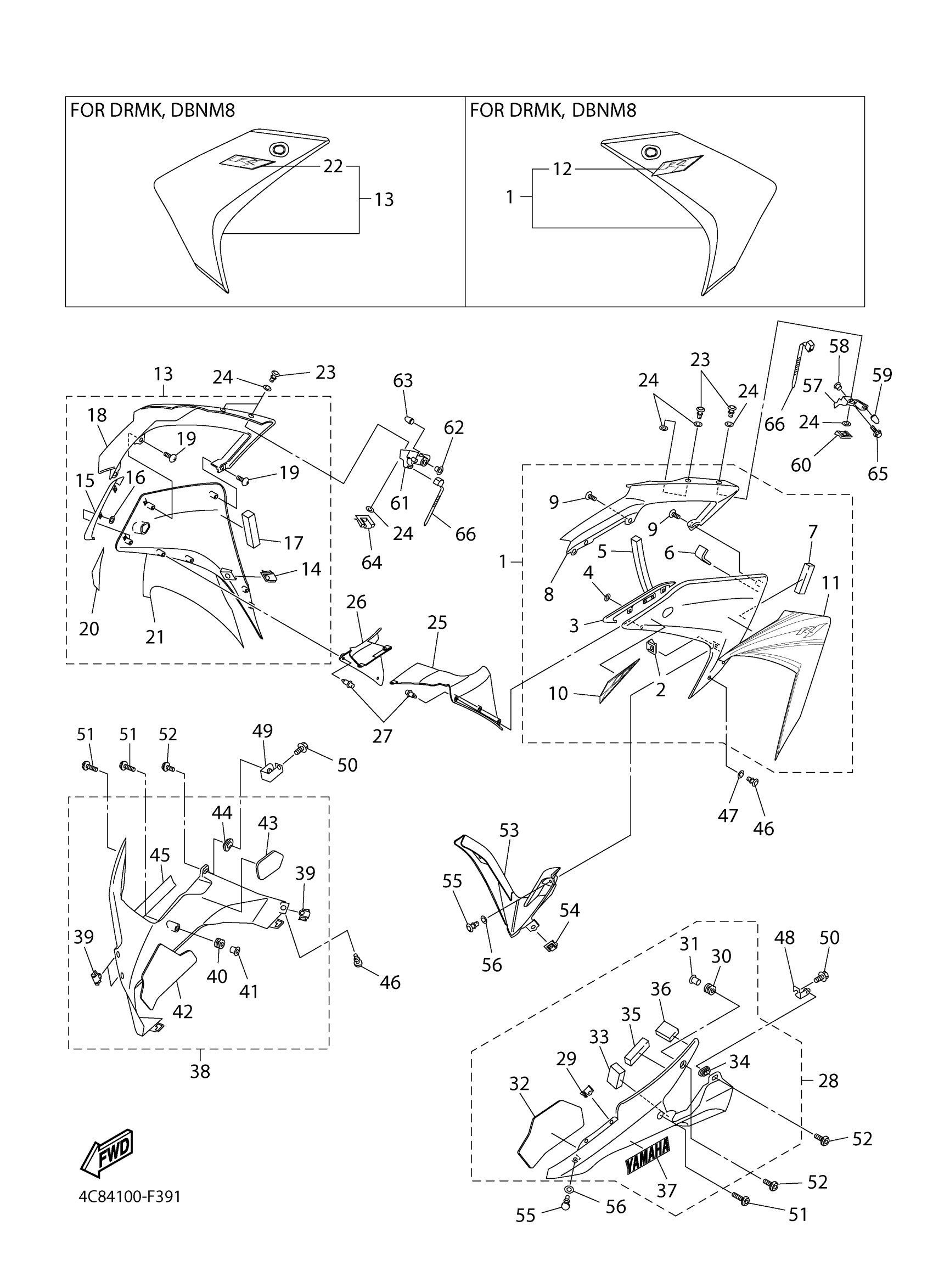

Yamaha YZFR1WC (YZFR1 CA) 4C85 2007 COWLING 2 Diagram
#
1
PANEL ASSEMBLY 1
4C8-Y283U-00-P0
Unavailable
1
PANEL ASSEMBLY 1
4C8-Y283U-30-P3
Unavailable
1
PANEL ASSEMBLY 1
4C8-Y283U-40-P3
Unavailable
3
. COVER 1
4C8-28219-00-00
Unavailable
5
DAMPER 3
4C8-28425-00-00
Unavailable
6
. DAMPER 4
4C8-28435-00-00
Unavailable
7
. DAMPER 1
4C8-28217-00-00
Unavailable
8
. COVER 7 (DEEP PURPLISH BLUE METALLIC C)
4C8-2117V-00-P0
Unavailable
8
. COVER 7 (DEEP RED METALLIC K)
4C8-2117V-00-P3
Unavailable
8
. COVER 7 (DARK BLUISH GRAY METALLIC 8)
4C8-2117V-00-P4
Unavailable
10
. GRAPHIC 19 (DEEP PURPLISH BLUE METALLIC C)
4C8-283B3-00-00
Unavailable
12
EMBLEM
4C8-28328-00-00
Unavailable
13
PANEL ASSEMBLY 2
4C8-Y283V-00-P0
Unavailable
13
PANEL ASSEMBLY 2
4C8-Y283V-30-P3
Unavailable
13
PANEL ASSEMBLY 2
4C8-Y283V-40-P3
Unavailable
15
COVER 2
4C8-28229-00-00
Unavailable
17
DAMPER 8
4C8-2847N-00-00
Unavailable
18
. COVER 8 (DEEP PURPLISH BLUE METALLIC C)
4C8-2117W-00-P0
Unavailable
18
. COVER 8 (DEEP RED METALLIC K)
4C8-2117W-00-P3
Unavailable
18
. COVER 8 (DARK BLUISH GRAY METALLIC 8)
4C8-2117W-00-P4
Unavailable
20
GRAPHIC 20
4C8-283B4-00-00
Unavailable
21
GRAPHIC 2
4C8-28392-00-00
Unavailable
22
EMBLEM
4C8-28328-00-00
Unavailable
23
HEAD
5PW-28386-00-00
Unavailable
24
WASHER, SPECIAL 1
2TK-21757-00-00
Unavailable
25
PANEL, INNER 1
4C8-2836K-00-00
Unavailable
26
PANEL, INNER 2
4C8-2836L-00-00
Unavailable
27
RIVET
90269-06008-00
Unavailable
28
COVER ASSY, UNDER
4C8-Y2808-00-P0
Unavailable
28
COVER ASSY, UNDER
4C8-Y2808-30-P3
Unavailable
28
COVER ASSY, UNDER (DARK BLUISH GRAY METALLIC 8)
4C8-Y2808-40-P0
Unavailable
30
GROMMET(4FM)
90480-12596-00
Unavailable
31
COLLAR
90387-06159-00
Unavailable
32
. SEAT 3
4C8-2848L-00-00
Unavailable
33
DAMPER 5
4C8-2837J-00-00
Unavailable
34
COLLAR
5TA-21749-00-00
Unavailable
35
DAMPER 1
4C8-28415-00-00
Unavailable
36
DAMPER 2
4C8-28416-00-00
Unavailable
37
. EMBLEM, YAMAHA (DEEP PURPLISH BLUE METALLIC C)
4C8-2153E-00-00
Unavailable
37
. EMBLEM, YAMAHA (DEEP RED METALLIC K)
4C8-2153E-30-00
Unavailable
37
EMBLEM, YAMAHA
4C8-2153E-40-00
Unavailable
38
COVER ASSY 2, UNDER
4C8-W2809-00-P0
Unavailable
38
COVER ASSY 2, UNDER
4C8-Y2809-30-P3
Unavailable
38
COVER ASSY 2, UNDER
4C8-Y2809-40-P0
Unavailable
40
GROMMET(4FM)
90480-12596-00
Unavailable
41
COLLAR
90387-06159-00
Unavailable
42
. SEAT 4
4C8-2848M-00-00
Unavailable
43
. SEAT 6
4C8-2848P-00-00
Unavailable
44
COLLAR
5TA-21749-00-00
Unavailable
45
. EMBLEM, YAMAHA (DEEP PURPLISH BLUE METALLIC C)
4C8-2153E-00-00
Unavailable
45
. EMBLEM, YAMAHA (DEEP RED METALLIC K)
4C8-2153E-30-00
Unavailable
45
EMBLEM, YAMAHA
4C8-2153E-40-00
Unavailable
46
HEAD
5PW-28386-00-00
Unavailable
47
WASHER, SPECIAL 1
2TK-21757-00-00
Unavailable
48
BRACKET 1
4C8-2836A-00-00
Unavailable
49
BRACKET 2
4C8-2836E-00-00
Unavailable
50
BOLT
90109-06056-00
Unavailable
51
BOLT
90111-06030-00
Unavailable
52
SCREW
90149-06105-00
Unavailable
53
PANEL, INNER 3
4C8-2836M-00-00
Unavailable
55
HEAD
5PW-28386-00-00
Unavailable
56
WASHER, SPECIAL 1
2TK-21757-00-00
Unavailable
57
BRACKET 3
4C8-2836F-01-00
Unavailable
58
COLLAR (8G8)
90387-06681-00
Unavailable
59
DAMPER 2
2MG-21639-00-00
Unavailable
61
BRACKET 4
4C8-2836G-01-00
Unavailable
62
COLLAR (8G8)
90387-06681-00
Unavailable
63
DAMPER 2
2MG-21639-00-00
Unavailable
65
BOLT, WITH WASHER
90119-06226-00
Unavailable
66
CLAMP
90464-13077-00
Unavailable
