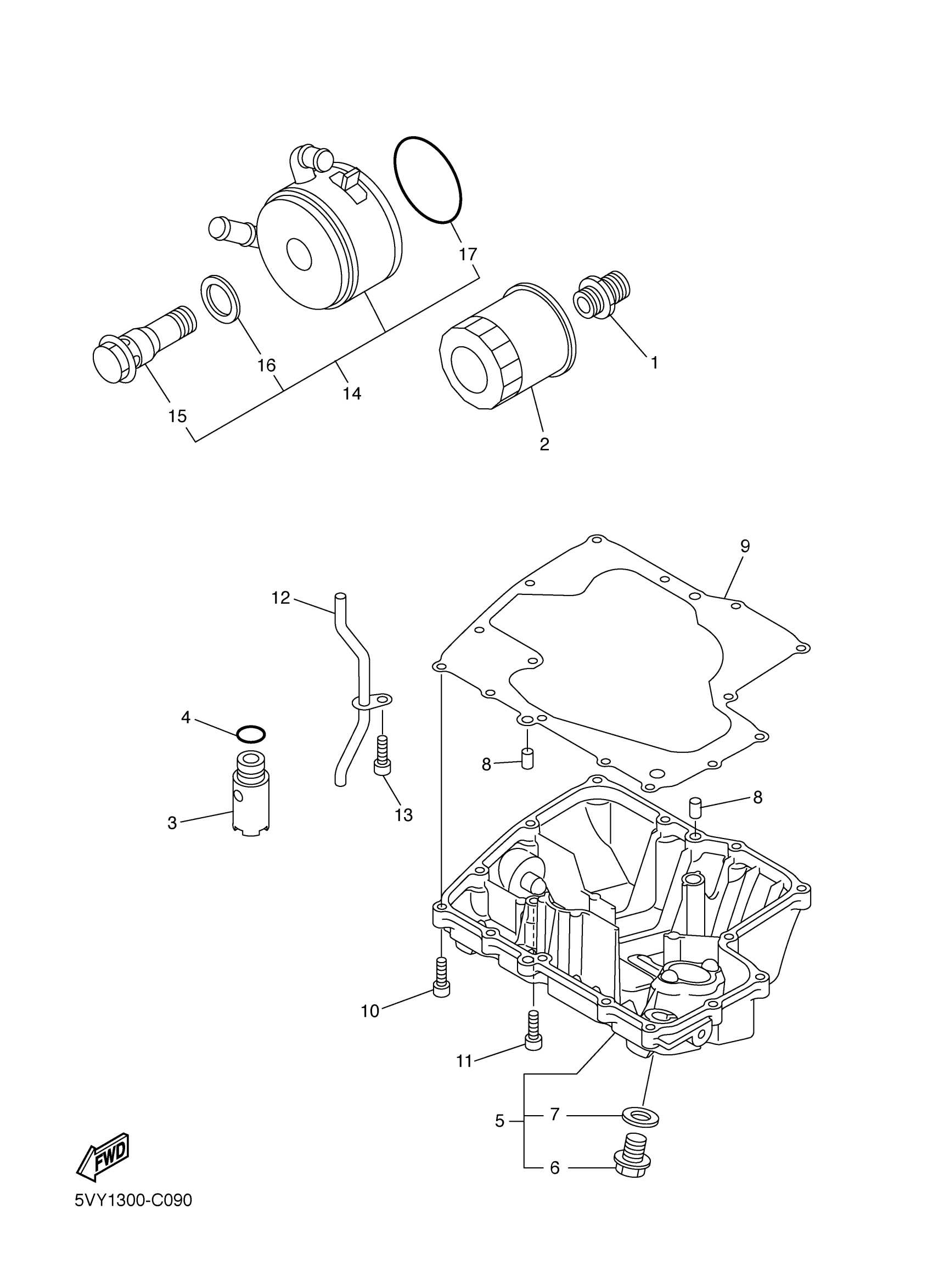

Yamaha YZFR1VC (YZFR1 CA) 5VYJ 2006 OIL CLEANER Diagram

#

Description
Price

1

BOLT, UNION

90401-20007-00

Unavailable

2

ELEMENT ASSY, OIL CLEANER

5GH-13440-72-00

$16.49

3

RELIEF VALVE ASSY

5VY-13490-00-00

Unavailable

4

O-RING (22U)

93210-15566-00

$7.49

5

COVER, STRAINER

5VY-13417-10-00

Unavailable

6

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

7

GASKET

214-11198-01-00

$3.17

8

PIN, DOWEL

99530-08012-00

Unavailable

9

GASKET, STRAINER COVER

5VY-13414-01-00

$24.99

10

BOLT,SOCKET

91317-06025-00

$5.60

11

BOLT,SOCKET

91317-06025-00

$5.60

12

PIPE, DELIVERY 1

5VY-13161-00-00

Unavailable

13

BOLT,SOCKET

91317-06012-00

$8.49

14

OIL COOLER ASSY

5VY-13470-00-00

Unavailable

15

BOLT, UNION

5EB-12822-00-00

$74.99

16

GASKET

5EB-13475-00-00

Unavailable

17

O-RING

5JW-13473-00-00

Unavailable
