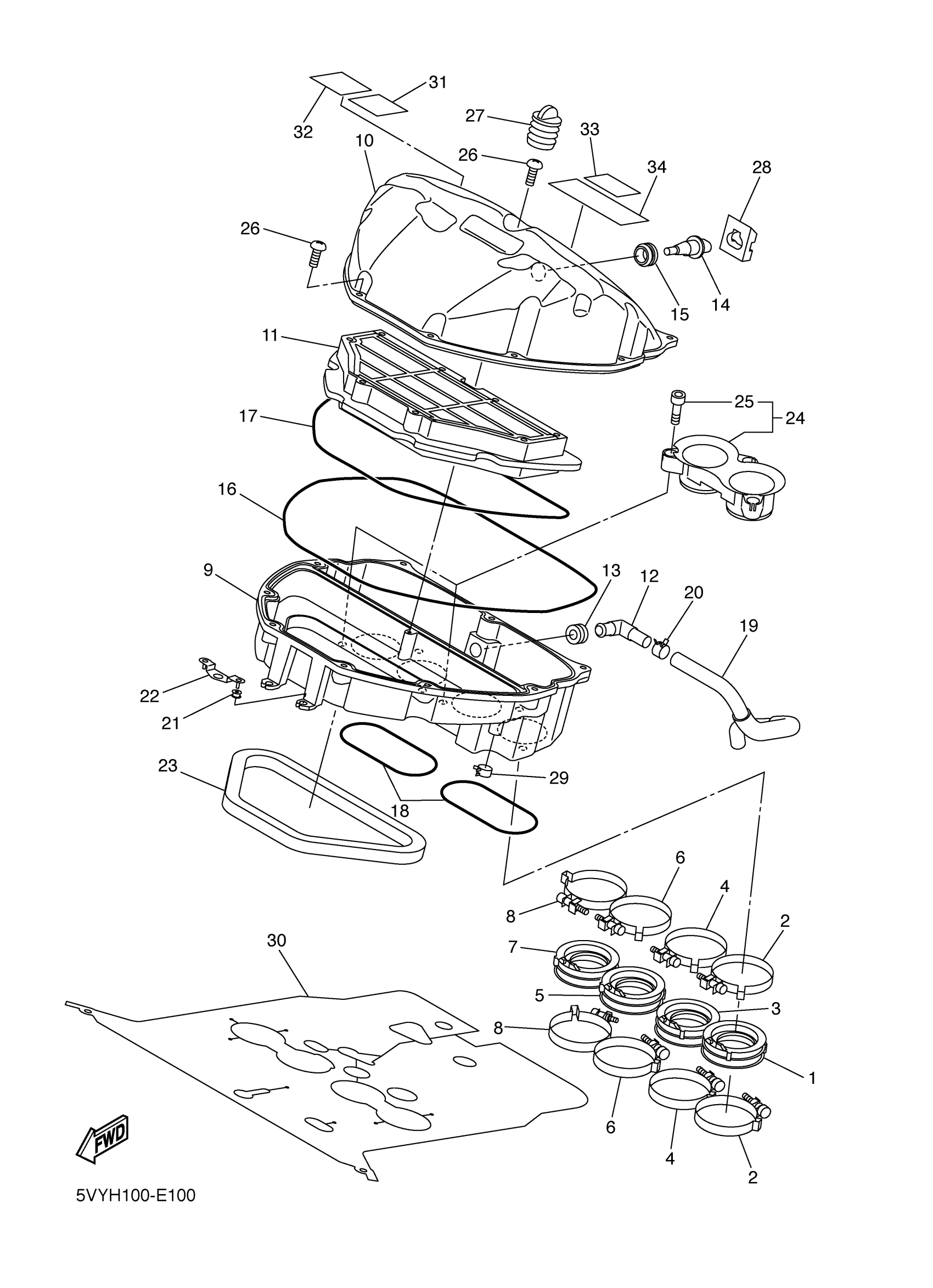

Yamaha YZFR1VC (YZFR1 CA) 5VYJ 2006 INTAKE Diagram

#

Description

Price

1

JOINT

5VY-13595-00-00

$37.99

2

HOSE CLAMP ASSY

90450-62004-00

Unavailable

3

JOINT, CARBURETOR 2

5VY-13596-00-00

Unavailable

4

HOSE CLAMP ASSY

90450-62004-00

Unavailable

5

JOINT, CARBURETOR 3

5VY-13597-00-00

Unavailable

6

HOSE CLAMP ASSY

90450-62004-00

Unavailable

7

JOINT, CARBURETOR 4

5VY-13598-00-00

Unavailable

8

HOSE CLAMP ASSY

90450-62004-00

Unavailable

9

CASE, AIR CLEANER 1

5VY-14411-00-00

Unavailable

10

CASE, AIR CLEANER 2

5VY-14421-00-00

Unavailable

11

ELEMENT, AIR CLEANER

5VY-14451-00-00

$46.99

12

PIPE

5VY-14419-00-00

Unavailable

13

GROMMET

31A-14435-01-00

$4.47

14

SENSOR,AIR TEMPRATURE

5CA-85886-00-00

$40.99

15

GROMMET

5VY-14435-00-00

Unavailable

16

SEAL

5VY-14452-00-00

Unavailable

17

SEAL

5VY-14462-00-00

Unavailable

18

SEAL

5VY-14457-00-00

Unavailable

19

PIPE, BREATHER 2

5VY-15393-00-00

Unavailable

20

CLIP

90467-160A1-00

Unavailable

21

GROMMET (3Y2)

90480-08264-00

Unavailable

22

STAY 1

5VY-14498-00-00

Unavailable

23

SEAL

5VY-14467-00-00

Unavailable

24

JOINT ASSY

5VY-1440B-00-00

Unavailable

25

BOLT

90109-05005-00

Unavailable

26

SCREW, BINDING

90154-05021-00

Unavailable

27

PLUG

5VY-14862-00-00

Unavailable

28

DAMPER 1

5VY-14425-00-00

Unavailable

29

CLIP (371)

90467-14015-00

Unavailable

30

PROTECTOR, HEAT

5VY-12682-01-00

Unavailable

31

PLATE, ROUTING

5SL-21684-00-00

Unavailable

32

PLATE, ROUTING 2

5SL-21686-00-00

Unavailable

33

LABEL

5VY-2178A-00-00

Unavailable

34

PLATE, EPA 2 (CALIFORNIA)

5VY-2179R-20-00

Unavailable

34

PLATE, EPA (NON CALIFORNIA)

5VY-2179W-00-00

Unavailable
