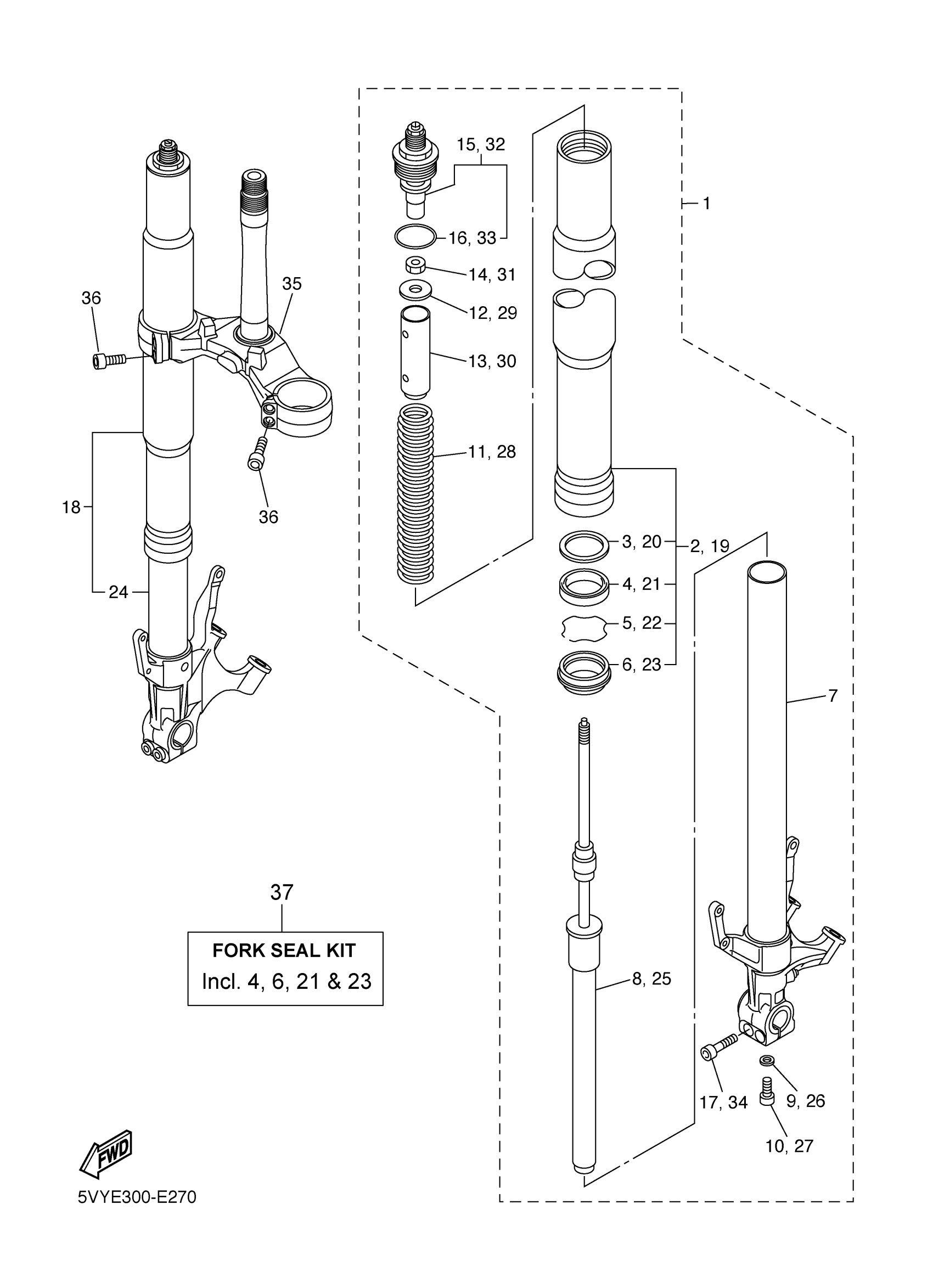

Yamaha YZFR1VC (YZFR1 CA) 5VYJ 2006 FRONT FORK Diagram
#
1
FRONT FORK ASSY (L.H)
5VY-23102-30-00
Unavailable
1
FRONT FORK ASSY (L.H)
5VY-23102-50-00
Unavailable
2
.. TUBE, OUTER (RIGHT)
5VY-23136-30-00
Unavailable
2
. TUBE, OUTER (RIGHT)
5VY-23136-50-00
Unavailable
7
.. INNER TUBE COMP 1
5VY-23110-30-00
Unavailable
8
. CYLINDER COMP, FRONT FORK
5VY-23170-30-00
Unavailable
10
BOLT, HEXAGON SOCKET HEAD
5UX-23181-00-00
Unavailable
11
. SPRING, FRONT FORK
5VY-23141-30-00
Unavailable
13
SPACER
5VY-23118-00-00
Unavailable
14
NUT
3LC-23357-00-00
Unavailable
15
BOLT, CAP
5VY-23111-00-00
Unavailable
15
. BOLT, CAP
5VY-23111-20-00
Unavailable
16
O-RING
3XJ-23147-L0-00
Unavailable
17
BOLT,SOCKET
91314-08040-00
Unavailable
18
FRONT FORK ASSY (R.H)
5VY-23103-30-00
Unavailable
18
FRONT FORK ASSY (R.H)
5VY-23103-50-00
Unavailable
19
.. TUBE, OUTER (RIGHT)
5VY-23136-30-00
Unavailable
19
. TUBE, OUTER (RIGHT)
5VY-23136-50-00
Unavailable
24
INNER TUBE COMP.2
5VY-23120-30-00
Unavailable
25
. CYLINDER COMP, FRONT FORK
5VY-23170-30-00
Unavailable
27
BOLT, HEXAGON SOCKET HEAD
5UX-23181-00-00
Unavailable
28
. SPRING, FRONT FORK
5VY-23141-30-00
Unavailable
30
SPACER
5VY-23118-00-00
Unavailable
31
NUT
3LC-23357-00-00
Unavailable
32
BOLT, CAP
5VY-23111-00-00
Unavailable
32
. BOLT, CAP
5VY-23111-20-00
Unavailable
33
O-RING
3XJ-23147-L0-00
Unavailable
34
BOLT,SOCKET
91314-08040-00
Unavailable
35
UNDER BRACKET COMP.
5VY-23340-30-00
Unavailable
36
BOLT,SOCKET
91314-08030-00
Unavailable
37
FORK SEAL KIT (TWO FORKS)
4PU-W003B-00-00
Unavailable
