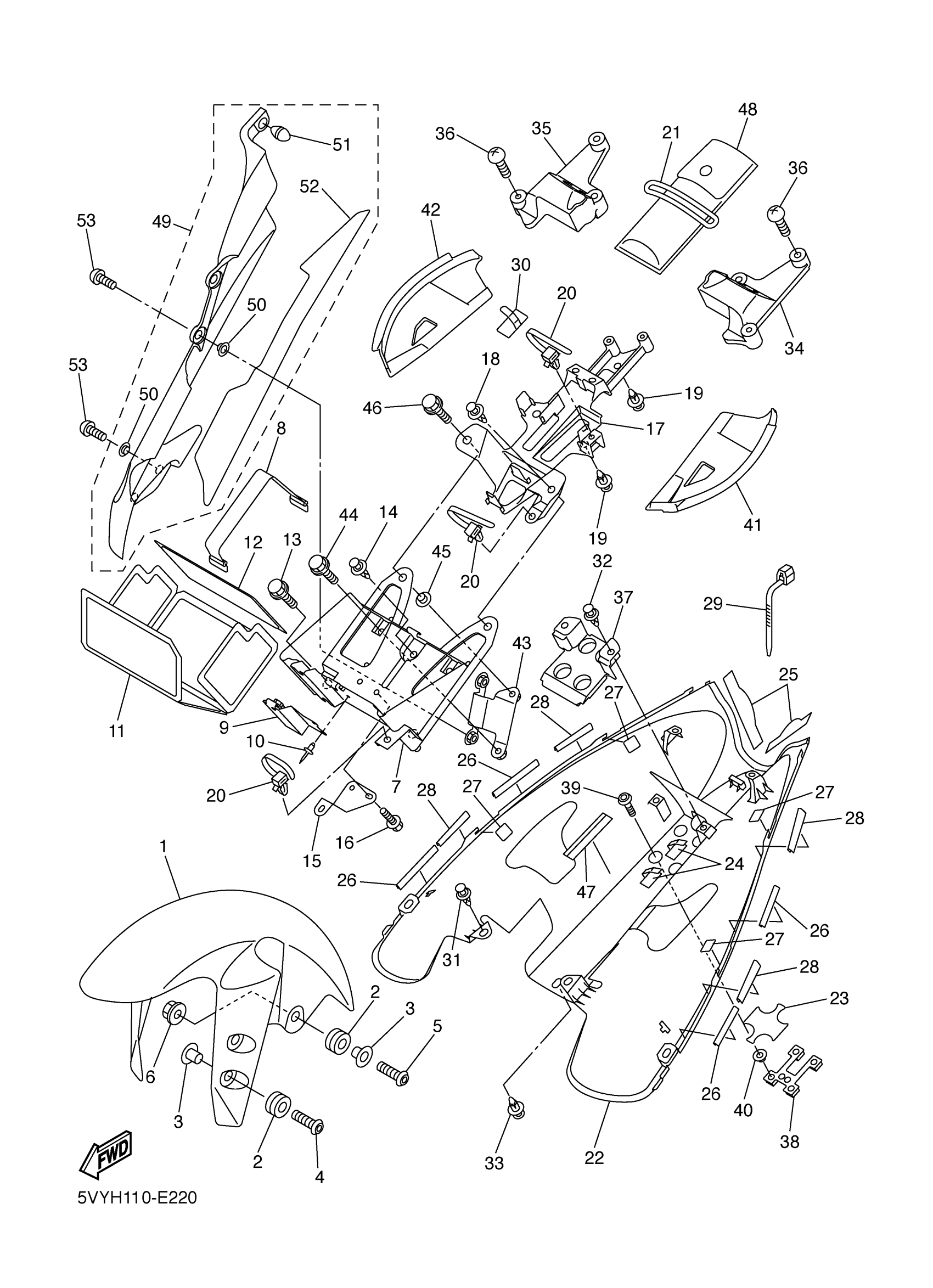

Yamaha YZFR1VC (YZFR1 CA) 5VYJ 2006 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

5PW-21511-01-33

Unavailable

1

FENDER, FRONT

5PW-21511-02-P1

$214.99

1

FENDER, FRONT

5PW-21511-02-P6

Unavailable

2

GROMMET(53Y)

90480-12072-00

$8.49

3

COLLAR

90387-06159-00

$8.49

4

BOLT

90111-06043-00

$4.46

5

BOLT

90111-06030-00

$4.41

6

NUT, FLANGE(4MV)

95707-06500-00

$1.23

7

BOX, BATTERY 1

5VY-8212B-00-00

Unavailable

8

BAND, BATTERY

133-82131-00-00

$27.99

9

BRACKET, FENDER

5VY-21617-00-00

Unavailable

10

RIVET, BLIND

90267-32161-00

Unavailable

11

SEAT, BATTERY

5VY-82122-00-00

Unavailable

12

SEAT, BATTERY

5VY-82123-00-00

Unavailable

13

BOLT

90109-06043-00

Unavailable

14

RIVET(4JH)

90269-07076-00

Unavailable

15

STAY 2

5VY-2164G-00-00

Unavailable

16

BOLT, FLANGE

95817-06016-00

Unavailable

17

BOX, BATTERY 2

5VY-8212C-00-00

Unavailable

18

RIVET(4JH)

90269-07076-00

Unavailable

19

RIVET(4PH)

90269-07077-00

Unavailable

20

CLAMP(2TV)

90464-10112-00

Unavailable

21

BAND, TOOL

4XV-21376-00-00

Unavailable

22

FENDER, REAR (DEEP PURPLISH BLUE METALLIC C)

5VY-21611-00-P1

Unavailable

22

FENDER, REAR (BLACK METALLIC X)

5VY-21611-00-P4

Unavailable

22

FENDER, REAR (REDDISH YELLOW COCKTAIL 1)

5VY-21611-00-P5

Unavailable

23

SEAL

5VY-21669-00-00

Unavailable

24

CLAMP

90465-04020-00

Unavailable

25

DAMPER 2

5VY-21639-00-00

Unavailable

26

SEAL 1

5PW-21732-00-00

Unavailable

27

SEAL

1UF-15379-00-00

Unavailable

28

SEAL 1

5VY-21732-00-00

Unavailable

29

CLAMP(4FM)

90464-15195-00

Unavailable

30

CLAMP

90465-04020-00

Unavailable

31

RIVET

90269-06081-00

Unavailable

32

RIVET

90269-06081-00

Unavailable

33

RIVET(4PH)

90269-07077-00

Unavailable

34

COVER, REAR FENDER 1

5VY-2163A-00-00

Unavailable

35

COVER, REAR FENDER 2

5VY-2163E-00-00

Unavailable

36

SCREW, TRUSS TAP.

97707-50014-00

Unavailable

37

PROTECTOR

5VY-21652-00-00

Unavailable

38

BRACKET 6

5VY-2161G-00-00

Unavailable

39

BOLT,HEX. SOCKET BUTTON

90111-06053-00

Unavailable

40

COLLAR

90387-06071-00

Unavailable

41

PATCH 5

5VY-2164K-00-00

Unavailable

42

PATCH 6

5VY-2164L-00-00

Unavailable

43

STAY 1

5VY-2164F-00-00

Unavailable

44

BOLT, WITH WASHER

90119-05009-00

Unavailable

45

COLLAR

90387-05017-00

Unavailable

46

BOLT, WITH WASHER(3RB)

90119-05193-00

Unavailable

47

LABEL, CAUTION

3JJ-28446-A2-00

Unavailable

48

TOOL KIT

5VY-28100-00-00

Unavailable

49

PROTECTOR ASSY

5VY-27490-00-00

Unavailable

50

COLLAR(4JX)

90387-0603J-00

Unavailable

51

DAMPER, MUFFLER 2

5VY-14757-00-00

Unavailable

52

SEAT 1

5VY-2838G-00-00

Unavailable

53

SCREW(3XV)

90149-06298-00

Unavailable
