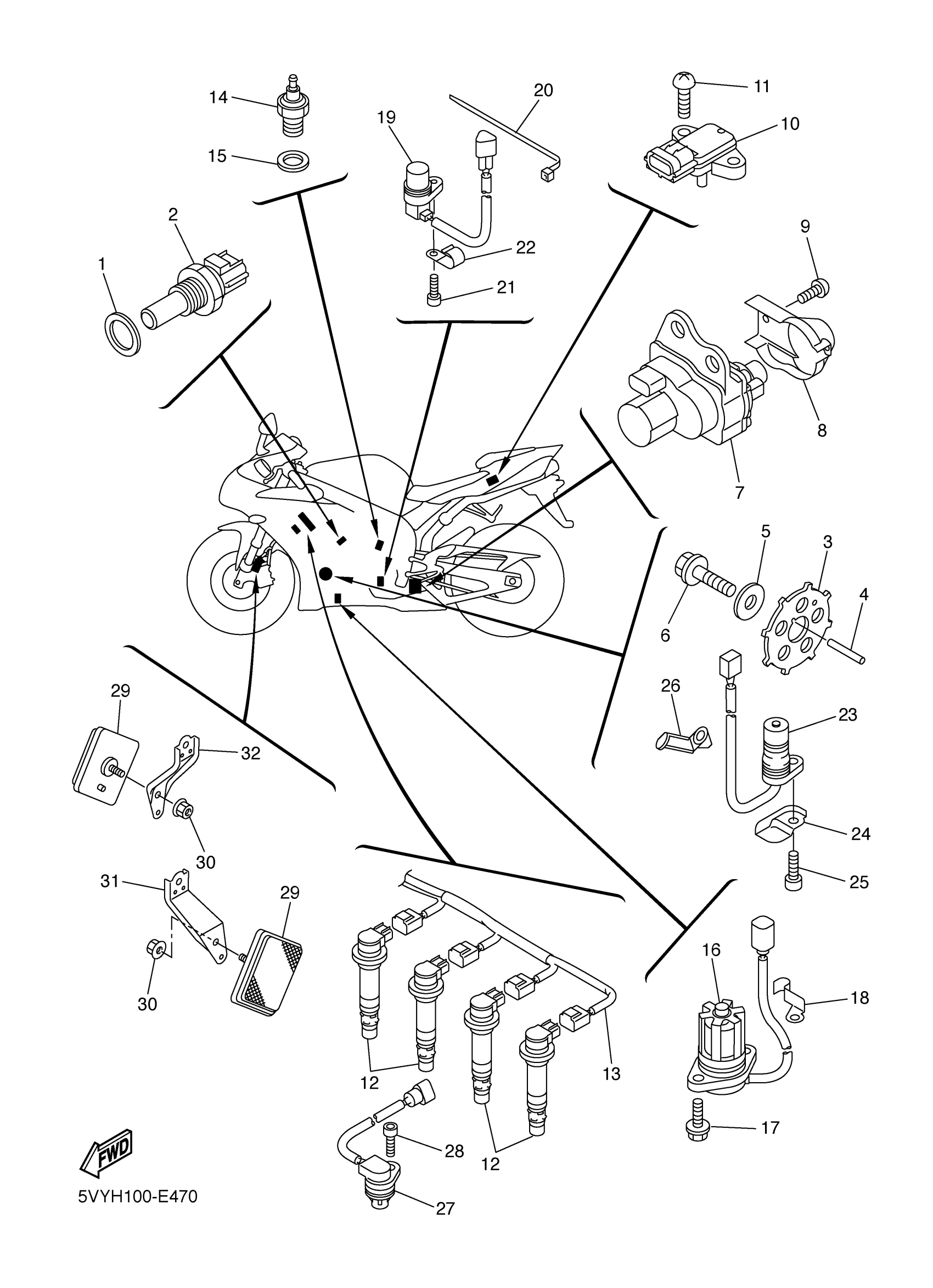

Yamaha YZFR1VC (YZFR1 CA) 5VYJ 2006 ELECTRICAL 1 Diagram

#

Description
Price

1

WASHER, PLATE

90201-12790-00

$9.49

2

THERMOSENSOR ASSY

8CC-85790-01-00

$95.99

3

ROTOR

5VY-81673-00-00

Unavailable

4

KEY, STRAIGHT

90282-03001-00

$11.49

5

WASHER, PLATE

90201-10039-00

$7.49

6

BOLT (30X)

90105-10290-00

Unavailable

7

SERVO MOTOR ASSY

5VY-85820-11-00

Unavailable

8

COVER, SERVO MOTOR

5VY-85829-01-00

Unavailable

9

SCREW, PANHEAD TAPPING (682)

97780-50514-00

Unavailable

10

SENSOR, PRESSURE

5VX-82380-00-00

$229.99

11

SCREW, TAPPING(4TV)

90167-05078-00

$8.49

12

IGNITION COIL ASSY

5VY-82310-00-00

$174.99

13

WIRE, SUB LEAD

5VY-82309-00-00

Unavailable

14

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

15

GASKET (1KH,1.0T)

90430-10148-00

$5.60

16

OIL LEVEL GAUGE ASSY

5VY-85720-00-00

Unavailable

17

BOLT, FLANGE

95022-06016-00

Unavailable

18

CLAMP

90465-08053-00

Unavailable

19

SENSOR, SPEED

4XV-83755-04-00

Unavailable

20

CLAMP

90464-51001-00

Unavailable

21

BOLT,SOCKET

91317-06016-00

Unavailable

22

CLAMP

90462-08039-00

Unavailable

23

PICK-UP ASSY

5VY-81670-02-00

Unavailable

24

PLATE

5VY-15589-02-00

Unavailable

25

BOLT,SOCKET

91317-06016-00

Unavailable

26

CLAMP

90465-08054-00

Unavailable

27

SENSOR, CAM POSITION

5VY-85896-02-00

Unavailable

28

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

29

FRONT REFLECTOR ASSY

23V-85110-00-00

Unavailable

30

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

31

BRACKET, REFLECTOR 1

5VY-85112-00-00

Unavailable

32

BRACKET, REFLECTOR 2

5VY-85122-00-00

Unavailable
