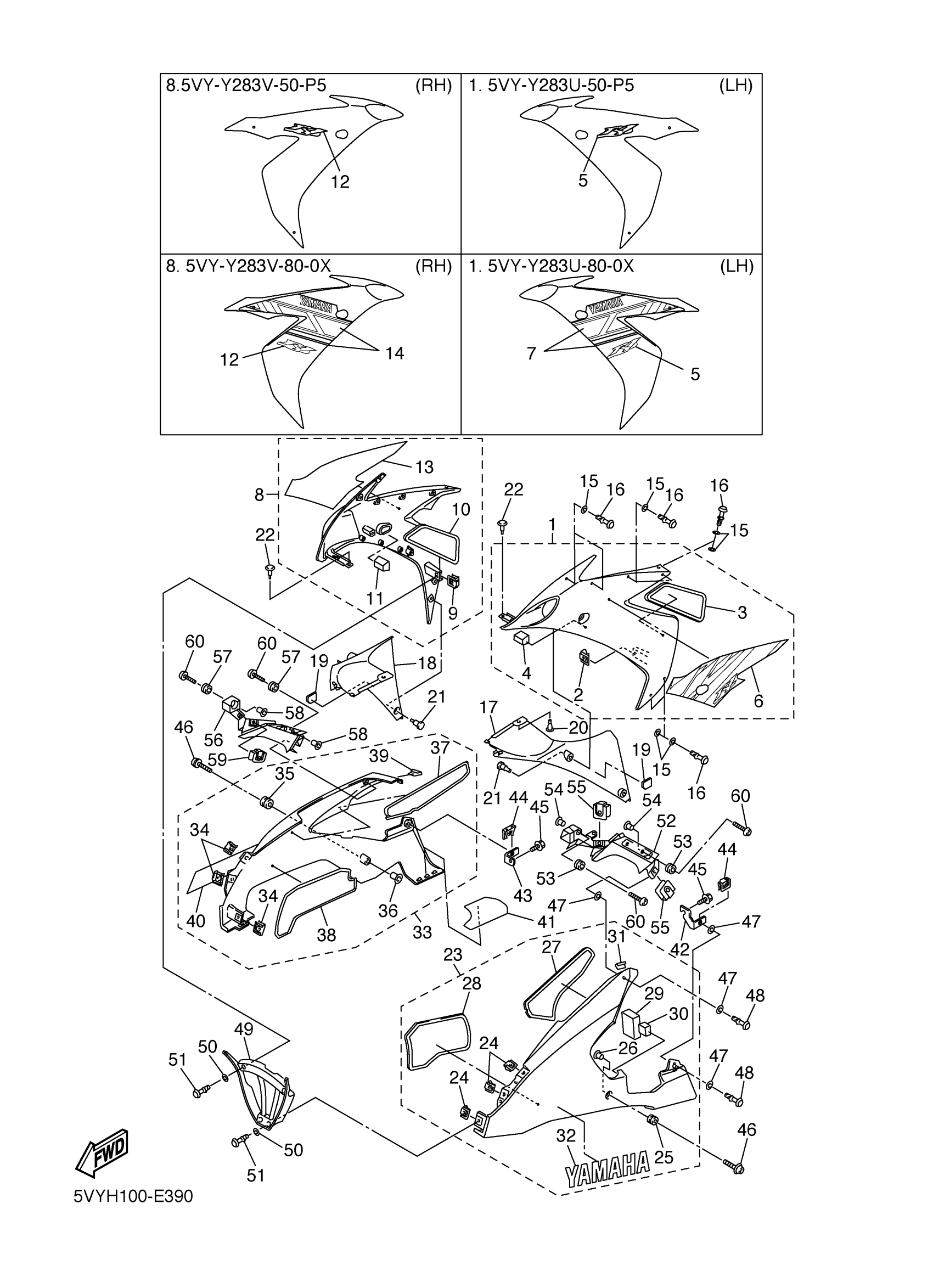

Yamaha YZFR1VC (YZFR1 CA) 5VYJ 2006 COWLING 2 Diagram
#
1
PANEL ASSEMBLY 1 (DEEP PURPLISH BLUE METALLIC C)
5VY-Y283U-70-P1
Unavailable
1
PANEL ASSY 1
5VY-W283U-80-0X
Unavailable
3
. SEAT
5VY-2848H-00-00
Unavailable
5
EMBLEM 1
5VY-2834C-30-00
Unavailable
5
. EMBLEM 1 (REDDISH YELLOW COCKTAIL 1)
5VY-2834C-50-00
Unavailable
6
GRAPHIC 1
5VY-28391-20-00
Unavailable
7
GRAPHIC SET
5VY-283B1-10-00
Unavailable
8
PANEL ASSEMBLY 2
5VY-Y283V-50-P5
Unavailable
8
PANEL ASSEMBLY 2 (DEEP PURPLISH BLUE METALLIC C)
5VY-Y283V-70-P1
Unavailable
8
PANEL ASSEMBLY 2 (REDDISH YELLOW COCKTAIL 1) (BLUISH WHITE COCKTAIL 1)
5VY-Y283V-80-0X
Unavailable
10
. SEAT 2
5VY-2848K-00-00
Unavailable
11
. STAY, LEG SHIELD
5VY-28332-00-00
Unavailable
12
. EMBLEM 2 (BLACK METALLIC X)
5VY-2835C-30-00
Unavailable
12
. EMBLEM 2 (REDDISH YELLOW COCKTAIL 1)
5VY-2835C-50-00
Unavailable
13
GRAPHIC 2
5VY-28392-20-00
Unavailable
14
. GRAPHIC SET (REDDISH YELLOW COCKTAIL 1)
5VY-283B2-10-00
Unavailable
15
WASHER, SPECIAL 1
2TK-21757-00-00
Unavailable
16
HEAD
5PW-28386-00-00
Unavailable
17
PANEL, INNER 1
5VY-2836K-00-00
Unavailable
18
PANEL, INNER 2
5VY-2836L-00-00
Unavailable
19
HOOK 3
5VY-28494-00-00
Unavailable
20
RIVET(4PH)
90269-07077-00
Unavailable
21
RIVET
90269-06081-00
Unavailable
22
RIVET(4PH)
90269-07077-00
Unavailable
23
COVER ASSY, UNDER
5VY-Y2808-00-P3
Unavailable
23
COVER ASSY, UNDER (YAMAHA BLACK) (REDDISH YELLOW COCKTAIL 1)
5VY-Y2808-20-33
Unavailable
23
COVER ASSY, UNDER (MAT BLACK 2) (DEEP PURPLISH BLUE METALLIC C)
5VY-Y2808-20-P0
Unavailable
25
GROMMET(4FM)
90480-12596-00
Unavailable
26
COLLAR
90387-06159-00
Unavailable
27
. SEAT 3
5VY-2848L-00-00
Unavailable
28
SEAT 5
5VY-2848N-00-00
Unavailable
29
DAMPER 5
5VY-2837J-00-00
Unavailable
30
DAMPER 6
5VY-2837K-00-00
Unavailable
31
SEAL
5VY-28307-00-00
Unavailable
32
EMBLEM, YAMAHA
5JJ-2153E-00-00
Unavailable
32
EMBLEM, YAMAHA
5JJ-2153E-10-00
Unavailable
33
COVER ASSY 2, UNDER (BLACK METALLIC X)
5VY-Y2809-00-P3
Unavailable
33
COVER ASSY 2, UNDER (YAMAHA BLACK) (REDDISH YELLOW COCKTAIL 1)
5VY-Y2809-20-33
Unavailable
33
COVER ASSY 2, UNDER (MAT BLACK 2) (DEEP PURPLISH BLUE METALLIC C)
5VY-Y2809-20-P0
Unavailable
35
GROMMET(4FM)
90480-12596-00
Unavailable
36
COLLAR
90387-06159-00
Unavailable
37
. SEAT 4
5VY-2848M-00-00
Unavailable
38
. SEAT 6
5VY-2848P-00-00
Unavailable
39
SEAL
5VY-28307-00-00
Unavailable
40
EMBLEM, YAMAHA
5JJ-2153E-00-00
Unavailable
40
EMBLEM, YAMAHA
5JJ-2153E-10-00
Unavailable
41
SEAT 7
5VY-2848R-00-00
Unavailable
42
BRACKET 1
5VY-2836A-00-00
Unavailable
43
BRACKET 2
5VY-2836E-00-00
Unavailable
45
BOLT
90109-06056-00
Unavailable
46
SCREW(4DN)
90149-06302-00
Unavailable
47
WASHER, SPECIAL 1
2TK-21757-00-00
Unavailable
48
HEAD
5PW-28386-00-00
Unavailable
49
PANEL, INNER 3
5VY-2836M-00-00
Unavailable
50
WASHER, SPECIAL 1
2TK-21757-00-00
Unavailable
51
HEAD
5PW-28386-00-00
Unavailable
52
COVER 7
5VY-2117V-00-00
Unavailable
53
GROMMET(4FM)
90480-12596-00
Unavailable
54
COLLAR
90387-06159-00
Unavailable
56
COVER 8
5VY-2117W-00-00
Unavailable
57
GROMMET(4FM)
90480-12596-00
Unavailable
58
COLLAR
90387-06159-00
Unavailable
60
BOLT
90111-06030-00
Unavailable
