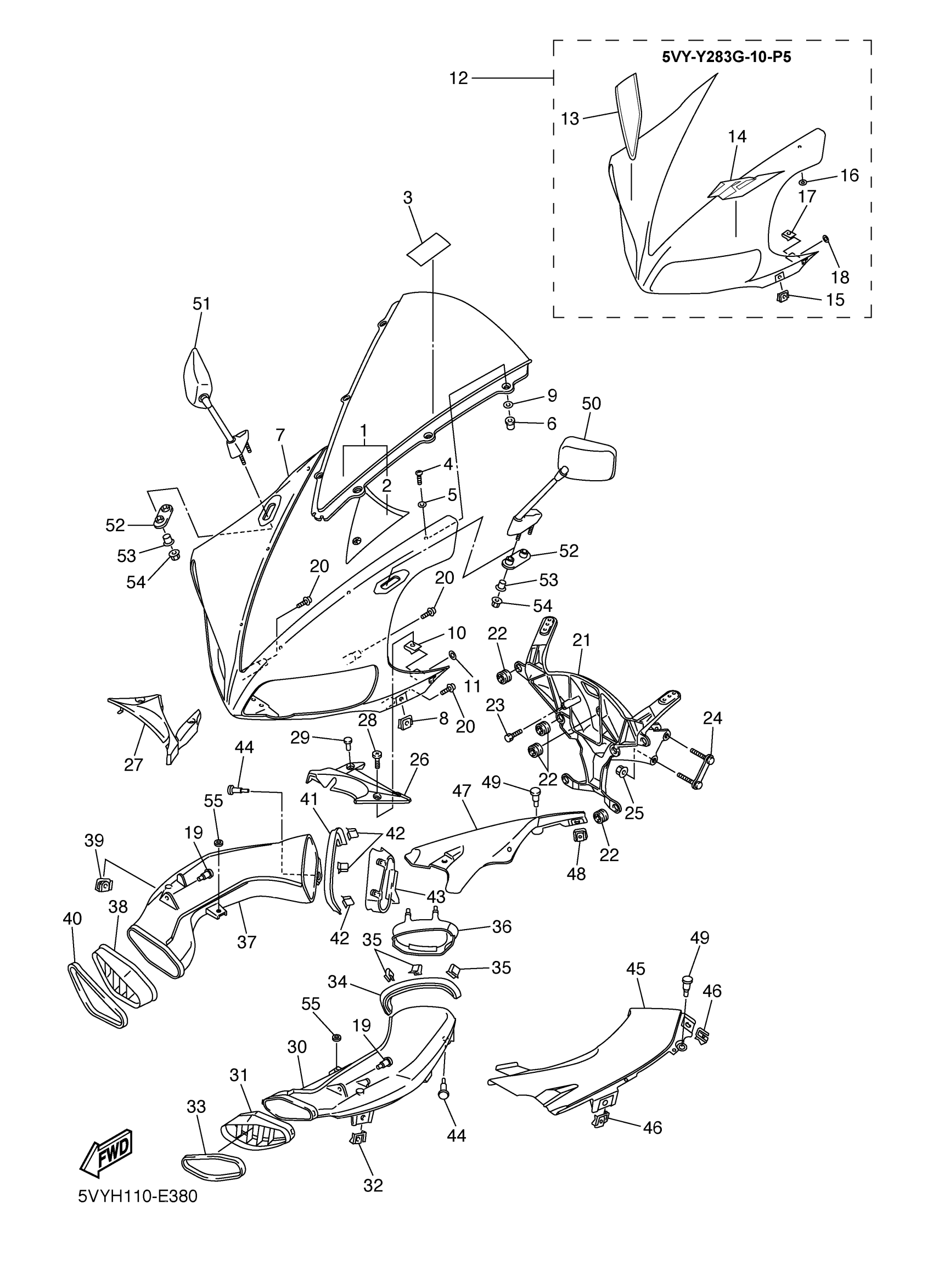

Yamaha YZFR1VC (YZFR1 CA) 5VYJ 2006 COWLING 1 Diagram

#

Description
Price

1

WINDSHIELD

5VY-Y2881-11-00

Unavailable

2

. GRAPHIC 18

5VY-2832P-00-00

Unavailable

3

LABEL, CAUTION

5JW-2835Y-00-00

Unavailable

4

SCREW, ROUND HEAD(1UX)

90150-05024-00

$5.60

5

WASHER, PLATE (5F9)

90202-05123-00

Unavailable

6

NUT(1KT)

90179-05523-00

$8.49

7

BODY, FRONT UPPER 1

5VY-2835G-01-P1

$167.99

7

Body Front Upper 1

5VY-2835G-01-P4

$166.99

8

PLATE, SPRING

5PW-2177L-01-00

$6.99

9

PROTECTOR 2

5JJ-2834W-00-00

$7.99

10

NUT, SPRING(3YX)

90183-05074-00

Unavailable

11

PROTECTOR 1

5VY-2834V-00-00

$7.99

12

BODY, FRONT UPPER 1

5VY-W283G-10-P5

$278.99

13

GRAPHIC 13

5VY-2832L-00-00

Unavailable

14

. EMBLEM

5VY-28315-00-00

Unavailable

15

PLATE, SPRING

5PW-2177L-01-00

$6.99

16

PROTECTOR 2

5JJ-2834W-00-00

$7.99

17

NUT, SPRING(3YX)

90183-05074-00

Unavailable

18

PROTECTOR 1

5VY-2834V-00-00

$7.99

19

RIVET

90269-07007-00

Unavailable

20

SCREW, ROUND TAPPING

90160-05007-00

Unavailable

21

STAY 1

5VY-28356-00-00

Unavailable

22

DAMPER

4XV-83513-00-00

Unavailable

23

BOLT, SOCKET

91317-05012-00

Unavailable

24

PLATE

4XV-28336-00-00

Unavailable

25

NUT, SELF-LOCKING

90185-08169-00

Unavailable

26

PANEL, CONSOLE 1

5VY-2837L-01-00

Unavailable

27

PANEL, CONSOLE 2

5VY-2837M-01-00

Unavailable

28

SCREW, BINDING (10V)

90154-05013-00

Unavailable

29

RIVET

90269-06001-00

Unavailable

30

DUCT 1 (DEEP PURPLISH BLUE METALLIC C) (DEEP RED METALLIC K)

5VY-2838N-00-P0

Unavailable

30

DUCT 1

5VY-2838N-00-P3

Unavailable

30

DUCT 1

5VY-2838N-00-P5

Unavailable

31

GRILL, AIR INTAKE 1

5VY-2837N-00-00

Unavailable

32

PLATE, SPRING

5PW-2177L-01-00

$6.99

33

MOLE 2

5VY-28346-00-00

Unavailable

34

DAMPER 1

5VY-2834E-00-00

Unavailable

35

GUIDE

1FK-2171H-00-00

Unavailable

36

DAMPER

5VY-28371-00-00

Unavailable

37

DUCT 2

5VY-2838R-00-P0

Unavailable

37

DUCT 2

5VY-2838R-00-P3

Unavailable

37

DUCT 2

5VY-2838R-00-P5

Unavailable

38

GRILL, AIR INTAKE 2

5VY-2837R-00-00

Unavailable

39

PLATE, SPRING

5PW-2177L-01-00

$6.99

40

MOLE 2

5VY-28346-00-00

Unavailable

41

DAMPER

5VY-2834F-00-00

Unavailable

42

GUIDE

1FK-2171H-00-00

Unavailable

43

DAMPER

5VY-28372-00-00

Unavailable

44

RIVET

90269-07007-00

Unavailable

45

GRILL, AIR OUTLET 1

5VY-2837V-00-00

Unavailable

46

PLATE, SPRING

5PW-2177L-01-00

$6.99

47

GRILL, AIR OUTLET 2

5VY-2837W-00-00

Unavailable

48

PLATE, SPRING

5PW-2177L-01-00

$6.99

49

RIVET

90269-06081-00

Unavailable

50

REAR VIEW MIRROR ASSY (LEFT)

5VY-26280-00-00

Unavailable

51

REAR VIEW MIRROR ASSY (RIGHT)

5VY-26290-00-00

Unavailable

52

PLATE, MIRROR FITTING 1

5VY-26298-00-00

Unavailable

53

COLLAR

90387-06106-00

Unavailable

54

NUT, CROWN(1FN)

90176-06055-00

Unavailable

55

DAMPER

5SL-84753-00-00

Unavailable
