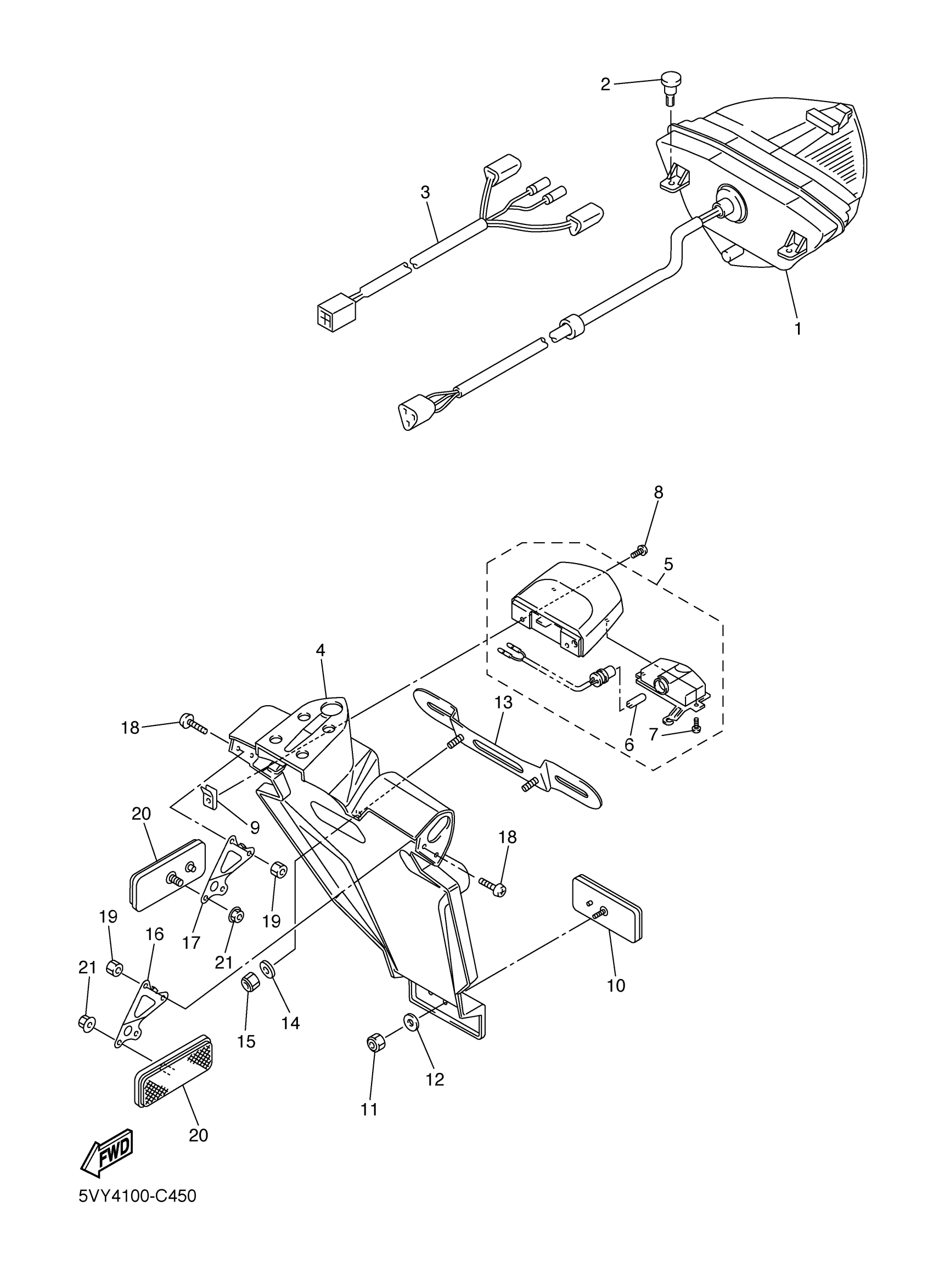

Yamaha YZFR1TC (YZFR1 CA) 5VYB 2005 TAILLIGHT Diagram
#
Description
Price
1
TAILLIGHT UNIT ASSY
5VY-84710-10-00
Unavailable
4
GUARD, MUD
5VY-21629-10-00
Unavailable
5
LICENCE LIGHT UNIT ASSY
5VY-84745-00-00
Unavailable
7
SCREW, TRUSS TAP.
97707-40012-00
Unavailable
10
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
12
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
16
BRACKET, REAR STAY
5VY-21688-00-00
Unavailable
17
BRACKET, REAR STAY 2
5VY-21689-00-00
Unavailable
18
SCREW, ROUND HEAD(4KM)
90150-04041-00
Unavailable
19
NUT, U (7LY)
95617-04100-00
Unavailable
20
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
21
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
