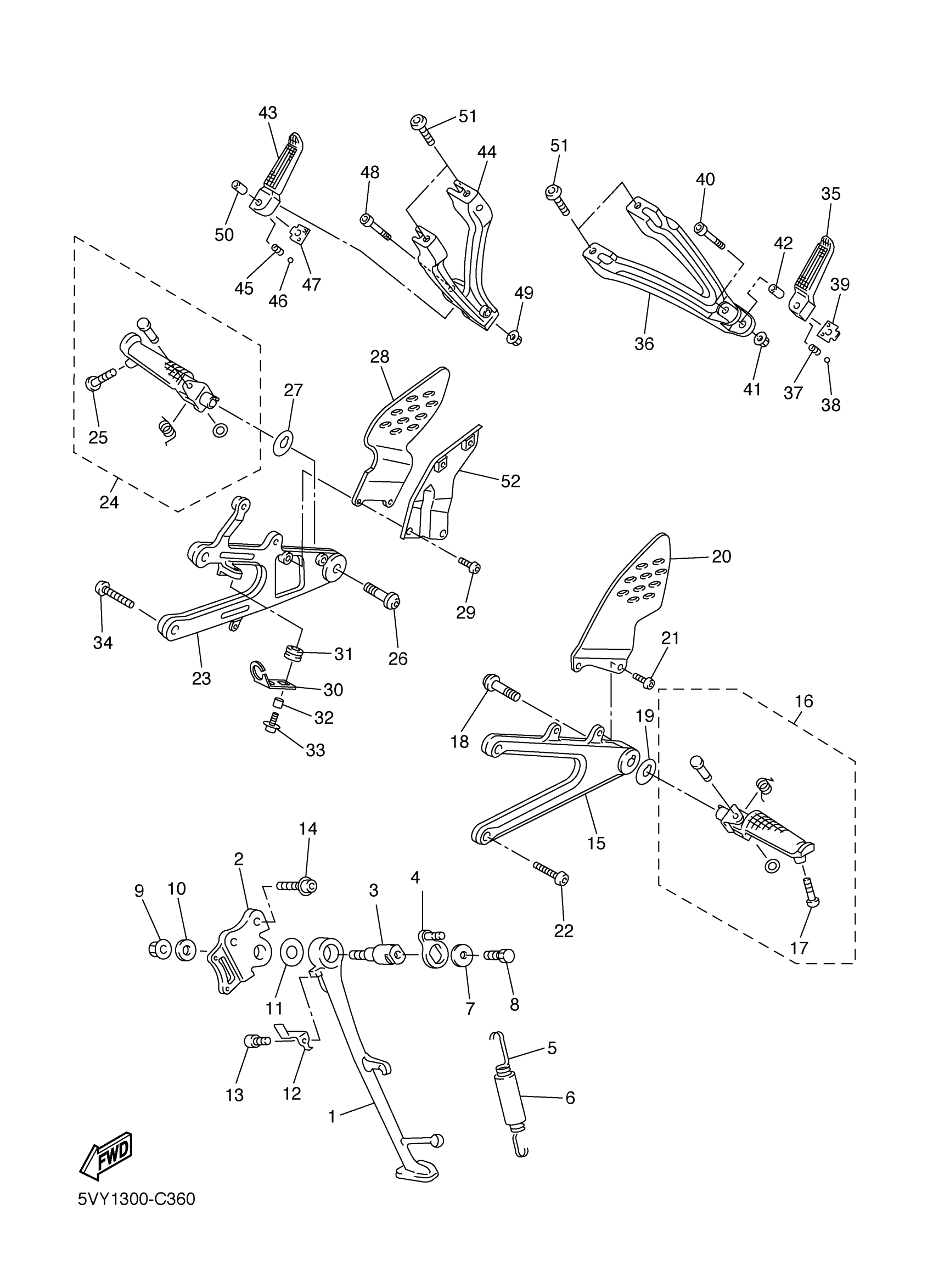

Yamaha YZFR1TC (YZFR1 CA) 5VYB 2005 STAND FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

5VY-27311-01-00

Unavailable

2

BRACKET, SIDE STAND

5JJ-27321-00-00

Unavailable

3

GUIDE, SIDE STAND

4NX-27351-00-00

Unavailable

4

HOOK, SIDE STAND

5PW-27352-00-00

Unavailable

5

SPRING, TENSION

90506-18008-00

$15.99

6

HOSE (L60)

90445-19002-00

$7.49

7

WASHER, PLATE(8AT)

90201-081R9-00

$9.49

8

BOLT, HEXAGON

97017-08020-00

$9.49

9

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

10

WASHER, PLATE(47X)

90201-101J1-00

$8.49

11

WASHER, PLATE (22F)

90201-146F9-00

$7.49

12

LINK, SIDE STAND

5JJ-27315-00-00

$9.99

13

BOLT,SOCKET

91317-06012-00

$8.49

14

BOLT, HEXAGON SOCKET HEAD

90110-10026-00

$11.49

15

BRACKET 2

5VY-27442-02-00

$109.99

16

FRONT FOOTREST ASSY (LEFT)

5VY-27410-00-00

Unavailable

17

BOLT

90109-08075-00

Unavailable

18

BOLT,HEX. SOCKET BUTTON

90111-10017-00

Unavailable

19

WASHER, CLAW

90214-10002-00

Unavailable

20

PLATE 1

5VY-27445-00-00

Unavailable

21

BOLT, BUTTON HEAD(3JP)

92014-06012-00

Unavailable

22

BOLT

90109-085G6-00

Unavailable

23

BRACKET 3

5VY-27443-02-00

Unavailable

24

FRONT FOOTREST ASSY (RIGHT)

5VY-27420-00-00

Unavailable

25

BOLT

90109-08075-00

Unavailable

26

BOLT,HEX. SOCKET BUTTON

90111-10017-00

Unavailable

27

WASHER, CLAW

90214-10002-00

Unavailable

28

PLATE 2

5VY-27446-00-00

Unavailable

29

BOLT, BUTTON HEAD

92017-06014-00

Unavailable

30

STAY, STOP SWITCH

5VY-2144G-00-00

Unavailable

31

GROMMET(4SV)

90480-12607-00

Unavailable

32

COLLAR 8121444900

90387-06023-00

Unavailable

33

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

Unavailable

34

BOLT

90109-085G6-00

Unavailable

35

FOOTREST, REAR 1

5JJ-27431-10-00

Unavailable

36

BRACKET 4

5VY-2741L-01-00

Unavailable

37

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

38

BALL

93501-04011-00

Unavailable

39

WASHER, SPECIAL

5JJ-27437-01-00

Unavailable

40

BOLT, SOCKET

91314-06035-00

Unavailable

41

NUT, U FLANGE

95604-06200-00

Unavailable

42

COLLAR (8H9)

90387-06697-00

Unavailable

43

FOOTREST, REAR 2

5JJ-27441-10-00

Unavailable

44

BRACKET 5

5VY-2742L-01-00

Unavailable

45

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

46

BALL

93501-04011-00

Unavailable

47

WASHER, SPECIAL

5JJ-27437-01-00

Unavailable

48

BOLT, SOCKET

91314-06035-00

Unavailable

49

NUT, U FLANGE

95604-06200-00

Unavailable

50

COLLAR (8H9)

90387-06697-00

Unavailable

51

BOLT, BUTTON

92017-08020-00

Unavailable

52

BRACKET, FOOTREST 2

5VY-27425-00-00

Unavailable
