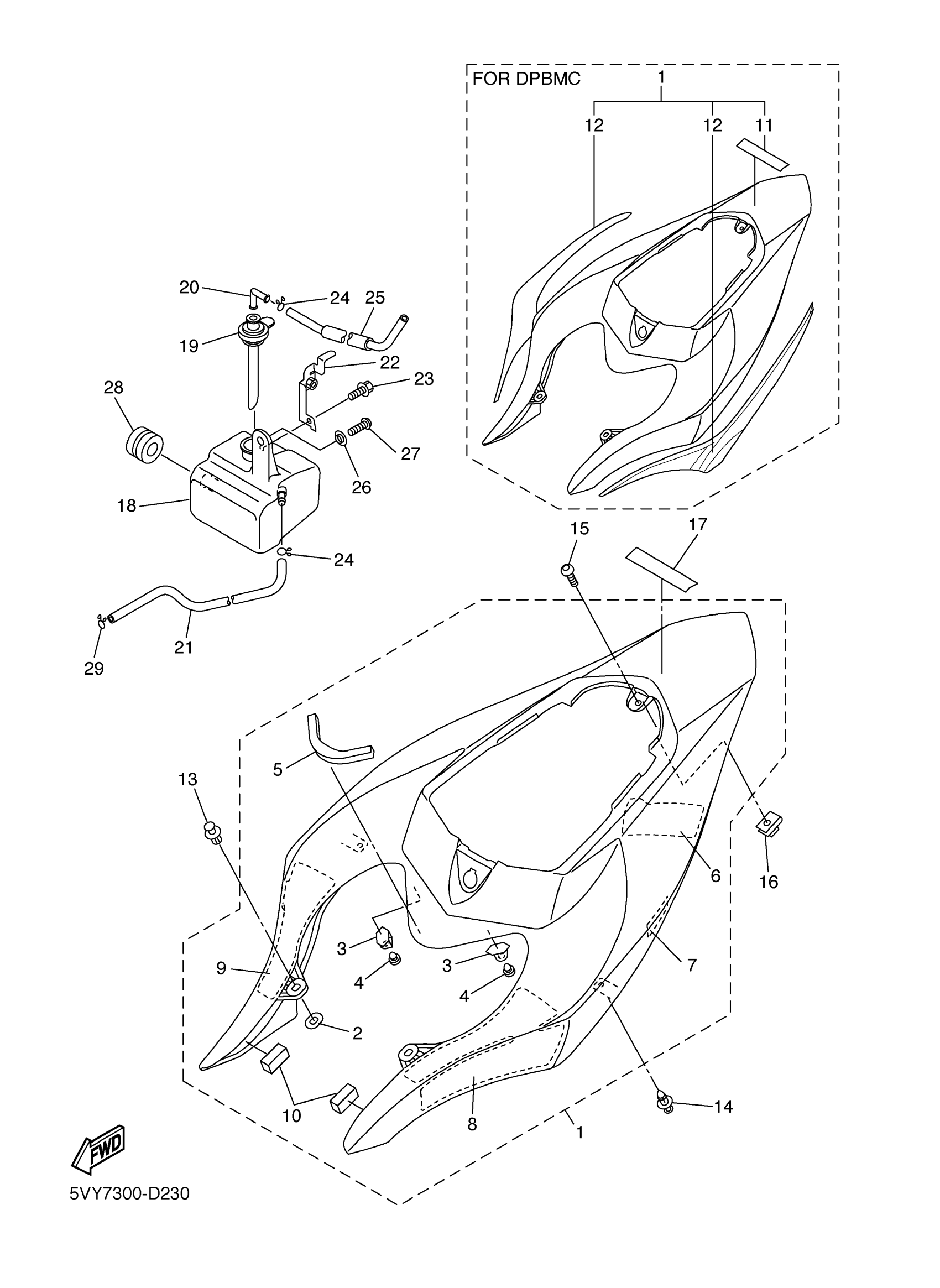

Yamaha YZFR1TC (YZFR1 CA) 5VYB 2005 SIDE COVER Diagram
#
Description
Price
1
SIDE COVER ASSY 1
5VY-21710-02-P0
Unavailable
1
COVER, SIDE 1 (DEEP PURPLISH BLUE METALLIC C)
5VY-Y2171-11-P1
Unavailable
3
. STAY, SIDE COVER 1
5VY-2172E-00-00
Unavailable
5
. DAMPER
5VY-21747-00-00
Unavailable
7
SEAL 1
5PW-21732-00-00
Unavailable
8
. SEAT, 1
5VY-2172P-00-00
Unavailable
9
. SEAT, 2
5VY-2173P-00-00
Unavailable
12
. GRAPHIC SET 1 (DEEP PURPLISH BLUE METALLIC C)
5VY-2173L-00-00
Unavailable
14
RIVET
90269-06011-00
Unavailable
15
BOLT
90111-05007-00
Unavailable
16
NUT, SPRING
90183-050A6-00
Unavailable
17
EMBLEM, YAMAHA
99244-00080-00
Unavailable
17
EMBLEM, YAMAHA
99247-00080-00
Unavailable
18
TANK, RECOVERY
5VY-21871-00-00
Unavailable
19
CAP
5VY-21875-00-00
Unavailable
20
ELBOW
26H-21828-00-00
Unavailable
21
HOSE (L660)
90445-08022-00
Unavailable
22
STAY, 4
5VY-21843-00-00
Unavailable
23
BOLT, FLANGE
95022-06010-00
Unavailable
24
CLIP (16G)
90467-08021-00
Unavailable
25
HOSE (L700)
90445-087K6-00
Unavailable
26
C0LLAR
90387-062M9-00
Unavailable
27
BOLT, BUTTON HEAD
92017-06012-00
Unavailable
28
GROMMET
90480-20001-00
Unavailable
29
CLIP (16G)
90467-08021-00
Unavailable
