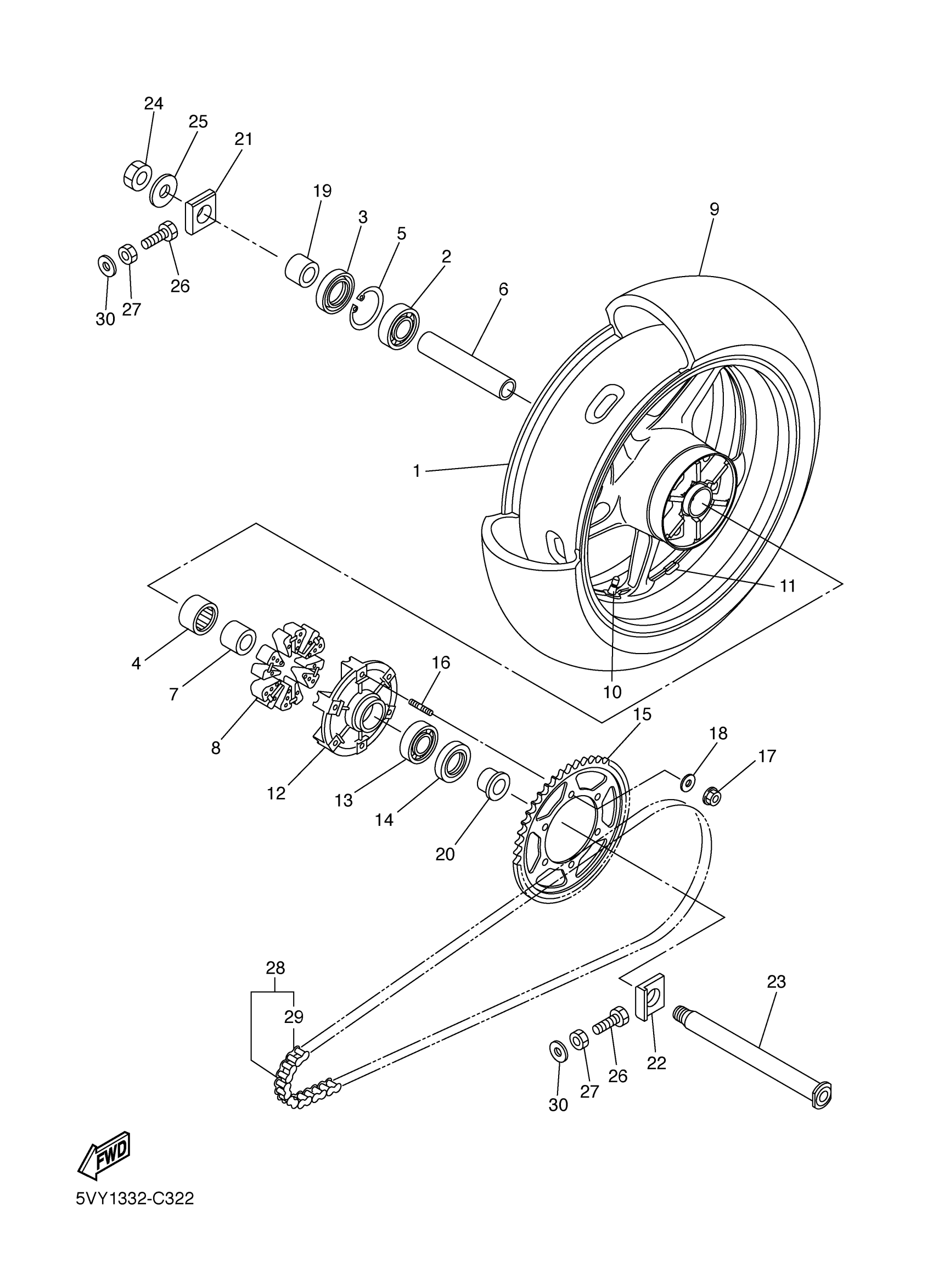

Yamaha YZFR1TC (YZFR1 CA) 5VYB 2005 REAR WHEEL Diagram
#
Description
Price
1
CAST WHEEL, REAR
5VY-25338-00-0X
Unavailable
5
CIRCLIP
93420-61M07-00
Unavailable
7
COLLAR, WHEEL
4XV-25383-00-00
Unavailable
8
DAMPER
5VX-25364-00-00
Unavailable
9
TIRE (190/50 ZR17M/C 73W D218)
94119-17025-00
Unavailable
11
BALANCER, WHEEL
5MT-25398-20-00
Unavailable
15
SPROCKET, DRIVEN (45T)
5VY-25445-20-00
Unavailable
16
BOLT, STUD(1TX)
90116-10485-00
Unavailable
17
NUT, SELF-LOCKING
90185-10009-00
Unavailable
18
WASHER, PLATE
90201-10021-00
Unavailable
19
COLLAR
90387-28016-00
Unavailable
20
COLLAR
90387-28019-00
Unavailable
21
PULLER, CHAIN 1
5VY-25388-00-00
Unavailable
22
PULLER, CHAIN 2
5VY-25389-01-00
Unavailable
23
AXLE, WHEEL
5SL-25381-10-00
Unavailable
24
NUT, SELF-LOCKING
90185-24007-00
Unavailable
25
WASHER, PLATE
90201-25020-00
Unavailable
26
BOLT(3GM)
90101-08766-00
Unavailable
27
NUT(6TA)
95337-08600-00
Unavailable
28
CHAIN (DID50VA8-116L)
94582-10116-00
Unavailable
29
JOINT, CHAIN
94682-05031-00
Unavailable
30
WASHER, PLATE(3XP)
90201-086P8-00
Unavailable
