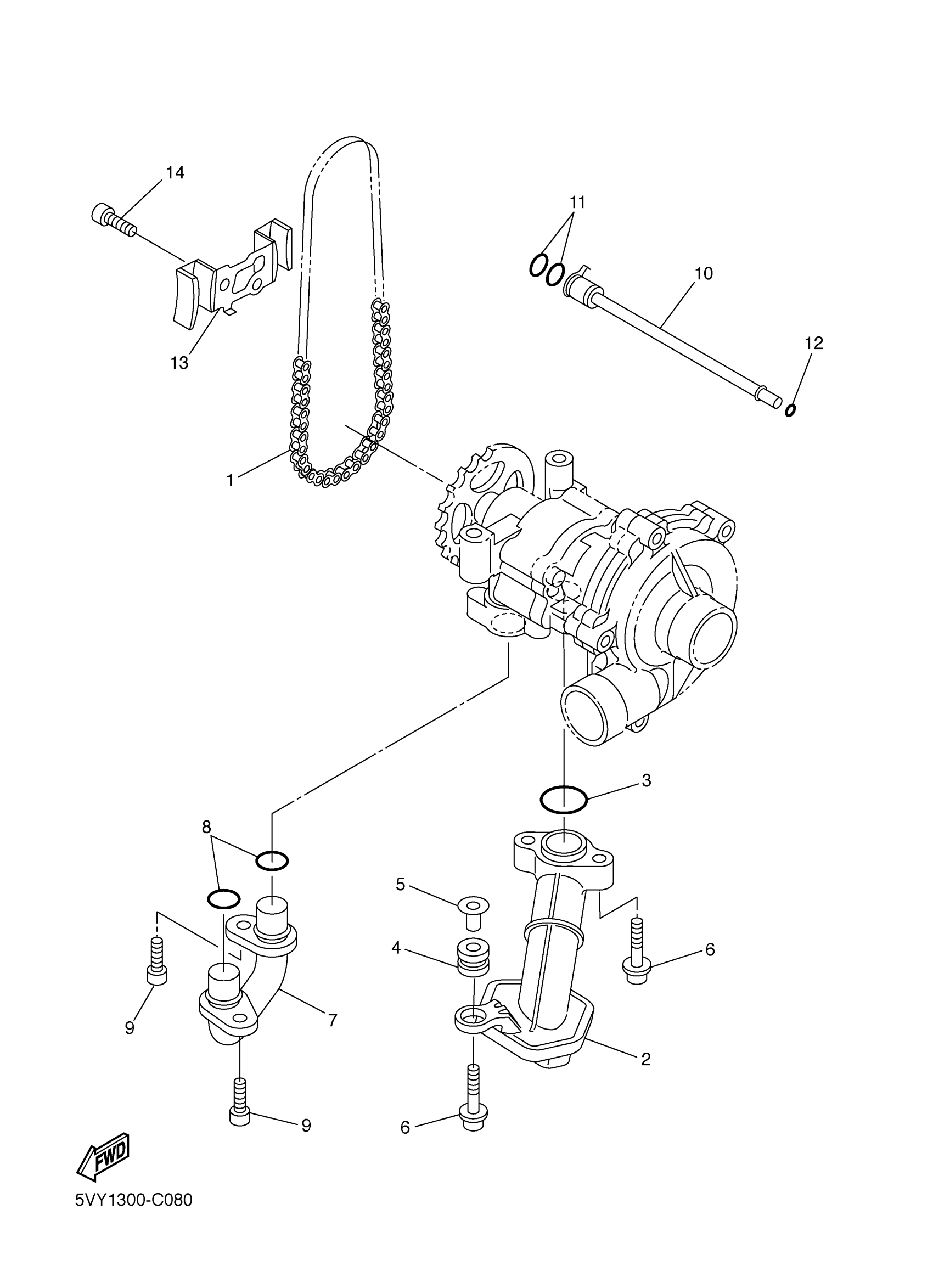

Yamaha YZFR1TC (YZFR1 CA) 5VYB 2005 OIL PUMP Diagram

#

Description
Price

1

CHAIN (DID25 78LE)

94580-25078-00

Unavailable

2

STRAINER HOUSING ASSY

5VY-13410-00-00

$86.99

3

O-RING

93210-22298-00

$7.49

4

GROMMET

90480-13010-00

$7.49

5

COLLAR, DISTANCE

5VY-13117-00-00

Unavailable

6

BOLT

90109-06015-00

$4.82

7

PIPE, OIL 1

5VY-13416-00-00

Unavailable

8

O-RING

93210-14003-00

$8.49

9

BOLT,SOCKET

91317-06016-00

$1.25

10

PIPE, DELEVERY 5

5VY-1316E-00-00

$119.99

11

O-RING (1J7)

93210-09350-00

$7.49

12

O-RING(26H)

93210-06667-00

$7.49

13

HOLDER

5VY-13898-01-00

$51.99

14

BOLT,SOCKET

91317-06012-00

$8.49
