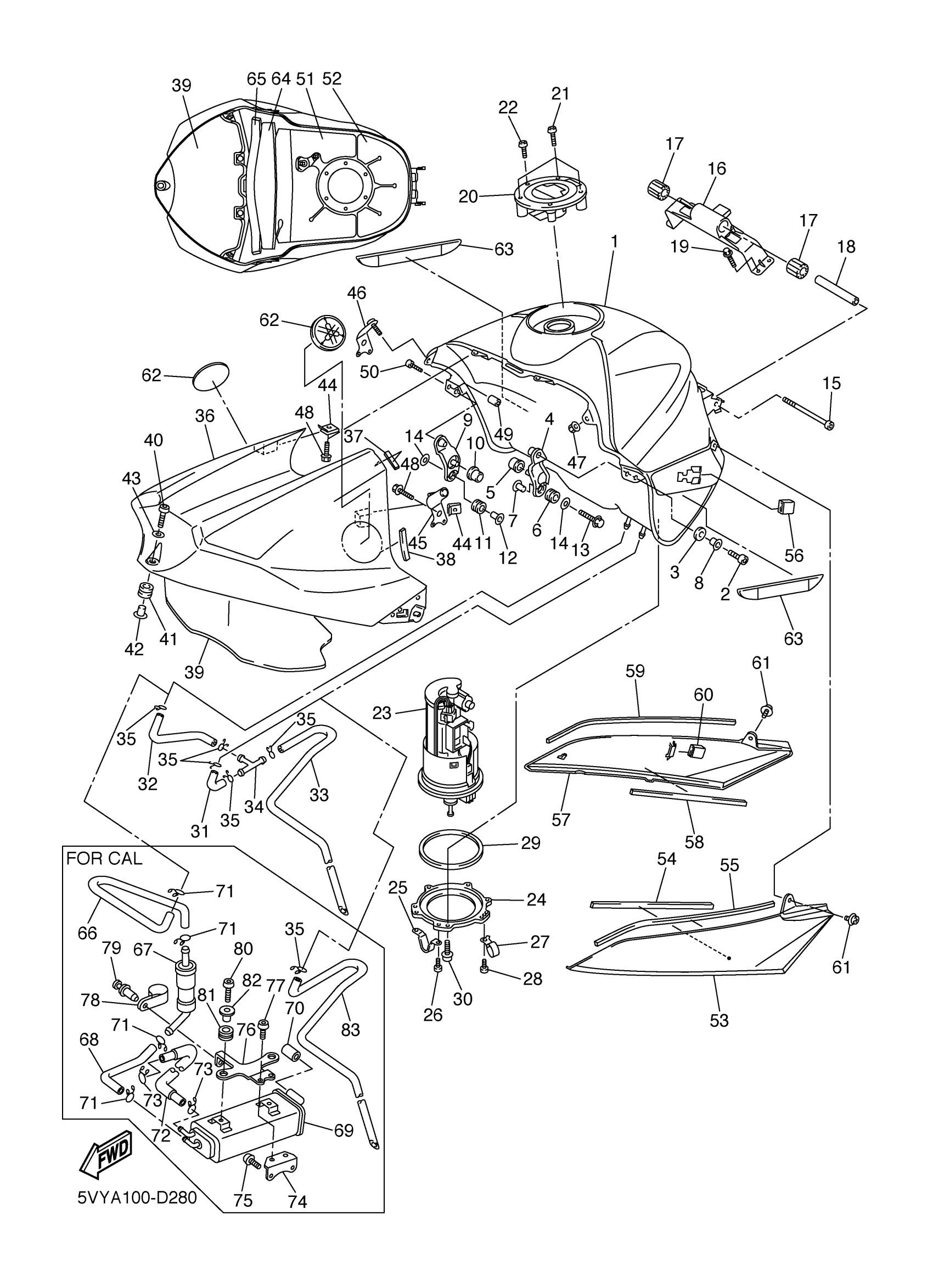

Yamaha YZFR1TC (YZFR1 CA) 5VYB 2005 FUEL TANK Diagram
#
1
FUEL TANK COMP. (DEEP RED METALLIC K)
5VY-YK241-30-P0
Unavailable
1
FUEL TANK COMP. (DEEP PURPLISH BLUE METALLIC C)
5VY-YK241-30-P1
Unavailable
1
FUEL TANK COMP. (BLACK METALLIC X)
5VY-YK241-30-P2
Unavailable
6
GROMMET(3XV)
90480-10542-00
Unavailable
9
BRACKET, FUEL TANK 2
5VY-24192-10-00
Unavailable
11
GROMMET(3XV)
90480-10542-00
Unavailable
14
WASHER, PLATE
90201-06095-00
Unavailable
15
BOLT, SOCKET
91317-06090-00
Unavailable
16
BRACKET, TANK FITTING
5VY-2413Y-00-00
Unavailable
17
DAMPER, LOCATING 3
5SL-24183-00-00
Unavailable
18
COLLAR
90387-06055-00
Unavailable
19
. BOLT, FLANGE
95027-06020-00
Unavailable
20
CAP ASSY
39P-24602-00-00
Unavailable
21
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
22
BOLT, SOCKET
91317-05010-00
Unavailable
23
FUEL PUMP COMP.
5PW-13907-05-00
Unavailable
24
BRACKET, FUEL PUMP
5VY-24491-00-00
Unavailable
25
BRACKET, FUEL TANK 2
5PW-24192-00-00
Unavailable
26
SCREW, BINDING
98907-05008-00
Unavailable
27
CLAMP
90461-10010-00
Unavailable
28
SCREW, BINDING
98907-05008-00
Unavailable
29
O-RING
19B-24486-01-00
Unavailable
30
BOLT, HEXAGON SOCKET HEAD
90110-05014-00
Unavailable
31
PIPE 5
5VY-24315-00-00
Unavailable
32
PIPE 6
5VY-24316-00-00
Unavailable
33
PIPE 7
5VY-24317-00-00
Unavailable
34
WAY 3 (10L)
90413-07007-00
Unavailable
35
CLIP
90467-090A2-00
Unavailable
36
COVER, TOP
5VY-2171A-01-P0
Unavailable
36
COVER, TOP
5VY-2171A-01-P1
Unavailable
36
COVER, TOP (MAT BLACK 2) (BLACK METALLIC X)
5VY-2171A-01-P4
Unavailable
37
DAMPER, PLATE 2
5VY-2414J-00-00
Unavailable
38
DAMPER
4XV-2834E-00-00
Unavailable
39
DAMPER, SIDE COVER
5VY-24145-00-00
Unavailable
40
BOLT,SOCKET HEAD
91314-06025-00
Unavailable
41
GROMMET(3AA)
90480-12497-00
Unavailable
42
COLLAR
90387-06159-00
Unavailable
43
WASHER, PLATE
90201-06M30-00
Unavailable
44
NUT, SPRING(3YX)
90183-05074-00
Unavailable
45
STAY, FUEL TANK 3
5VY-24117-00-00
Unavailable
46
STAY, FUEL TANK 4
5VY-24118-00-00
Unavailable
47
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
48
BOLT, WASHER BASED
90105-05002-00
Unavailable
49
NUT(1KT)
90179-05523-00
Unavailable
50
SCREW, BINDING
98907-05014-00
Unavailable
51
DAMPER, PLATE 4
5VY-2414N-00-00
Unavailable
52
DAMPER, PLATE 5
5VY-2414P-00-00
Unavailable
53
COVER, SIDE 1
5VY-24129-01-00
Unavailable
54
DAMPER, PLATE 2
5PW-2414J-00-00
Unavailable
55
DAMPER, PLATE 1
5PW-2414H-00-00
Unavailable
56
DAMPER, SIDE COVER
5PW-2411J-01-00
Unavailable
57
COVER, SIDE 2
5VY-24139-01-00
Unavailable
58
DAMPER, PLATE 2
5PW-2414J-00-00
Unavailable
59
DAMPER, PLATE 1
5PW-2414H-00-00
Unavailable
60
DAMPER, SIDE COVER
5PW-2411J-01-00
Unavailable
61
SCREW, WITH WASHER
90159-05015-00
Unavailable
62
EMBLEM
5PW-2413B-00-00
Unavailable
63
DAMPER, PLATE 3
5VY-2414K-00-00
Unavailable
64
DAMPER, PLATE 6
5VY-2414R-00-00
Unavailable
65
DAMPER, PLATE 1
5VY-2414H-00-00
Unavailable
66
PIPE 3
5VY-24313-00-00
Unavailable
67
ROLL OVER VALVE ASSY
5RB-24180-00-00
Unavailable
68
PIPE 4
5VY-24314-00-00
Unavailable
69
CANISTER ASSY
5VY-24170-00-00
Unavailable
70
HOSE (L70)
90445-112E0-00
Unavailable
71
CLIP
90467-090A2-00
Unavailable
72
PIPE
5VY-1443J-00-00
Unavailable
73
CLIP
90467-090A2-00
Unavailable
74
BRACKET, CANISTOR
5VY-2419F-00-00
Unavailable
75
BOLT, BUTTON HEAD
92017-06016-00
Unavailable
76
STAY
5VY-24216-00-00
Unavailable
77
BOLT, BUTTON HEAD
92017-06010-00
Unavailable
78
CLAMP
90464-15014-00
Unavailable
79
RIVET
90269-05001-00
Unavailable
80
BOLT, BUTTON HEAD
92017-06016-00
Unavailable
81
GROMMET (462)
90480-13018-00
Unavailable
82
COLLAR(42G)
90387-062L2-00
Unavailable
83
PIPE 2
5VY-24312-00-00
Unavailable
