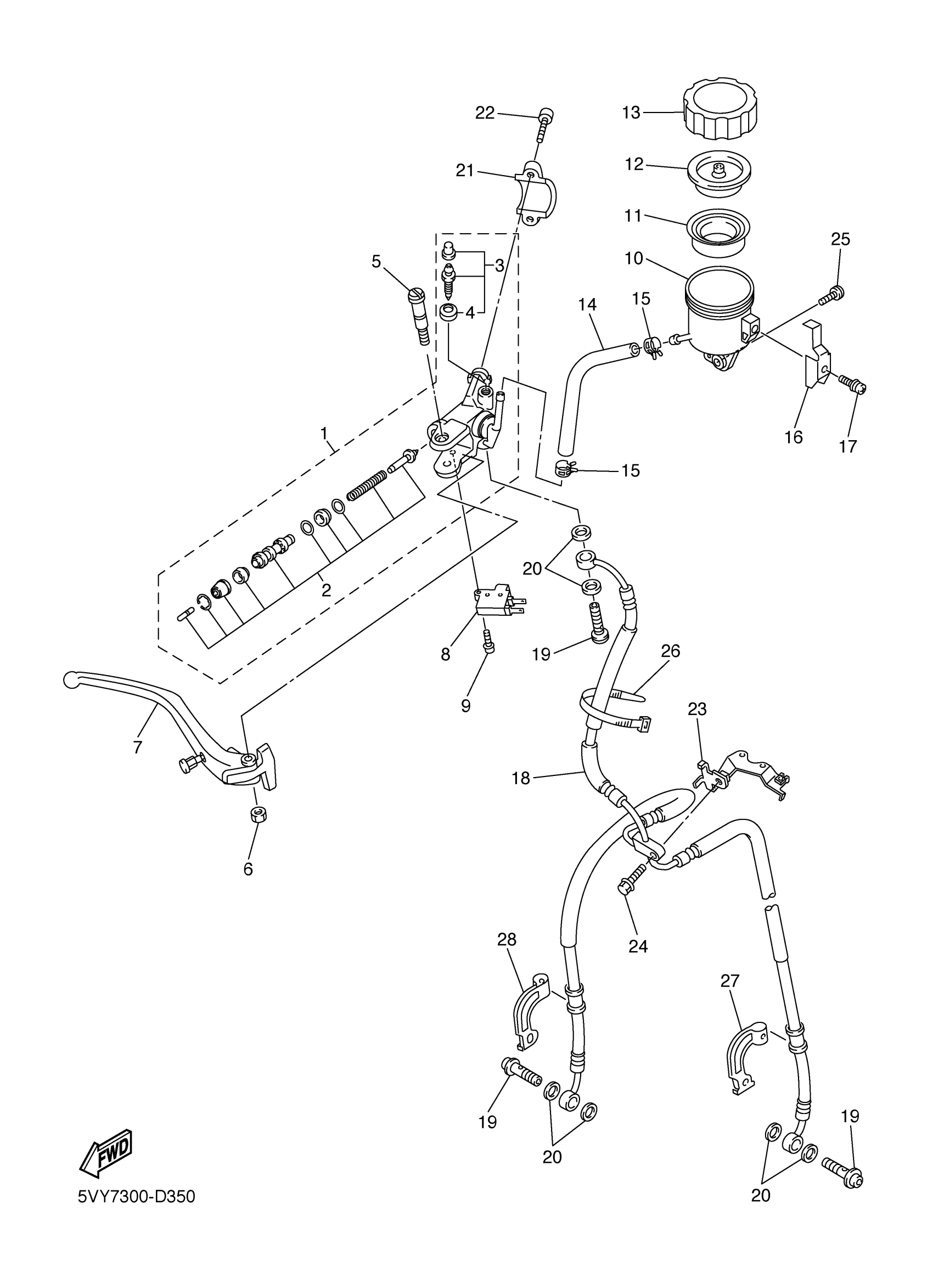

Yamaha YZFR1TC (YZFR1 CA) 5VYB 2005 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

5VY-W2587-10-00

$284.82

2

CYLINDER KIT, MASTER

2S3-W0041-00-00

$71.55

3

BLEED SCREW KIT

5VY-W0048-00-00

$14.81

4

SEAL 1

5VY-25975-00-00

$1.51

5

BOLT, LEVER

5VY-2589F-01-00

Unavailable

6

NUT, COVER

5VS-2586F-00-00

$5.55

7

LEVER 2

5VY-83922-00-00

$51.86

8

FRONT STOP SWITCH ASSY

4HM-83980-00-00

$34.26

9

SCREW,SET

5VS-2585H-00-00

$6.36

10

TANK, RESERVOIR

5SL-25894-20-00

$30.83

11

DIAPHRAGM, RESERVOIR

5VY-25854-00-00

$26.32

12

BUSH,DIAPHRAGM

5VY-25855-00-00

$3.52

13

CAP, RESERVOIR

5VY-25852-00-00

$14.81

14

HOSE, RESERVOIR

5VY-25895-10-00

$20.61

15

CLIP

90467-120A3-00

$5.47

16

HOLDER

5VY-2589G-00-00

Unavailable

17

SCREW

5VY-2589H-00-00

Unavailable

18

HOSE, BRAKE 1

5VY-25872-00-00

Unavailable

19

BOLT, UNION

90401-10172-00

Unavailable

20

WASHER, PLATE(481)

90201-10118-00

Unavailable

21

BRACKET, MASTER CYLINDER

5VS-25867-00-00

Unavailable

22

BOLT

5VS-26332-00-00

Unavailable

23

BRACKET, HORN

5VY-23377-00-00

Unavailable

24

BOLT, FLANGE

90105-06041-00

Unavailable

25

BOLT,HEX. SOCKET BUTTON

90111-05026-00

Unavailable

26

BAND

3MA-82591-00-00

Unavailable

27

HOLDER, BRAKE HOSE 1

5VY-25875-00-00

Unavailable

28

HOLDER, BRAKE HOSE 2

5VY-25876-00-00

Unavailable
