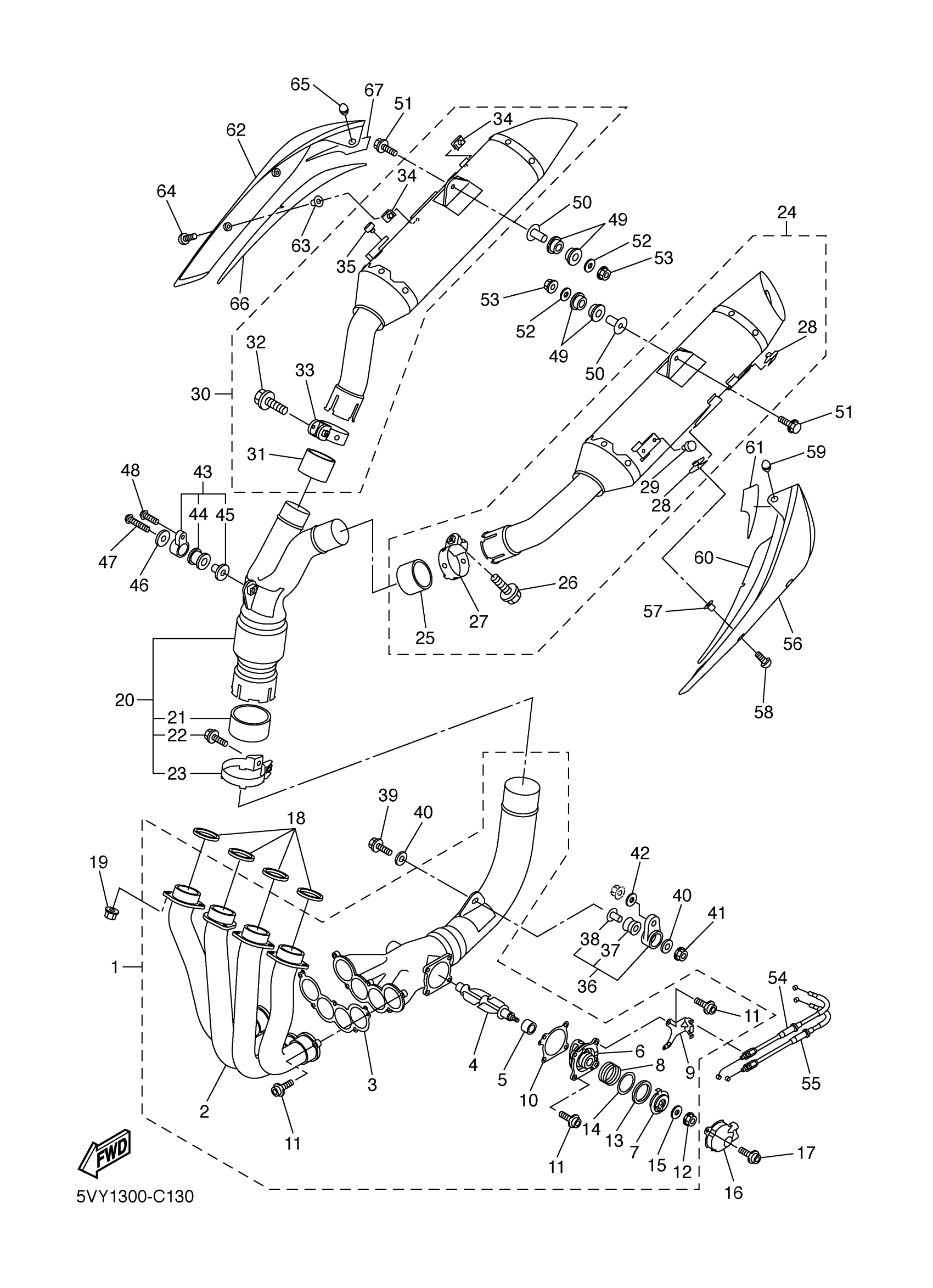

Yamaha YZFR1TC (YZFR1 CA) 5VYB 2005 EXHAUST Diagram
#
1
EXHAUST PIPE ASSY 1
5VY-14610-00-00
Unavailable
2
. EXHAUST PIPE COMP
5VY-14602-00-00
Unavailable
3
GASKET, EXHAUST PIPE
5VY-14623-00-00
Unavailable
4
. ARM, SHAFT (VALVE)
5VY-14821-00-00
Unavailable
5
COLLAR
5VY-14638-00-00
Unavailable
6
. HOUSING
5VY-14811-00-00
Unavailable
7
. PULLEY
5VY-14865-00-00
Unavailable
9
BRACKET
5VY-14867-00-00
Unavailable
12
NUT
90179-06M28-00
Unavailable
13
COLLAR 2
5VY-14648-00-00
Unavailable
16
PROTECTOR, EXHAUST
5VY-14826-00-00
Unavailable
18
GASKET, EXHAUST PIPE
4FM-14613-00-00
Unavailable
19
NUT (22U)
90179-08410-00
Unavailable
20
CATALYST ASSY.
5VY-14740-00-00
Unavailable
21
GASKET, SILENCER
5VY-14755-00-00
Unavailable
22
BOLT, FLANGE(4FM)
95814-08030-00
Unavailable
23
. BAND, MUFFLER
5JJ-14715-00-00
Unavailable
24
MUFFLER ASSY 1
5VY-14710-10-00
Unavailable
25
GASKET, MUFFLER
5VY-14714-00-00
Unavailable
26
BOLT, FLANGE
90105-08063-00
Unavailable
27
BAND, MUFFLER
5VY-14715-00-00
Unavailable
28
NUT, SPRING
90183-060A2-00
Unavailable
29
PLUG
90338-06007-00
Unavailable
30
MUFFLER ASSY 2
5VY-14720-10-00
Unavailable
31
GASKET, MUFFLER
5VY-14714-00-00
Unavailable
32
BOLT, FLANGE
90105-08063-00
Unavailable
33
BAND, MUFFLER
5VY-14715-00-00
Unavailable
34
NUT, SPRING
90183-060A2-00
Unavailable
35
PLUG
90338-06007-00
Unavailable
36
STAY ASSY. , 2
5VY-21890-00-00
Unavailable
37
DAMPER, MUFFLER
5VY-14747-00-00
Unavailable
38
COLLAR
90387-08021-00
Unavailable
39
BOLT, FLANGE
95817-08040-00
Unavailable
40
WASHER, PLATE(3DM)
90201-087G2-00
Unavailable
41
NUT, U FLANGE(4KG)
95604-08200-00
Unavailable
42
WASHER, PLATE(4KM)
90201-10054-00
Unavailable
43
STAY ASSY. , 1
5VY-21880-00-00
Unavailable
44
DAMPER, FOOTREST 2
4XV-27424-00-00
Unavailable
45
COLLAR
90387-08005-00
Unavailable
46
WASHER, PLATE
90201-08034-00
Unavailable
47
BOLT, BUTTON HEAD(4TR)
92014-08040-00
Unavailable
48
BOLT, HEXAGON SOCKET BUTTON
90111-08016-00
Unavailable
49
DAMPER, FOOTREST 2
5VY-27424-00-00
Unavailable
50
COLLAR
90387-08020-00
Unavailable
51
BOLT, FLANGE
95814-08045-00
Unavailable
52
WASHER, PLATE
90201-08034-00
Unavailable
53
NUT, U FLANGE(4KG)
95604-08200-00
Unavailable
54
CABLE, PULLEY 1
5VY-1133E-02-00
Unavailable
55
CABLE, PULLEY 2
5VY-1133F-01-00
Unavailable
56
PROTECTOR, MUFFLER 1
5VY-14718-01-P0
Unavailable
56
PROTECTOR, MUFFLER 1
5VY-14718-01-P1
Unavailable
57
COLLAR(42G)
90387-062L2-00
Unavailable
58
BOLT
90111-06038-00
Unavailable
59
DAMPER, MUFFLER 2
5VY-14757-00-00
Unavailable
60
SEAT, 1
5VY-1475P-00-00
Unavailable
61
SEAT, 3
5VY-1477P-00-00
Unavailable
62
PROTECTOR, MUFFLER 2
5VY-14728-01-P0
Unavailable
62
PROTECTOR, MUFFLER 2
5VY-14728-01-P1
Unavailable
63
COLLAR(42G)
90387-062L2-00
Unavailable
64
BOLT
90111-06038-00
Unavailable
65
DAMPER, MUFFLER 2
5VY-14757-00-00
Unavailable
66
SEAT, 2
5VY-1476P-00-00
Unavailable
67
SEAT,4
5VY-1478P-00-00
Unavailable
