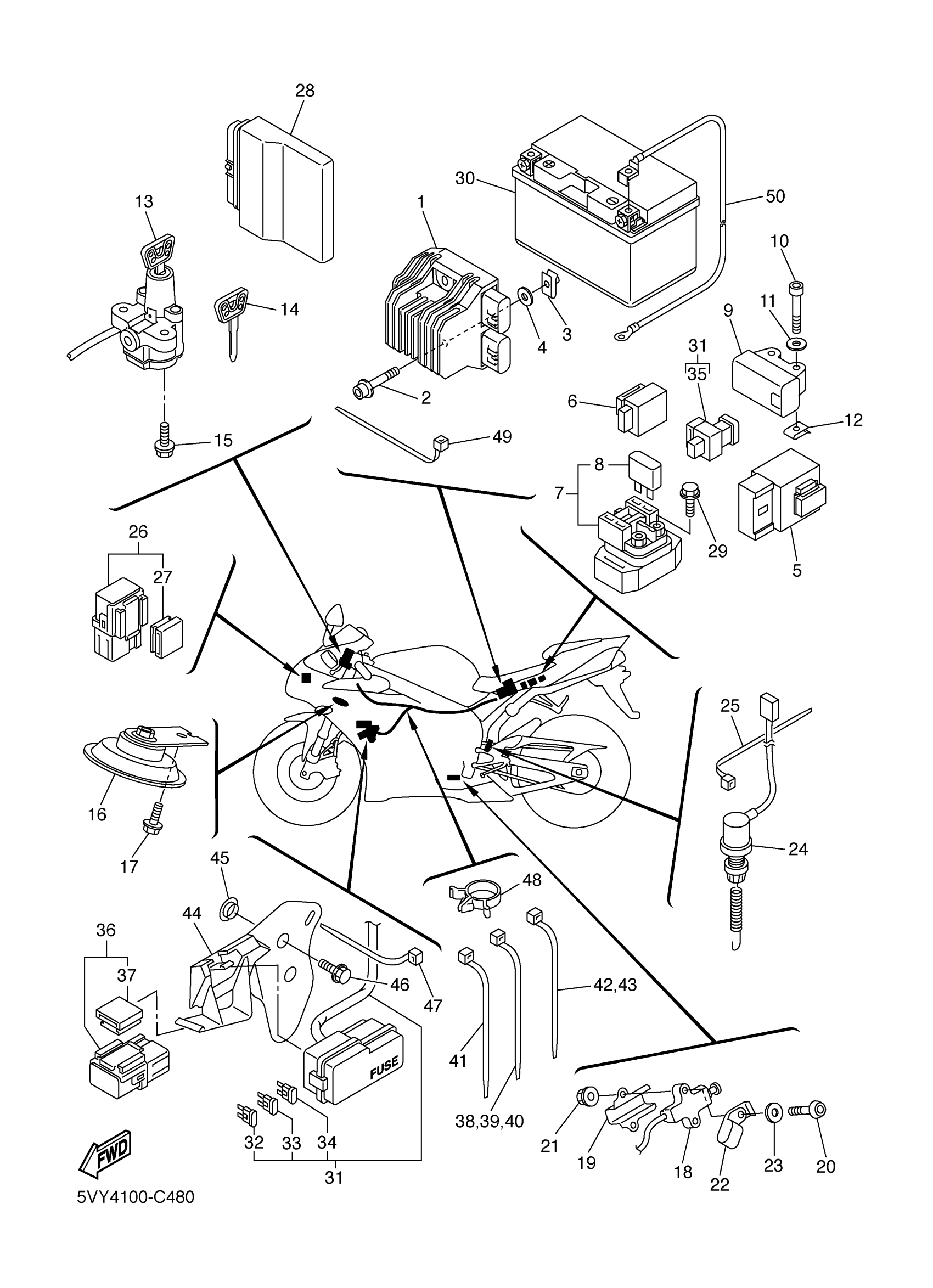

Yamaha YZFR1TC (YZFR1 CA) 5VYB 2005 ELECTRICAL 2 Diagram

#

Description
Price

1

RECTIFIER & REGULATOR ASSY

5VY-81960-00-00

$506.99

2

BOLT, HEXAGON SOCKET HEAD

90110-06066-00

Unavailable

3

NUT, SPRING(4ES)

90183-06069-00

Unavailable

4

WASHER, PLATE(3MB)

90202-05187-00

$1.38

5

RELAY ASSY

5VK-81950-43-00

$65.99

6

FLASHER RELAY ASSY

4MY-83350-03-00

$51.99

7

STARTER RELAY ASSY (RC19-032)

5JW-81940-02-00

$123.99

8

FUSE (12V 15A)

36Y-82151-00-00

$4.94

9

SENSOR, LEAN ANGLE

5PS-82576-02-00

$88.99

10

BOLT,SOCKET

91317-04025-00

$5.60

11

WASHER, PLATE (8M6)

90201-047A2-00

$3.35

12

NUT, SPRING(47R)

90183-04039-00

$7.49

13

MAIN SWITCH STEERING LOCK

5VY-82501-10-00

$320.99

14

BLANK KEY

4BH-82511-09-00

$30.99

15

BOLT

90109-08196-00

$8.49

16

HORN

4TH-83371-00-00

Unavailable

17

BOLT, FLANGE

95817-06012-00

Unavailable

18

SWITCH, SIDE STAND

5PX-82566-51-00

Unavailable

19

PLATE

5JJ-82388-00-00

Unavailable

20

BOLT, BUTTON HEAD

92017-05030-00

Unavailable

21

NUT, S/L FLANGE

95607-05200-00

Unavailable

22

CLAMP

90461-10002-00

Unavailable

23

WASHER, PLATE(39X)

90201-057H5-00

Unavailable

24

STOP SWITCH ASSY

5PW-82530-01-00

Unavailable

25

CLAMP

5Y9-12491-00-00

Unavailable

26

RELAY ASSY (5JJ-20)

5JJ-81950-20-00

Unavailable

27

HOLDER, RELAY

5JJ-81952-00-00

Unavailable

28

ENGINE CONTROL UNIT ASSY

5VY-8591A-B0-00

Unavailable

29

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

30

BATTERY YTZ10S

YTZ-10S00-00-00

Unavailable

31

WIRE HARNESS ASSY

5VY-82590-11-00

Unavailable

32

FUSE (15A)

67F-82151-50-00

Unavailable

33

. FUSE (10A)

67F-82151-40-00

Unavailable

34

FUSE (25A-BL)

5JJ-82151-70-00

Unavailable

35

FUSE (50A)

5JW-82151-10-00

Unavailable

36

RELAY ASSY (5EA-02)

5EA-81950-20-00

Unavailable

37

HOLDER,RELAY

5EA-81952-00-00

Unavailable

38

CLAMP(4FM)

90464-15195-00

Unavailable

39

CLAMP(4FM)

90464-15195-00

Unavailable

40

CLAMP(4FM)

90464-15195-00

Unavailable

41

CLAMP(4FM)

90464-15195-00

Unavailable

42

BAND

1UA-82591-00-00

Unavailable

43

BAND

1UA-82591-00-00

Unavailable

44

STAY, FUSE BOX

5VY-82171-00-00

Unavailable

45

COLLAR

90387-06040-00

Unavailable

46

BOLT, WITH WASHER(55K)

90119-06114-00

Unavailable

47

CLAMP

90464-13077-00

Unavailable

48

CLAMP(3XV)

90464-15157-00

Unavailable

49

CLAMP(4FM)

90464-15195-00

Unavailable

50

WIRE, MINUS LEAD

5VY-82116-00-00

Unavailable
