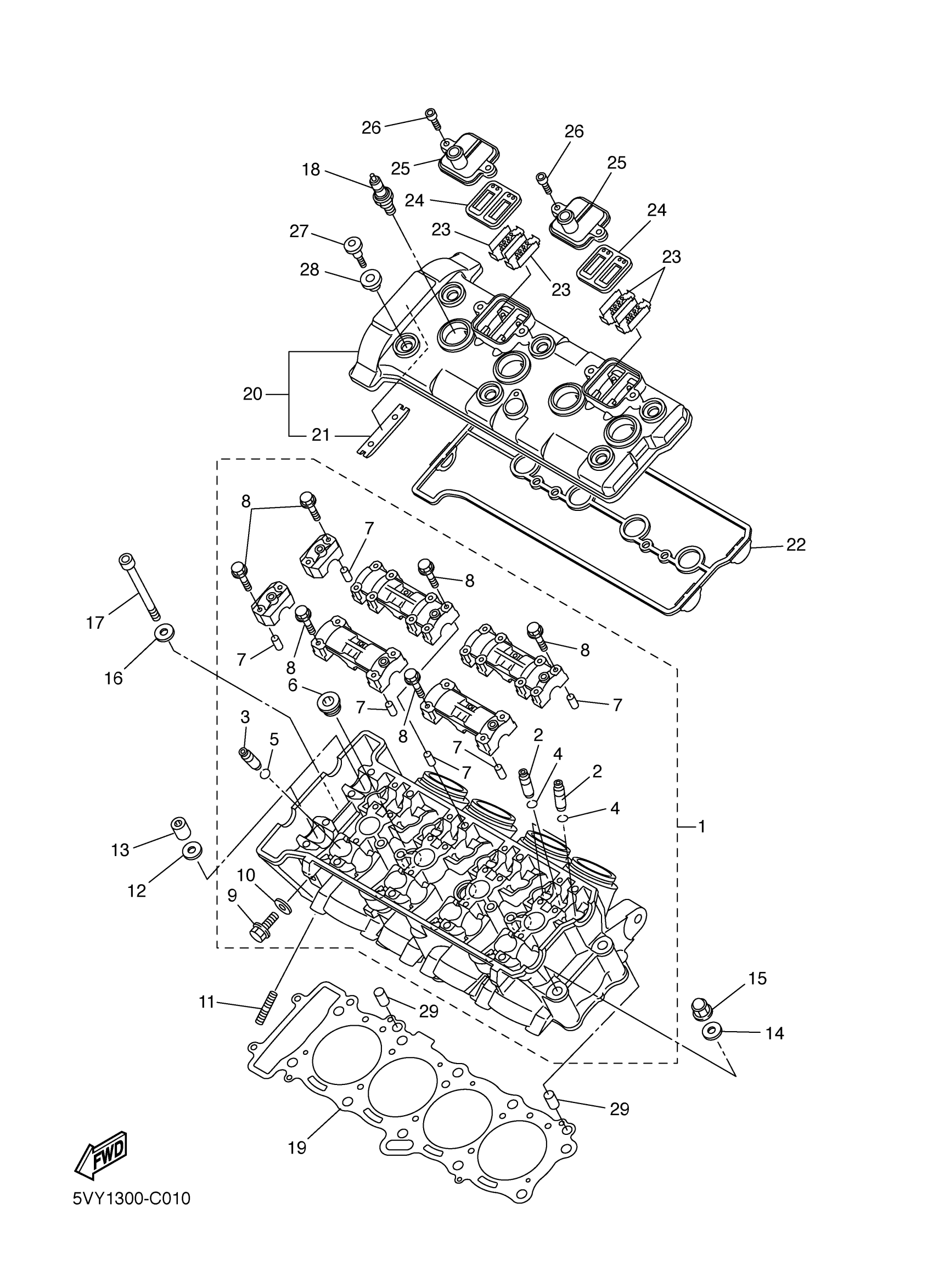

Yamaha YZFR1TC (YZFR1 CA) 5VYB 2005 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

5VY-11101-20-00

Unavailable

2

GUIDE, VALVE 1

5VY-11133-10-00

Unavailable

3

GUIDE, VALVE 2

5VY-11134-10-00

$108.99

4

CIRCLIP(1HX)

93440-07149-00

$8.49

5

CIRCLIP(1WG)

93440-10153-00

$2.39

6

PLUG, STRAIGHT SCREW

90340-18150-00

$5.60

7

PIN, DOWEL(3XW)

91808-16023-00

$8.49

8

. BOLT, FLANGE

90105-06026-00

Unavailable

9

BOLT, FLANGE(2UJ)

95024-06012-00

$4.41

10

GASKET 256113960000

90430-06014-00

Unavailable

11

BOLT, STUD 3

95617-08625-00

$8.49

12

WASHER, PLATE

90201-10033-00

$8.49

13

NUT

90179-10006-00

$9.49

14

WASHER, PLATE

90201-10033-00

$8.49

15

NUT, CROWN(2GG)

90176-10075-00

$8.49

16

WASHER, PLATE

90201-06016-00

Unavailable

17

BOLT,SOCKET

91314-06105-00

Unavailable

18

CR9EK NGK SPLUG 10PK

CR9-EK000-00-00

Unavailable

19

GASKET, CYLINDER HEAD 1

5VY-11181-00-00

Unavailable

20

COVER, CYLINDER HEAD 1

5VY-11191-02-00

Unavailable

21

GUIDE, STOPPER 2

5BE-12241-01-00

Unavailable

22

GASKET, HEAD COVER 1

5VY-11193-10-00

Unavailable

23

PLATE

5VY-1482K-00-00

Unavailable

24

REED VALVE ASSY

5SL-14890-00-00

Unavailable

25

CAP, CASE

5VY-14899-01-00

Unavailable

26

BOLT,SOCKET

91317-06025-00

Unavailable

27

BOLT(4BP)

90109-066F0-00

Unavailable

28

RUBBER, MOUNT 1

5VY-1111G-00-00

Unavailable

29

PIN, DOWEL(3VD)

99530-10114-00

Unavailable
