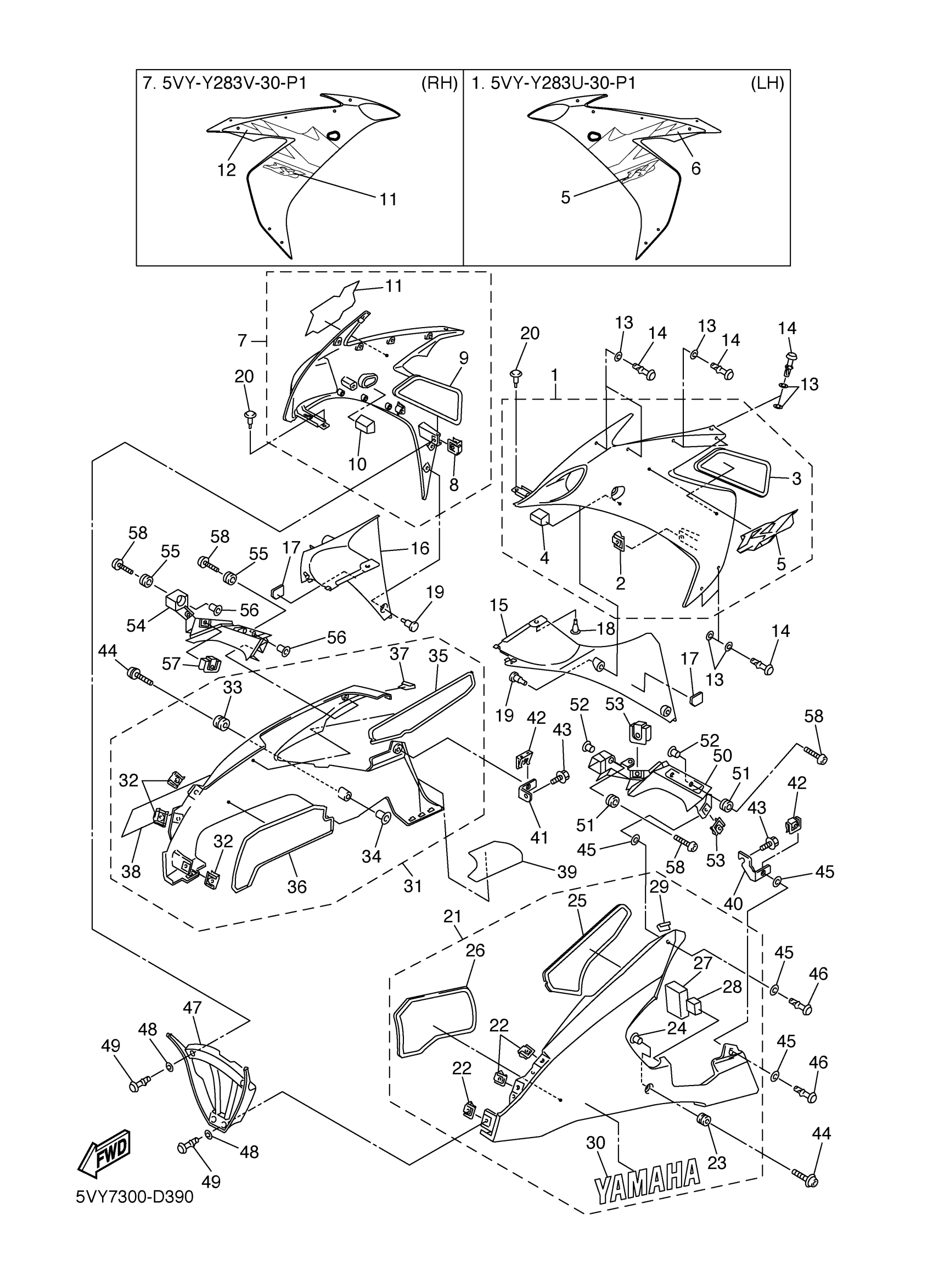

Yamaha YZFR1TC (YZFR1 CA) 5VYB 2005 COWLING 2 Diagram
#
1
PANEL ASSEMBLY 1
5VY-Y283U-00-P0
Unavailable
1
PANEL ASSEMBLY 1 (DEEP PURPLISH BLUE METALLIC C)
5VY-Y283U-30-P1
Unavailable
3
. SEAT
5VY-2848H-00-00
Unavailable
5
EMBLEM 1
5VY-2834C-30-00
Unavailable
5
. EMBLEM (DEEP PURPLISH BLUE METALLIC C)
5VY-2836C-10-00
Unavailable
6
GRAPHIC 1
5VY-28391-10-00
Unavailable
7
PANEL ASSEMBLY 2 (DEEP PURPLISH BLUE METALLIC C)
5VY-Y283V-30-P1
Unavailable
7
PANEL ASSEMBLY 2
5VY-Y283V-50-P5
Unavailable
9
. SEAT 2
5VY-2848K-00-00
Unavailable
10
. STAY, LEG SHIELD
5VY-28332-00-00
Unavailable
11
. EMBLEM 2 (DEEP RED METALLIC K)
5VY-2835C-00-00
Unavailable
11
. EMBLEM 2 (BLACK METALLIC X)
5VY-2835C-30-00
Unavailable
11
EMBLEM
5VY-2837C-10-00
Unavailable
12
. GRAPHIC 2 (DEEP PURPLISH BLUE METALLIC C)
5VY-28392-10-00
Unavailable
13
WASHER, SPECIAL 1
2TK-21757-00-00
Unavailable
14
HEAD
5PW-28386-00-00
Unavailable
15
PANEL, INNER 1
5VY-2836K-00-00
Unavailable
16
PANEL, INNER 2
5VY-2836L-00-00
Unavailable
17
HOOK 3
5VY-28494-00-00
Unavailable
18
RIVET(4PH)
90269-07077-00
Unavailable
19
RIVET
90269-06081-00
Unavailable
20
RIVET(4PH)
90269-07077-00
Unavailable
21
COVER ASSY, UNDER
5VY-Y2808-00-P0
Unavailable
21
COVER ASSY, UNDER
5VY-Y2808-00-P3
Unavailable
21
COVER ASSY, UNDER
5VY-Y2808-20-P1
Unavailable
23
GROMMET(4FM)
90480-12596-00
Unavailable
24
COLLAR
90387-06159-00
Unavailable
25
. SEAT 3
5VY-2848L-00-00
Unavailable
26
SEAT 5
5VY-2848N-00-00
Unavailable
27
DAMPER 5
5VY-2837J-00-00
Unavailable
28
DAMPER 6
5VY-2837K-00-00
Unavailable
29
SEAL
5VY-28307-00-00
Unavailable
30
EMBLEM, YAMAHA
5JJ-2153E-00-00
Unavailable
30
EMBLEM, YAMAHA
5JJ-2153E-10-00
Unavailable
31
COVER ASSY 2, UNDER (MAT BLACK 2) (DEEP RED METALLIC K)
5VY-Y2809-00-P0
Unavailable
31
COVER ASSY 2, UNDER (BLACK METALLIC X)
5VY-Y2809-00-P3
Unavailable
31
COVER ASSY 2, UNDER
5VY-Y2809-20-P1
Unavailable
33
GROMMET(4FM)
90480-12596-00
Unavailable
34
COLLAR
90387-06159-00
Unavailable
35
. SEAT 4
5VY-2848M-00-00
Unavailable
36
. SEAT 6
5VY-2848P-00-00
Unavailable
37
SEAL
5VY-28307-00-00
Unavailable
38
EMBLEM, YAMAHA
5JJ-2153E-00-00
Unavailable
38
EMBLEM, YAMAHA
5JJ-2153E-10-00
Unavailable
39
SEAT 7
5VY-2848R-00-00
Unavailable
40
BRACKET 1
5VY-2836A-00-00
Unavailable
41
BRACKET 2
5VY-2836E-00-00
Unavailable
43
BOLT
90109-06056-00
Unavailable
44
SCREW(4DN)
90149-06302-00
Unavailable
45
WASHER, SPECIAL 1
2TK-21757-00-00
Unavailable
46
HEAD
5PW-28386-00-00
Unavailable
47
PANEL, INNER 3
5VY-2836M-00-00
Unavailable
48
WASHER, SPECIAL 1
2TK-21757-00-00
Unavailable
49
HEAD
5PW-28386-00-00
Unavailable
50
COVER 7
5VY-2117V-00-00
Unavailable
51
GROMMET(4FM)
90480-12596-00
Unavailable
52
COLLAR
90387-06159-00
Unavailable
54
COVER 8
5VY-2117W-00-00
Unavailable
55
GROMMET(4FM)
90480-12596-00
Unavailable
56
COLLAR
90387-06159-00
Unavailable
58
BOLT
90111-06030-00
Unavailable
