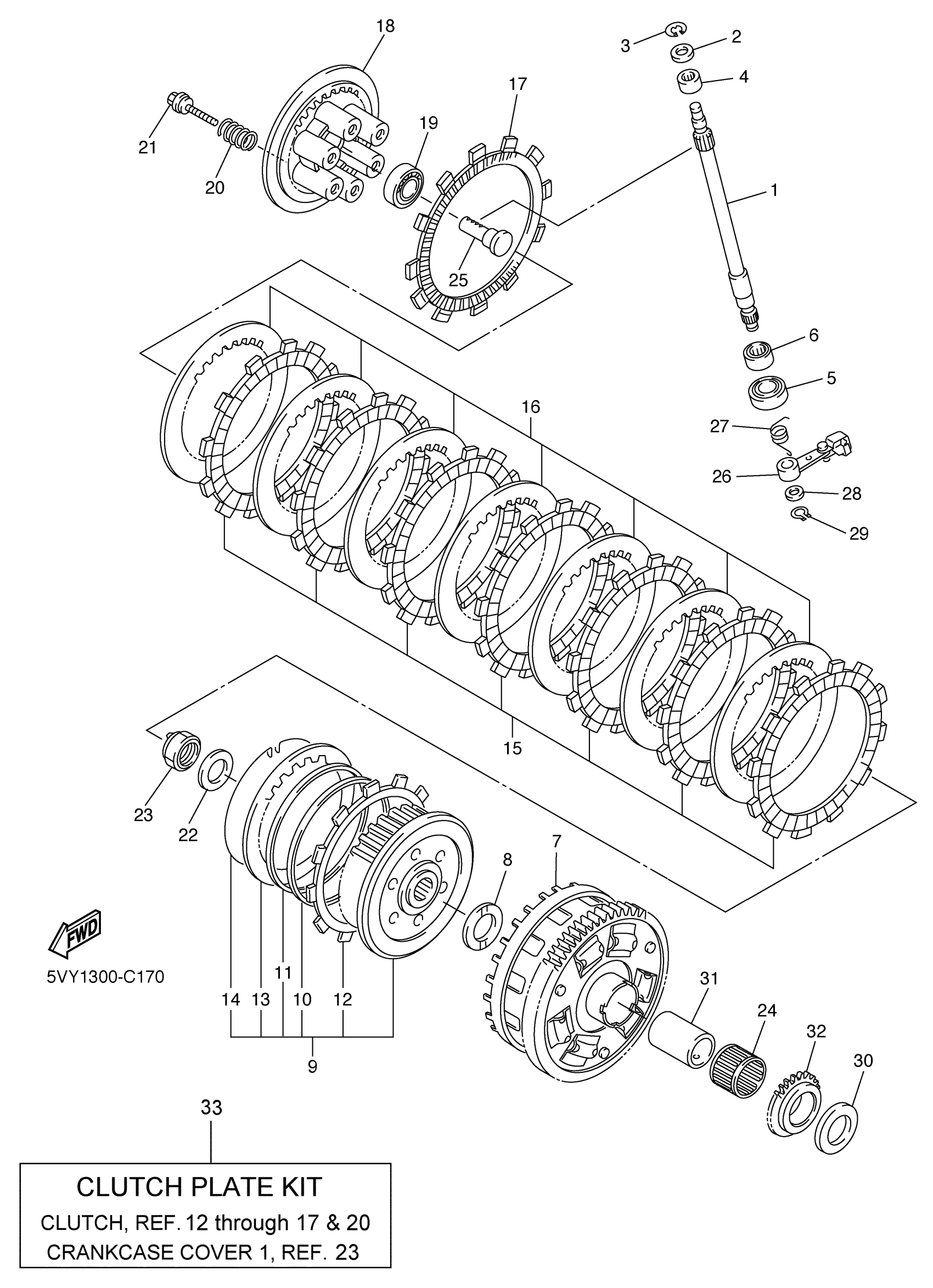

Yamaha YZFR1TC (YZFR1 CA) 5VYB 2005 CLUTCH Diagram

#

Description
Price

1

AXLE, PUSH LEVER

5VY-16382-00-00

Unavailable

2

WASHER(6TA)

92907-08600-00

$3.03

3

CIRCLIP

99080-07600-00

Unavailable

4

BEARING

93317-11096-00

$23.99

5

OIL SEAL (3X3)

93102-15212-00

$9.49

6

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

$36.99

7

PRIMARY DRIVEN GEAR COMP.

5VY-16150-00-00

Unavailable

8

PLATE, THRUST 1

5VY-16154-00-00

$17.49

9

CLUTCH BOSS ASSY

5VY-16370-01-00

Unavailable

10

PLATE, SEAT

5VY-16384-00-00

Unavailable

11

SPRING, CLUTCH BOSS

5VY-16383-00-00

$50.99

12

PLATE, FRICTION 2

5VY-16331-00-00

$25.99

13

PLATE, CLUTCH 2

5VY-16325-20-00

$11.99

14

RING, CLUTCH BOSS

4X7-16385-00-00

$5.49

15

PLATE, FRICTION

5VY-16321-00-00

$31.99

16

PLATE, CLUTCH 2

5VY-16325-20-00

$11.99

17

PLATE, FRICTION 2

5VY-16330-00-00

Unavailable

18

PLATE, PRESSURE 1

5VY-16351-00-00

Unavailable

19

BEARING(2JN)

93306-00315-00

Unavailable

20

SPRING, COMPRESSION

90501-230A0-00

Unavailable

21

SCREW, WITH WASHER

90159-06026-00

Unavailable

22

WASHER, CONICAL SPRING

90208-20001-00

Unavailable

23

NUT

90179-20022-00

Unavailable

24

BEARING

93310-232R9-00

Unavailable

25

ROD, PUSH 1

4XV-16356-01-00

Unavailable

26

PUSH LEVER ASSY

5VY-16340-00-00

Unavailable

27

SPRING, TORSION

90508-164B2-00

Unavailable

28

WASHER, PLATE

90201-10029-00

Unavailable

29

CIRCLIP(10W)

99009-10400-00

Unavailable

30

PLATE, THRUST 2

5VY-16164-00-00

Unavailable

31

SPACER 1

5VY-16181-00-00

Unavailable

32

SPROCKET, DRIVE

5VY-13354-00-00

Unavailable

33

CLUTCH PLATE KIT

1CA-W001G-00-00

Unavailable
