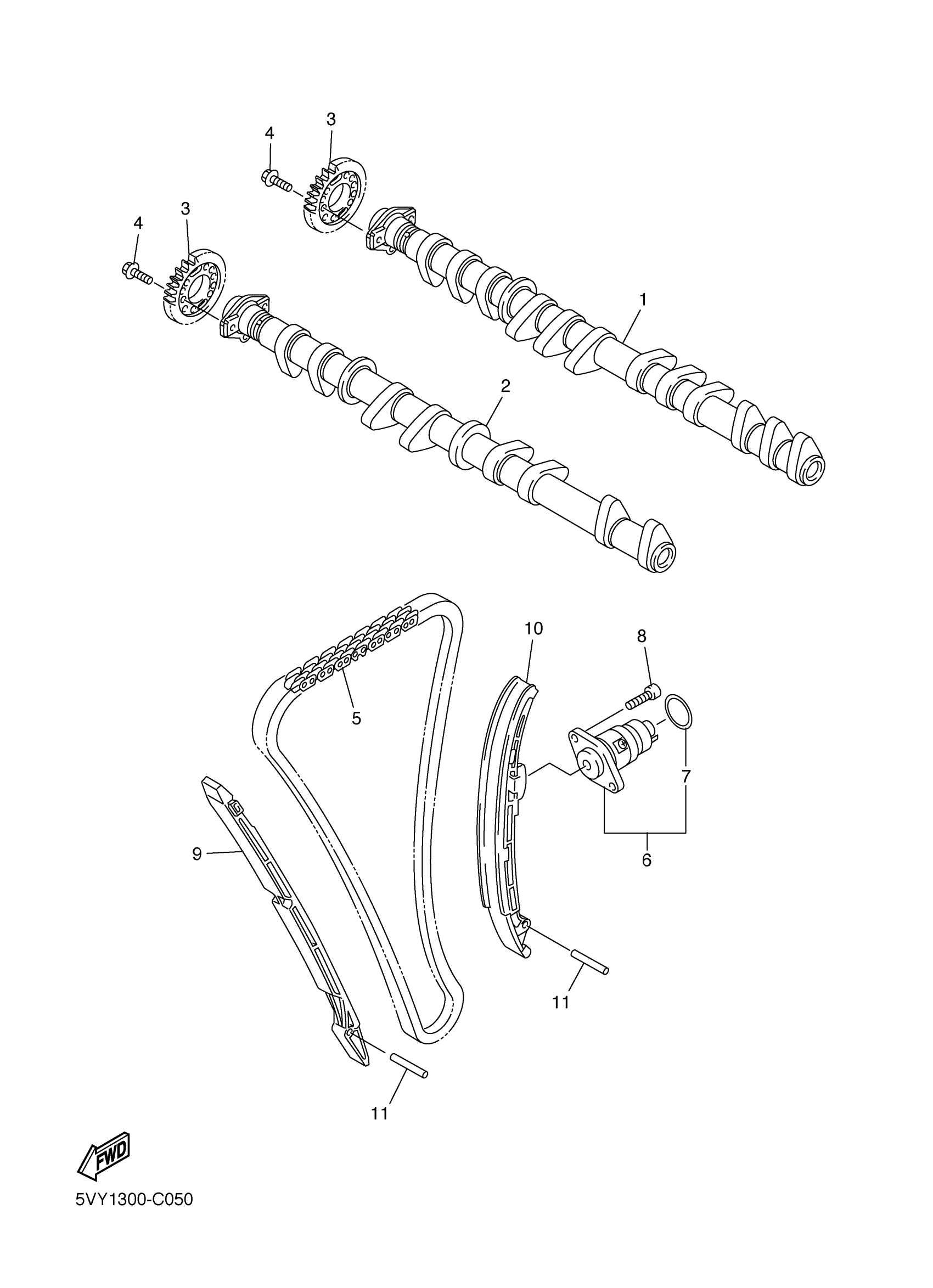

Yamaha YZFR1TC (YZFR1 CA) 5VYB 2005 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

5VY-12170-00-00

Unavailable

2

CAMSHAFT ASSY 2

5VY-12180-00-00

Unavailable

3

SPROCKET, CAM CHAIN

14B-12176-00-00

$82.07

4

BOLT, FLANGE

90105-07006-00

$5.84

5

CHAIN

94591-60122-00

$36.30

6

TENSIONER ASSY, CAM CHAIN

99999-04080-00

Unavailable

7

O-RING(1XX)

93210-26741-00

$5.39

8

BOLT,SOCKET HEAD

91314-06020-00

$1.91

9

DAMPER, CHAIN 1

5VY-12251-00-00

$36.30

10

DAMPER, CHAIN 2

5VY-12252-01-00

$115.51

11

PIN, DOWEL (8V8)

93607-44190-00

$13.30
