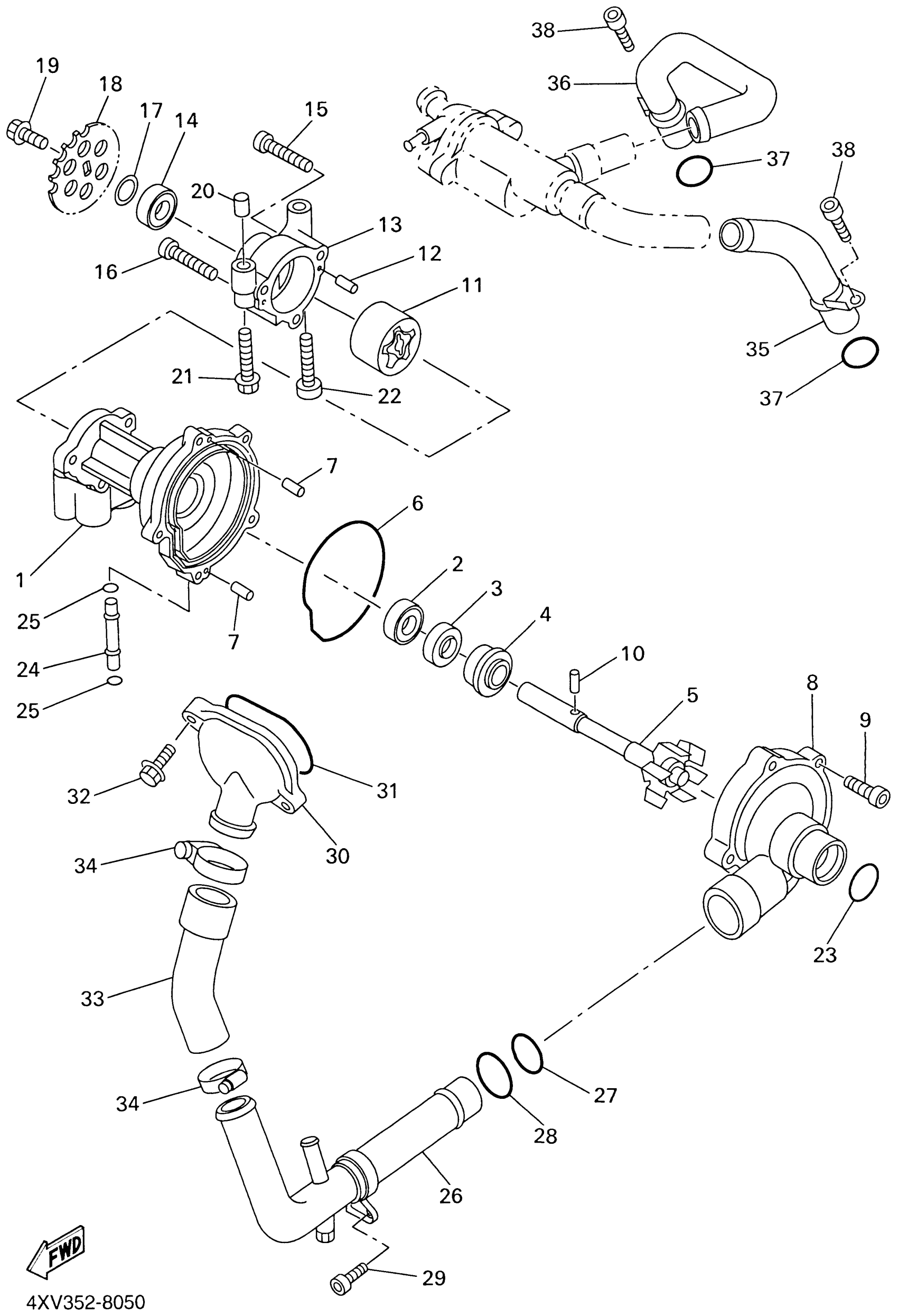

Yamaha YZFR1SNC (YZFR1 CA) 5JJG 2001 WATER PUMP Diagram
#
1
HOUSING, WATER PUMP
4XV-12421-00-00
Unavailable
5
IMPELLER SHAFT ASSY
4XV-12450-00-00
Unavailable
8
COVER, HOUSING
4XV-12422-00-00
Unavailable
13
HOUSING, ROTOR
4XV-13336-00-00
Unavailable
15
BOLT,SOCKET
91317-06035-00
Unavailable
16
BOLT,SOCKET
91317-06040-00
Unavailable
17
WASHER, PLATE (525)
90201-12541-00
Unavailable
18
SPROCKET, DRIVEN
4XV-13355-00-00
Unavailable
19
BOLT, WASHER BASED (4H7)
90105-06154-00
Unavailable
20
PIN, DOWEL
91808-30031-00
Unavailable
21
BOLT, FLANGE
95817-06045-00
Unavailable
22
BOLT,SOCKET
91317-06045-00
Unavailable
23
O-RING
93210-357A2-00
Unavailable
24
PIPE 5
4XV-12485-00-00
Unavailable
25
O-RING(26H)
93210-06667-00
Unavailable
26
PIPE 1
5JJ-12481-00-00
Unavailable
27
O-RING
93210-235A1-00
Unavailable
28
O-RING(1KT)
93210-27778-00
Unavailable
29
BOLT,SOCKET
91317-06012-00
Unavailable
30
JOINT 1
5JJ-12469-00-00
Unavailable
31
O-RING(52H)
93210-47675-00
Unavailable
32
. BOLT, FLANGE
95027-06020-00
Unavailable
33
HOSE 1
5JJ-12576-00-00
Unavailable
34
HOSE CLAMP ASSY(3GM)
90450-38040-00
Unavailable
35
PIPE 2
4XV-12482-00-00
Unavailable
36
PIPE 3
4XV-12483-00-00
Unavailable
37
O-RING (716)
93210-18417-00
Unavailable
38
BOLT,SOCKET
91317-06016-00
Unavailable
