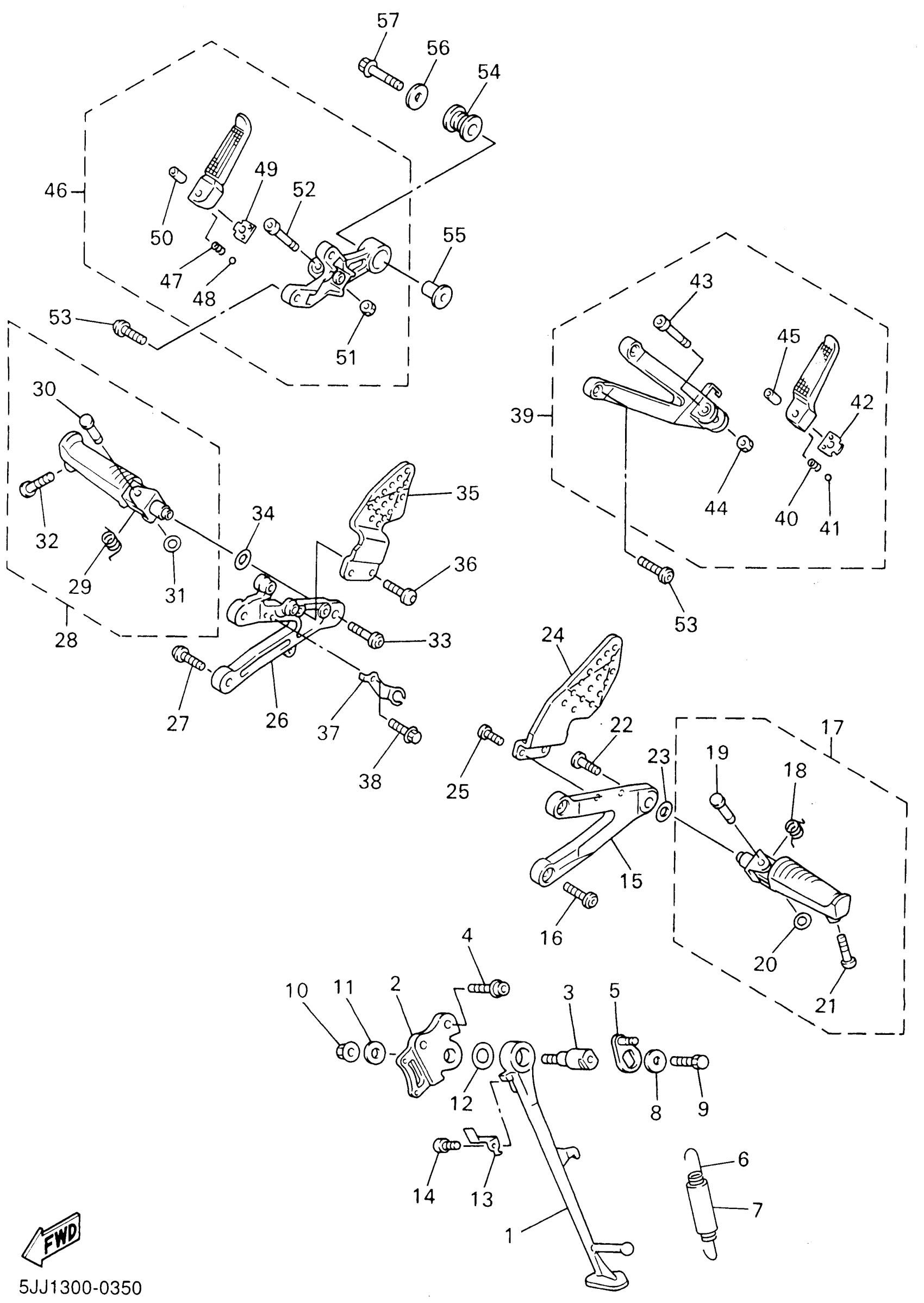

Yamaha YZFR1SNC (YZFR1 CA) 5JJG 2001 STAND FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

5EB-27311-00-00

Unavailable

2

BRACKET, SIDE STAND

5JJ-27321-00-00

Unavailable

3

GUIDE, SIDE STAND

4NX-27351-00-00

Unavailable

4

BOLT, HEXAGON SOCKET HEAD

90110-10026-00

$11.49

5

HOOK, SIDE STAND

5EB-27352-00-00

Unavailable

6

SPRING, TENSION

90506-18003-00

Unavailable

7

HOSE (L60)

90445-19002-00

$7.49

8

WASHER, PLATE(8AT)

90201-081R9-00

$9.49

9

BOLT, HEXAGON

97017-08020-00

$9.49

10

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

11

WASHER, PLATE(47X)

90201-101J1-00

$8.49

12

WASHER, PLATE (22F)

90201-146F9-00

$7.49

13

LINK, SIDE STAND

5JJ-27315-00-00

$9.99

14

BOLT,SOCKET

91317-06012-00

$8.49

15

BRACKET 2

5JJ-27442-00-00

Unavailable

16

BOLT

90109-085G6-00

Unavailable

17

FRONT FOOTREST ASSY (LEFT)

5JJ-27410-01-00

Unavailable

18

SPRING, TORSION

90508-18134-00

Unavailable

19

PIN(2AL)

90243-08029-00

Unavailable

20

WASHER, PLATE (214-27417-00)

90201-06042-00

Unavailable

21

BOLT

90109-08075-00

Unavailable

22

BOLT (3XF1)

90110-08220-00

Unavailable

23

WASHER, PLATE

90201-13008-00

Unavailable

24

PLATE 1

5JJ-27445-00-00

Unavailable

25

BOLT, BUTTON HEAD

92017-06012-00

Unavailable

26

BRACKET 3

5JJ-27443-00-00

Unavailable

27

BOLT

90109-085G6-00

Unavailable

28

FRONT FOOTREST ASSY (RIGHT)

5JJ-27420-01-00

Unavailable

29

SPRING, TORSION

90508-18135-00

Unavailable

30

PIN(2AL)

90243-08029-00

Unavailable

31

WASHER, PLATE (214-27417-00)

90201-06042-00

Unavailable

32

BOLT (3XF1)

90110-08220-00

Unavailable

33

BOLT (3XF1)

90110-08220-00

Unavailable

34

WASHER, PLATE

90201-13008-00

Unavailable

35

PLATE 2

5JJ-27446-00-00

Unavailable

36

BOLT, BUTTON HEAD

92017-06012-00

Unavailable

37

STAY, STOP SWITCH

3XV-2144G-00-00

Unavailable

38

BOLT, FLANGE

95817-06008-00

Unavailable

39

REAR FOOTREST ASSY 1

5JJ-27430-01-00

Unavailable

40

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

41

BALL

93501-04011-00

Unavailable

42

WASHER, SPECIAL

5JJ-27437-01-00

Unavailable

43

BOLT, SOCKET

91314-06035-00

Unavailable

44

NUT, U FLANGE

95604-06200-00

Unavailable

45

COLLAR (8H9)

90387-06697-00

Unavailable

46

REAR FOOTREST ASSY 2

5JJ-27440-01-00

Unavailable

47

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

48

BALL

93501-04011-00

Unavailable

49

WASHER, SPECIAL

5JJ-27437-01-00

Unavailable

50

COLLAR (8H9)

90387-06697-00

Unavailable

51

NUT, U FLANGE

95604-06200-00

Unavailable

52

BOLT, SOCKET

91314-06035-00

Unavailable

53

BOLT

90109-085G6-00

Unavailable

54

DAMPER, FOOTREST 2

36Y-27424-01-00

Unavailable

55

COLLAR

90387-10001-00

Unavailable

56

WASHER, PLATE (2H7)

90201-10669-00

Unavailable

57

BOLT, FLANGE

90105-10022-00

Unavailable
