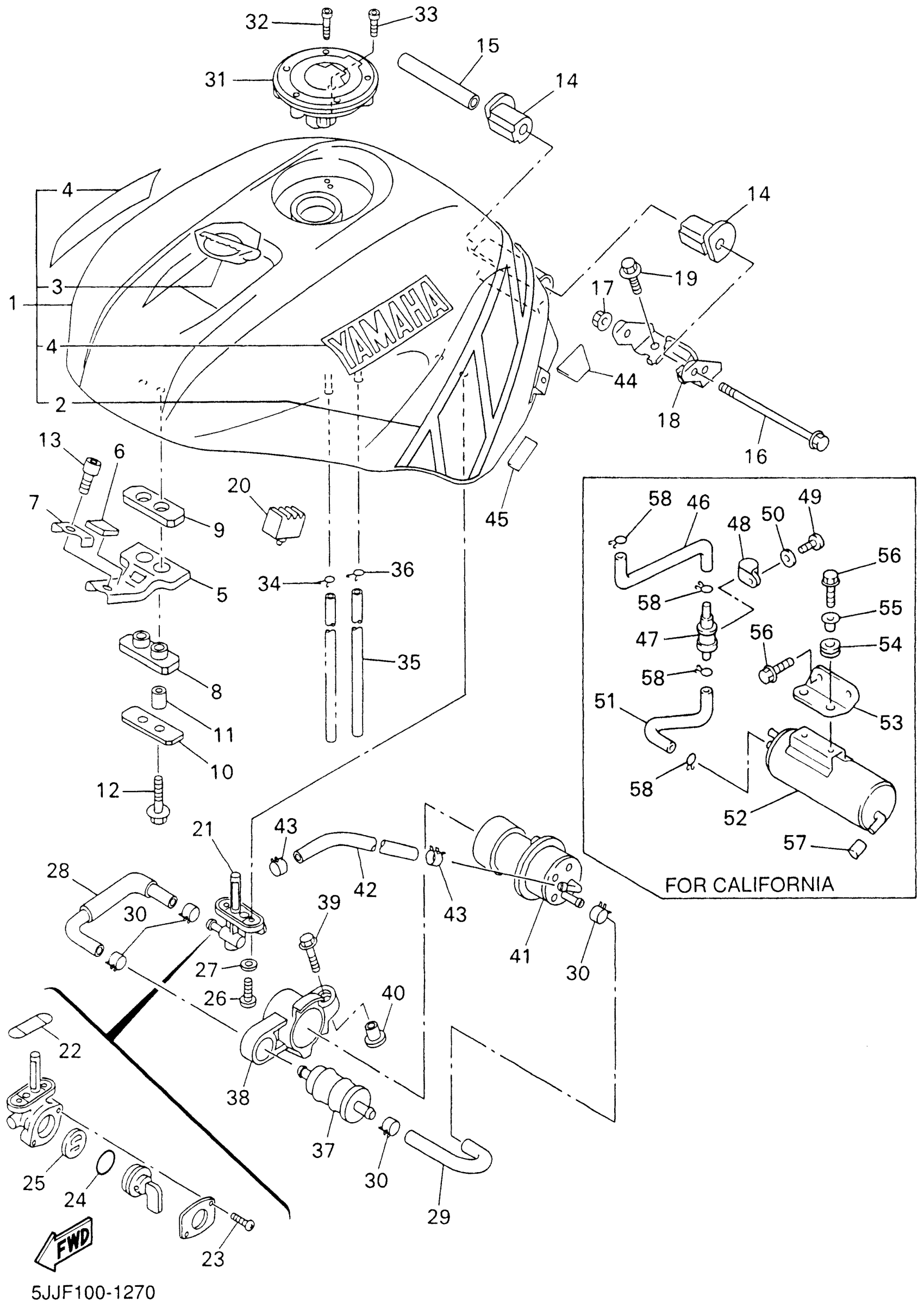

Yamaha YZFR1SNC (YZFR1 CA) 5JJG 2001 FUEL TANK Diagram
#
1
FUEL TANK COMP. (BLUISH WHITE COCKTAIL 1) (DEEP PURPLISH BLUE METALLIC C)
5JJ-Y2410-30-08
Unavailable
2
. GRAPHIC, FUEL TANK 1
5JJ-24244-00-00
Unavailable
3
. EMBLEM 1
5MT-24161-00-00
Unavailable
4
. EMBLEM, YAMAHA
5JJ-2153A-00-00
Unavailable
5
BRACKET, FUEL TANK 1
5JJ-24191-00-00
Unavailable
6
DAMPER 5
1AE-2837J-00-00
Unavailable
7
WASHER, SPECIAL
5JJ-24186-00-00
Unavailable
8
DAMPER, LOCATING 1
2GH-24181-00-00
Unavailable
9
DAMPER, LOCATING 3
2GH-24183-00-00
Unavailable
10
WASHER, SPECIAL
5JJ-24187-00-00
Unavailable
11
COLLAR
90387-06006-00
Unavailable
14
DAMPER, LOCATING 1
4YR-24181-00-00
Unavailable
15
COLLAR
90387-06007-00
Unavailable
16
BOLT, FLANGE
95817-06110-00
Unavailable
17
NUT,SELF-LOCKING
95607-06200-00
Unavailable
18
BRACKET, TANK FITTING
5JJ-21348-00-00
Unavailable
19
BOLT, HEXAGON
97017-06016-00
Unavailable
20
DAMPER, LOCATING 3
4XV-24183-00-00
Unavailable
21
FUEL COCK ASSY 1
4KM-24500-20-00
Unavailable
22
O-RING
4X8-24512-00-00
Unavailable
23
SCREW, PAN HEAD(3AC)
98517-03008-00
Unavailable
24
SEAL, COCK
3AJ-24534-01-00
Unavailable
25
VALVE PACKING
3AC-24523-00-00
Unavailable
26
SCREW 256241430000
90149-06011-00
Unavailable
27
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
28
PIPE, FUEL 1
4XV-24311-00-00
Unavailable
29
PIPE 2
4XV-24312-00-00
Unavailable
30
CLIP(3YX)
90467-13133-00
Unavailable
31
CAP ASSY
39P-24602-00-00
Unavailable
32
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
33
BOLT, SOCKET
91317-05010-00
Unavailable
34
CLIP
90467-090A2-00
Unavailable
35
HOSE (L950)
90445-10015-00
Unavailable
36
CLIP
90467-090A2-00
Unavailable
37
FILTER ASSY
1FK-24560-10-00
Unavailable
38
BAND 1
4XV-24398-01-00
Unavailable
39
BOLT, WITH WASHER (30X)
90119-06096-00
Unavailable
40
COLLAR(42G)
90387-062L2-00
Unavailable
41
FUEL PUMP COMP.
4SV-13907-03-00
Unavailable
42
HOSE (L200)
90445-142K2-00
Unavailable
43
CLIP(3YX)
90467-13133-00
Unavailable
44
SEAL 1
3SP-21732-00-00
Unavailable
45
DAMPER
5H0-8235Y-M0-00
Unavailable
46
PIPE 3
4XV-24313-01-00
Unavailable
47
ROLL OVER VALVE ASSY
25H-24180-00-00
Unavailable
48
CLAMP
90464-15014-00
Unavailable
49
SCREW, PAN
98517-05012-00
Unavailable
50
WASHER(1RW)
92907-05600-00
Unavailable
51
PIPE 4
4XV-24314-00-00
Unavailable
52
CANISTER ASSY
4XV-24170-00-00
Unavailable
53
BRACKET, CANISTOR
4XV-2419F-00-00
Unavailable
54
GROMMET (1E5)
90480-13163-00
Unavailable
55
COLLAR(42G)
90387-062L2-00
Unavailable
56
BOLT, WASHER BASED(JA9)
90105-06696-00
Unavailable
57
HOSE (L70)
90445-112E0-00
Unavailable
58
CLIP
90467-100A1-00
Unavailable
