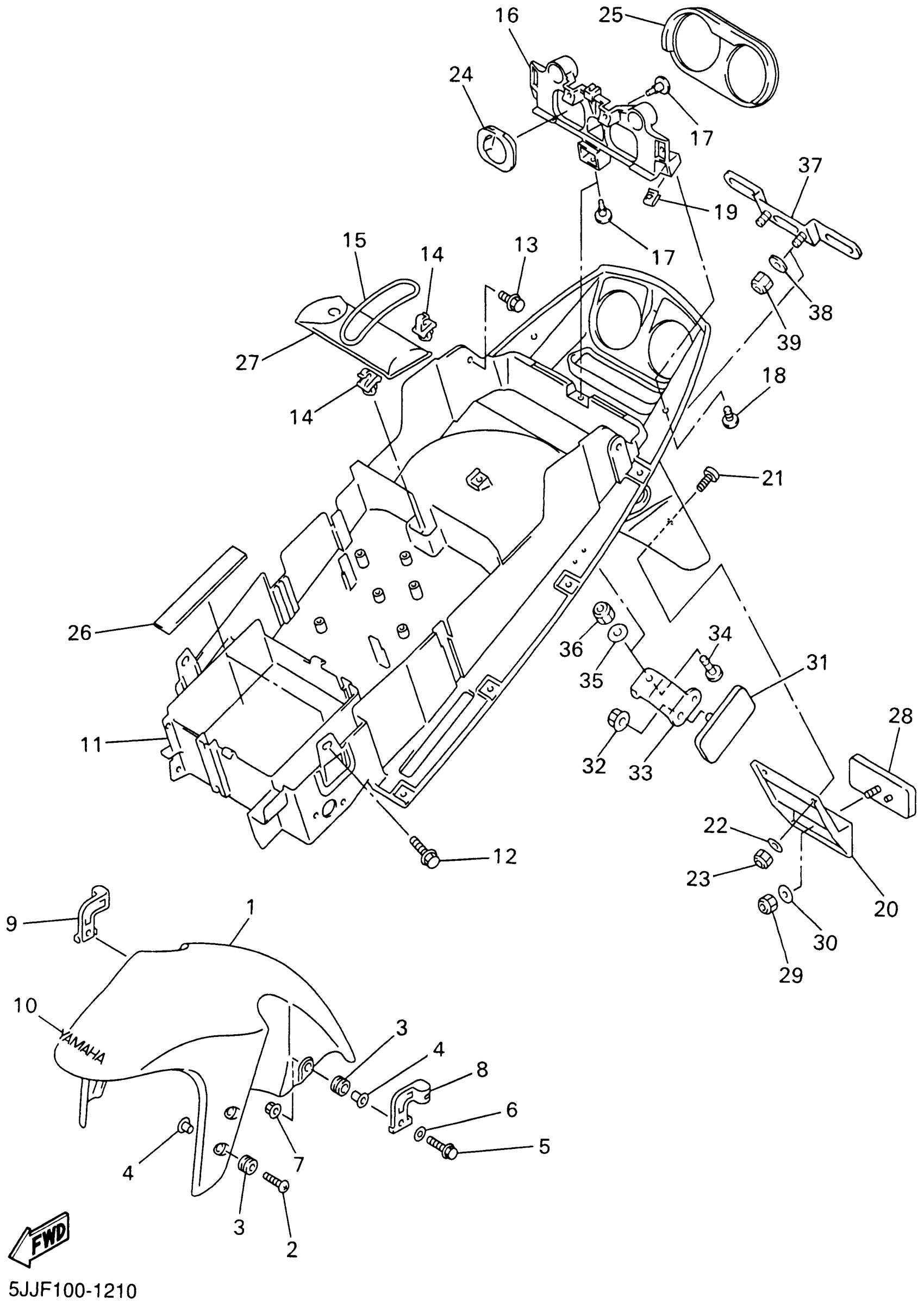

Yamaha YZFR1SNC (YZFR1 CA) 5JJG 2001 FENDER Diagram
#
1
FENDER, FRONT (YAMAHA BLACK) (DEEP PURPLISH BLUE METALLIC C)
4XV-21511-01-33
Unavailable
8
HOLDER, BRAKE HOSE 1
4XV-25875-00-00
Unavailable
9
HOLDER, BRAKE HOSE 2
4XV-25876-00-00
Unavailable
15
BAND, TOOL
4XV-21376-00-00
Unavailable
16
BRACKET, TAILLIGHT
5JJ-2117E-00-00
Unavailable
17
RIVET(4PH)
90269-07077-00
Unavailable
18
SCREW, BINDING (10V)
90154-05013-00
Unavailable
19
NUT, SPRING(3GM)
90183-05061-00
Unavailable
20
BRACKET, REFLECTOR 1
4XV-85132-00-00
Unavailable
21
SCREW(3HE)
90149-04278-00
Unavailable
22
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
23
NUT, U (7LY)
95617-04100-00
Unavailable
24
COVER, TAILLIGHT
5JJ-2172X-00-00
Unavailable
25
SEAL
5JJ-21669-01-00
Unavailable
26
DAMPER (L.H)
1AE-2834E-00-00
Unavailable
27
TOOL KIT
4XV-28100-00-00
Unavailable
28
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
29
NUT, U
95617-05100-00
Unavailable
30
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
31
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
32
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
33
BRACKET, REAR STAY
4XV-21688-00-00
Unavailable
34
SCREW(3HE)
90149-04278-00
Unavailable
35
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
36
NUT, U (7LY)
95617-04100-00
Unavailable
37
BRACKET, LICENSE
5JJ-84751-00-00
Unavailable
38
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
39
NUT, SELF-LOCKING
95617-06100-00
Unavailable
