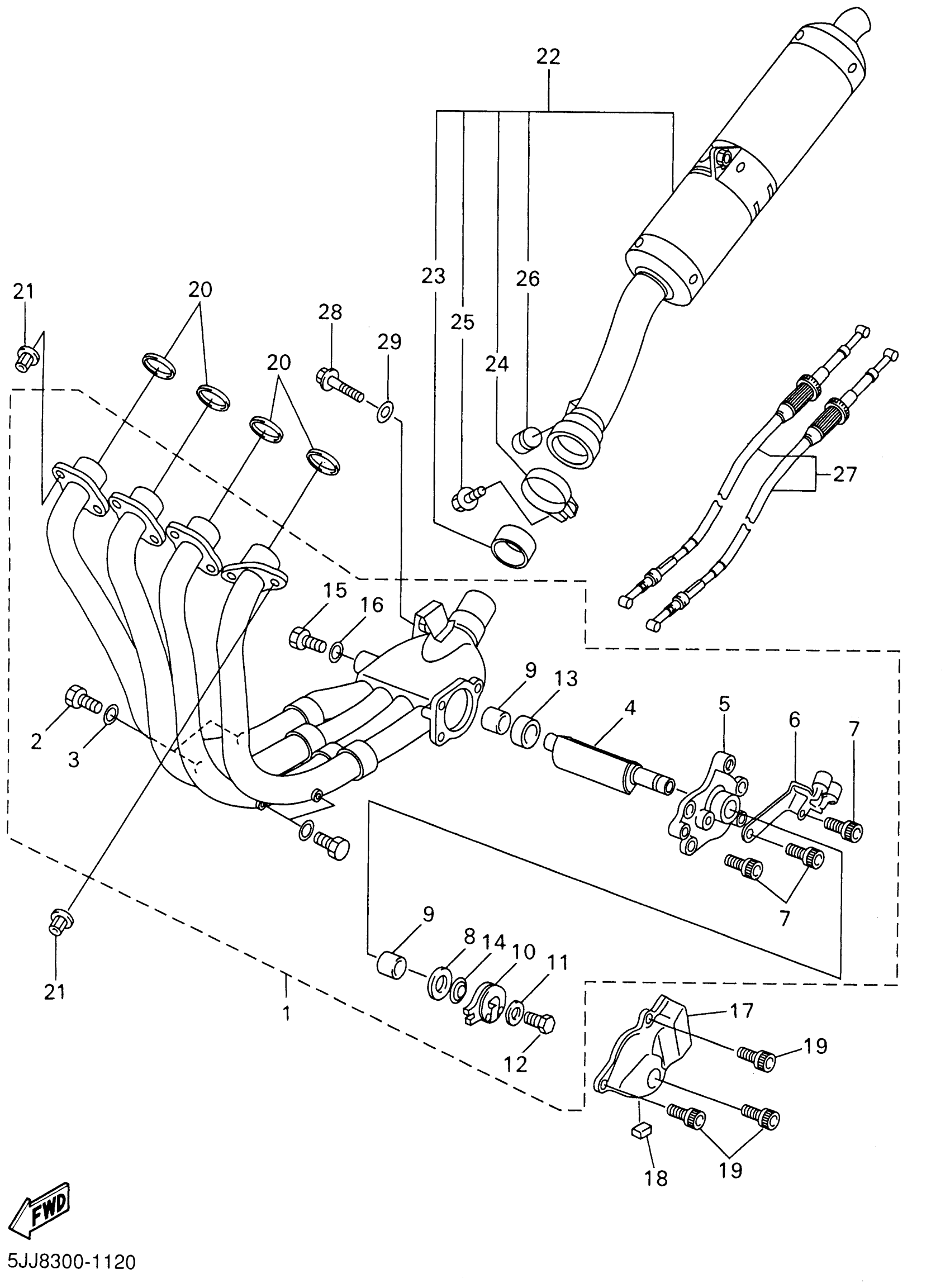

Yamaha YZFR1SNC (YZFR1 CA) 5JJG 2001 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY

5JJ-14610-00-00

Unavailable

2

BOLT (FJ1)

97080-06008-00

$2.34

3

WASHER, PLAIN (646)

92990-06600-00

$2.80

4

. ARM, SHAFT (VALVE)

4SV-14821-00-00

Unavailable

5

HOUSING

5JJ-14811-00-00

Unavailable

6

. BRACKET

2TK-14867-01-00

Unavailable

7

BOLT, WITH WASHER(1FK)

90119-06115-00

$4.19

8

WASHER, PLATE(3GM)

90201-106M5-00

$10.49

9

COLLAR

4SV-14638-00-00

Unavailable

10

PULLEY

2TK-14865-01-00

Unavailable

11

WASHER, PLATE(3GM)

90201-050T4-00

$4.77

12

BOLT, HEXAGON

97095-05012-00

$1.11

13

COLLAR(3FH)

90387-106U7-00

Unavailable

14

SPRING, HOOK

5PW-14683-00-00

$7.99

15

BOLT,SOCKET

91380-04006-00

$0.69

16

WASHER, PLAIN (646)

92990-04600-00

Unavailable

17

PROTECTOR, EXHAUST

5JJ-14826-00-00

Unavailable

18

DAMPER, LOCATING 1

3MA-24181-00-00

Unavailable

19

BOLT, WITH WASHER(2TK)

90119-06187-00

Unavailable

20

GASKET, EXHAUST PIPE

4FM-14613-00-00

Unavailable

21

NUT (22U)

90179-08410-00

Unavailable

22

MUFFLER ASSY 1

5JJ-14710-11-00

Unavailable

23

GASKET, MUFFLER

4XV-14714-00-00

Unavailable

24

. BAND, MUFFLER

5JJ-14715-00-00

Unavailable

25

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

26

DAMPER, LOCATING 1

4FM-24181-00-00

Unavailable

27

CABLE PULLEY ASSY

4XV-1130E-01-00

Unavailable

28

BOLT, FLANGE

95817-08040-00

Unavailable

29

WASHER, PLATE (1A0)

90201-08612-00

Unavailable
